Large capacity wood carbonization furnace bamboo saw stick carbonization equipment coconut shell carbonization furnace

Large Capacity Wood Carbonization Furnace Bamboo Saw Stick Carbonization Equipment Coconut Shell Carbonization Furnace

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCT OVERVIEW

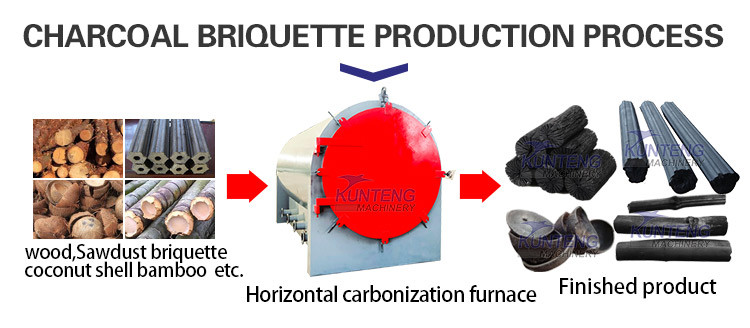

Carbonization Process: Feeding raw material and sealing the furnace→Preheating and drying the raw material → Anaerobic carbonization →Cooling and discharging the carbon.

DETAILS DISPLAY

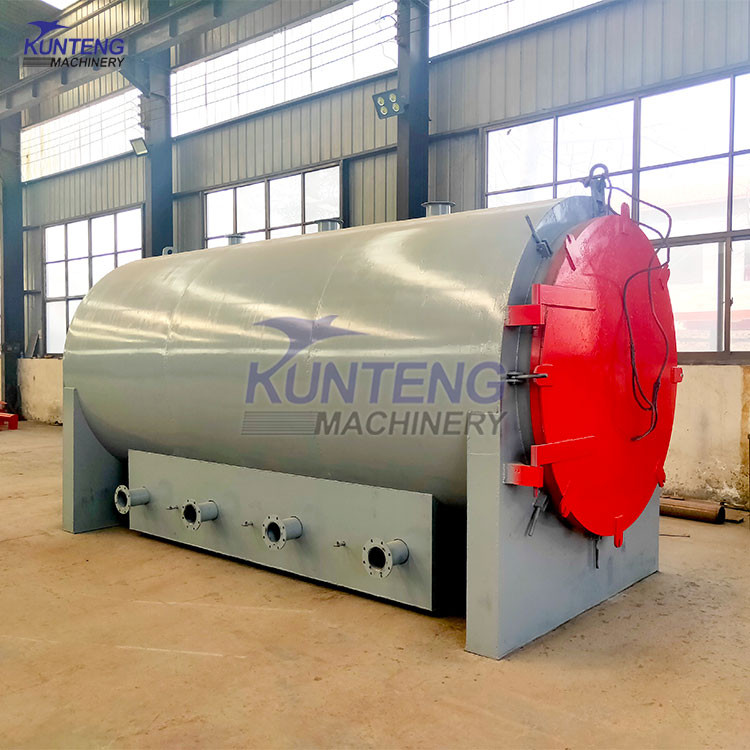

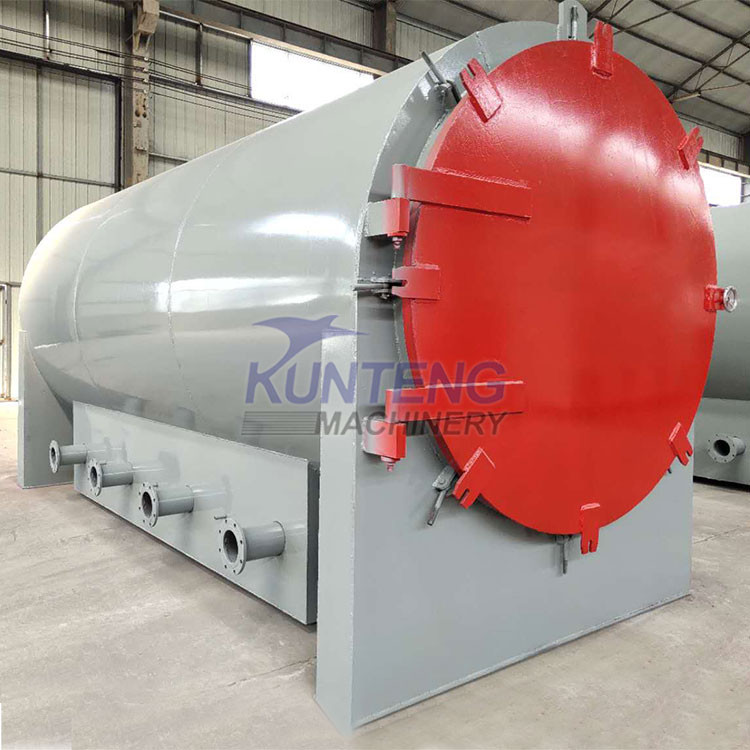

GREEN CHARCOAL MACHINE

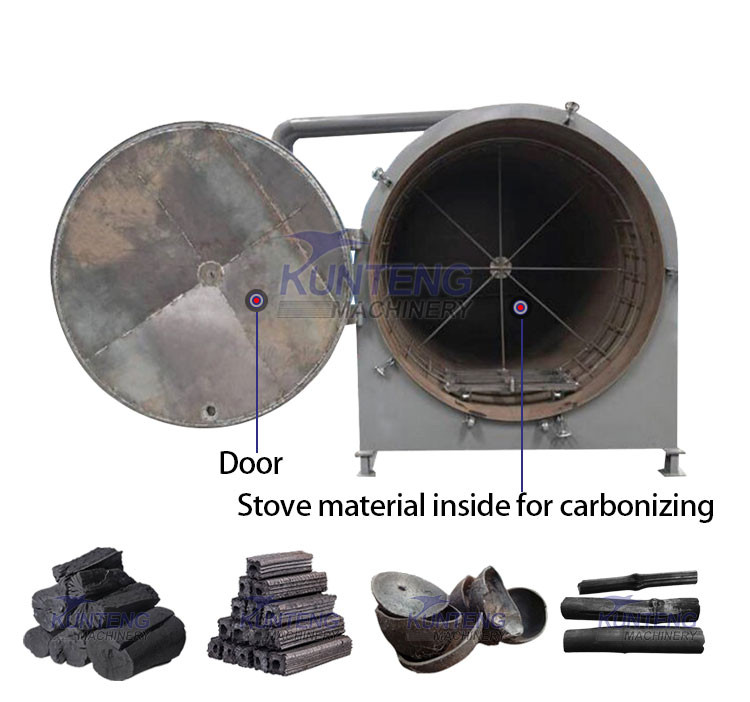

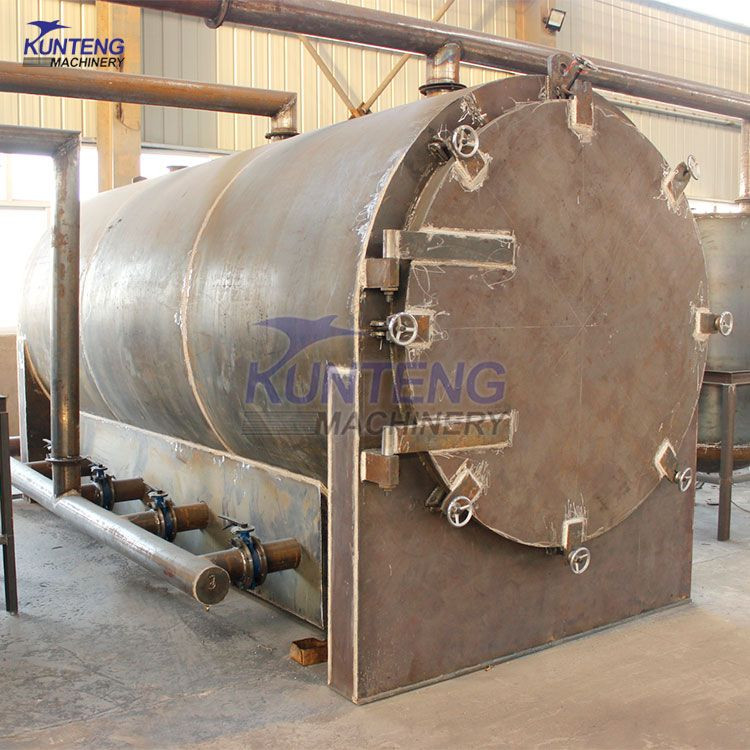

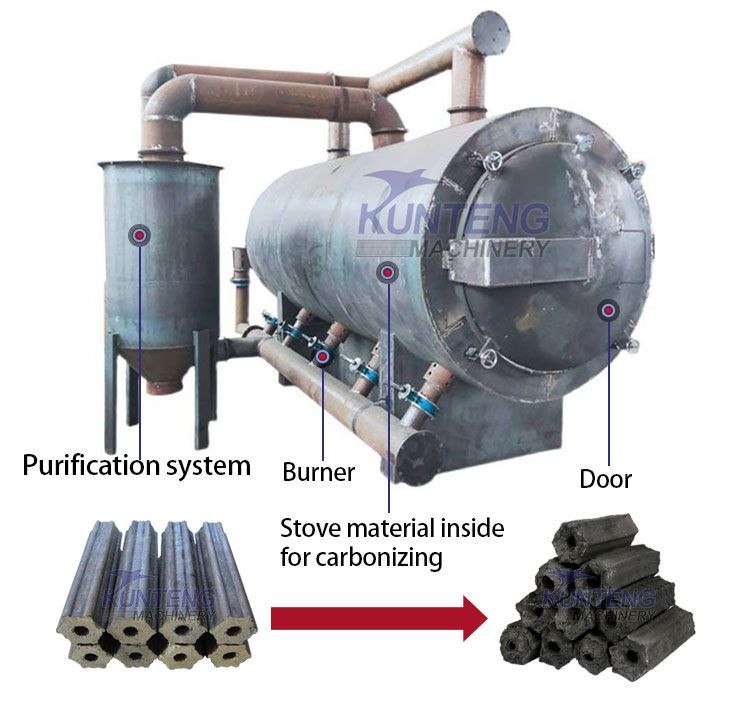

Green charcoal machine, Carbonization furnace and drum kiln charcoal making are made by horizontal manufacturing process, in which there is a three-layer structure with polyurethane insulation material in the middle to keep the temperature inside the furnace. The door of the furnace is sealed with filler, which does not enter the air, and the carbon output is much higher than that of the conventional charring furnace. It is called green carbonization furnace because the carbonizing process produces a lot of yellowish combustible gases from the sticks. These gases pass through the charring furnace with its own pipeline, which allows the combustible gases to be transferred to the charring furnace combustion area for secondary fire heating. It is more environmentally friendly and saves fuel. Excess gas from the charring furnace can be used to dry sawdust or to fire the boiler. The cooling time of the charring furnace is shorter, we use the gap between the intermediate layers to naturally cool the charring furnace with unit water cooling, which is more efficient and convenient.

Green charcoal machine, Carbonization furnace and drum kiln charcoal making can use different material as heating source.Such as the waste wood, coal, gas, natural gas, liquefied gas, combustible gas(produced during the carbonized process)

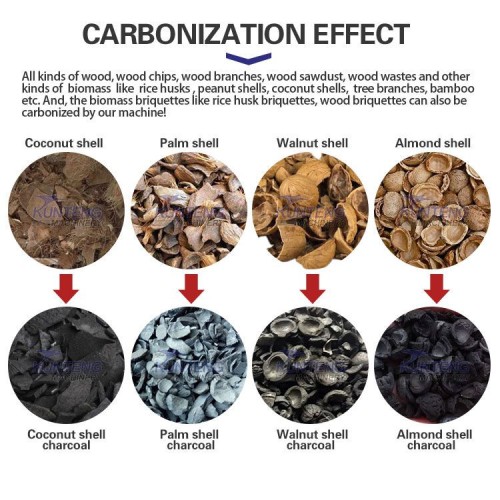

Peanut shell, Palm shell, Wood log, Coconut shell, sawdust, bamboo or other biomass can be carbonized into peanut shell, palm shell charcoal, coconut shell charcoal, bamboo charcoal, sawdust charcoal, biomass charcoal by carbonization equipment.

Raw materials of green charcoal machine, Carbonization furnace and drum kiln charcoal making can be peanut shell, coconut shell, wood, biomass, some crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallet, sawdust, shavings, wood chips, fruit wood, rice husk, corncob, peanut shell, furfural residue, palm shell, semi-coke and etc.

We could customize reasonable and efficient production line according to customers site, raw materials, output and other requirements.

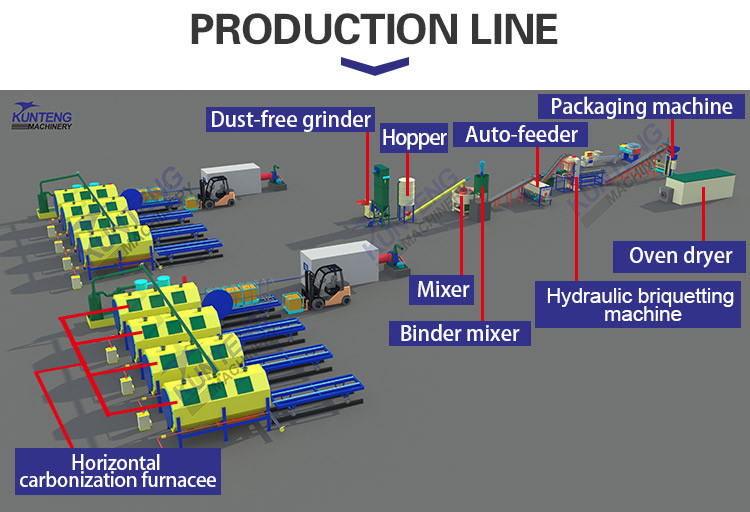

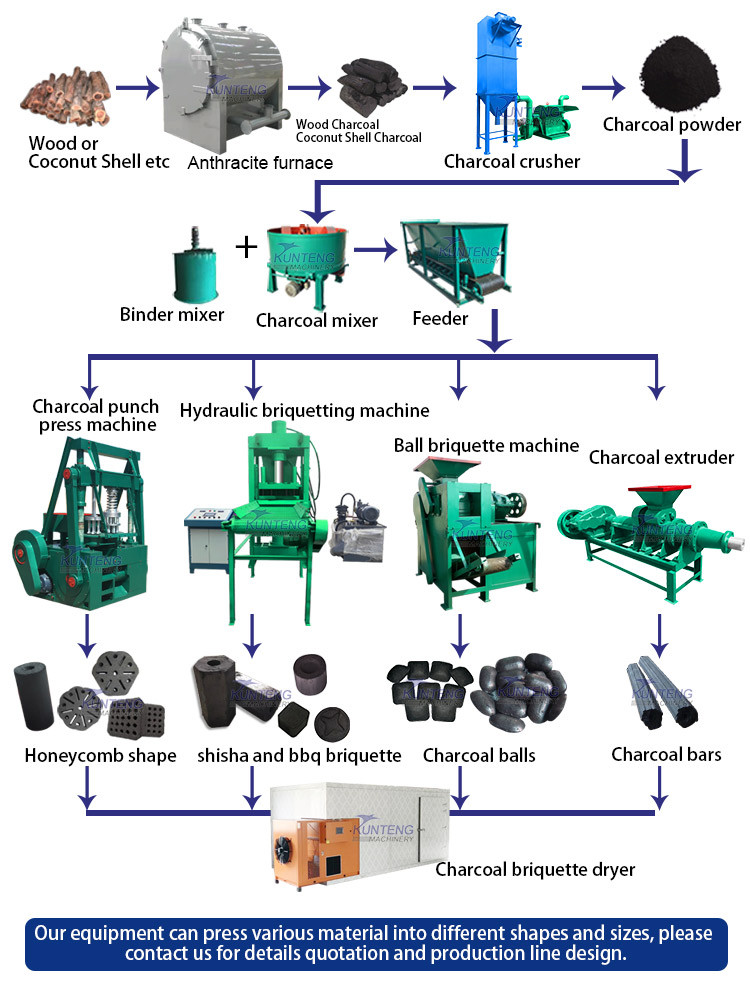

Firstly, palm shell, coconut shell, wood, bamboo and other biomass are carbonized into charcoal by carbonization furnace and enter hoister and storage tank. According to customers raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace.
Secondly, charcoal can be crushed into charcoal powder by dust-free grinder.
Thirdly, charcoal powder are stirred by double shaft mixer and mixer.

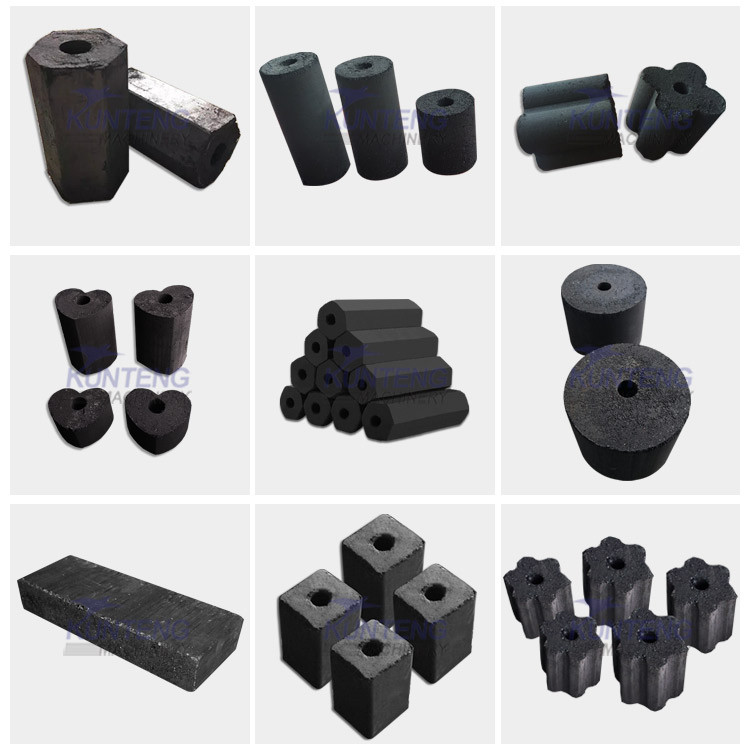

In the end, charcoal powder can be formed into ball, cylinder, tables and cubic by briquette machine and enter the dryer by drying.
The whole green charcoal machine, Carbonization furnace and drum kiln charcoal making production line are fully automatic.

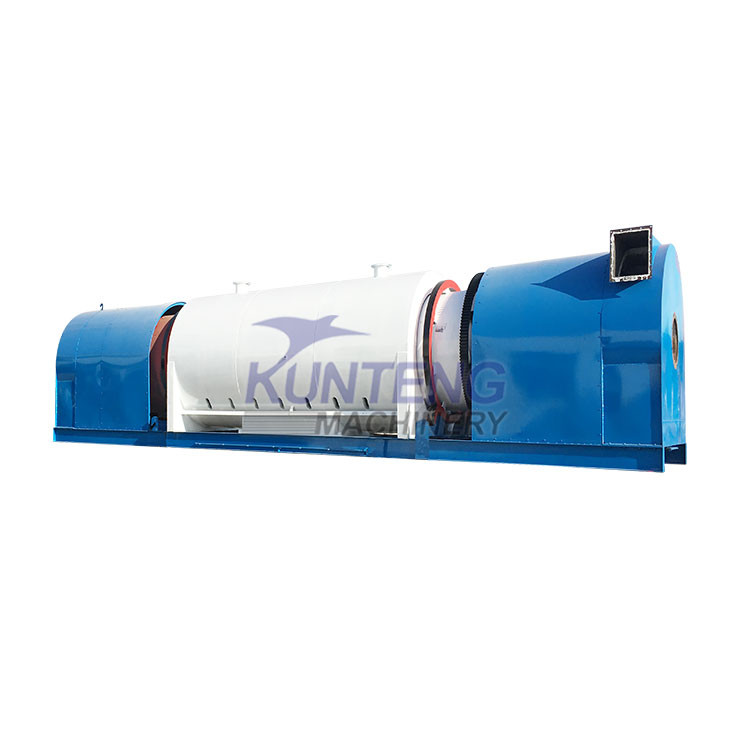

CONTINUOUS CARBONIZATION FURNACE

Continuous carbonation machine uses the carbonized flue gas purification into combustible gas generated in combustion itself. it can continuous product 24 hours. It has an advantages of zero pollution, zero emission, save labor, high capacity, energy-saving consumption, the high degree of automation and advanced technology. Which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high efficiency advantages. This machine is suitable for all kinds of forestry and agriculture powder particles.

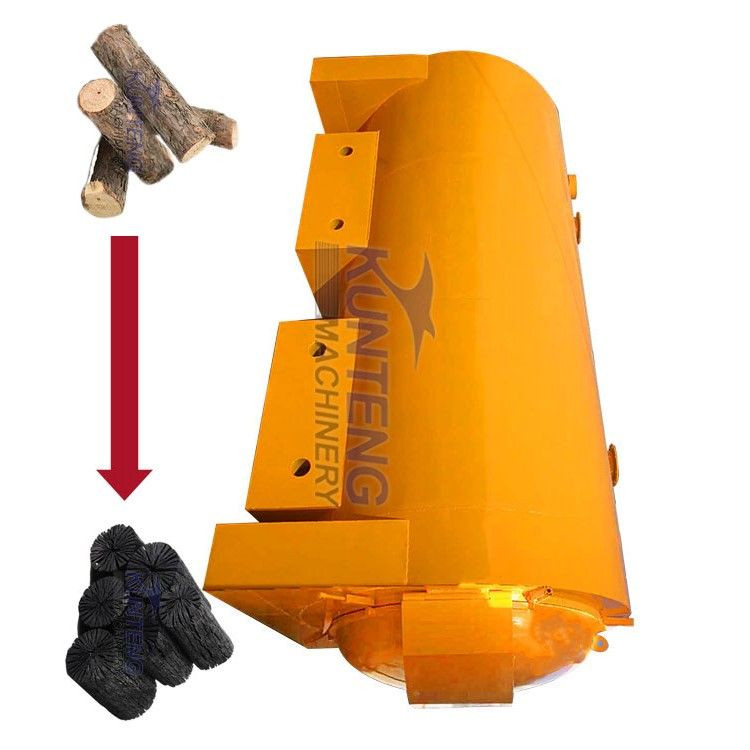

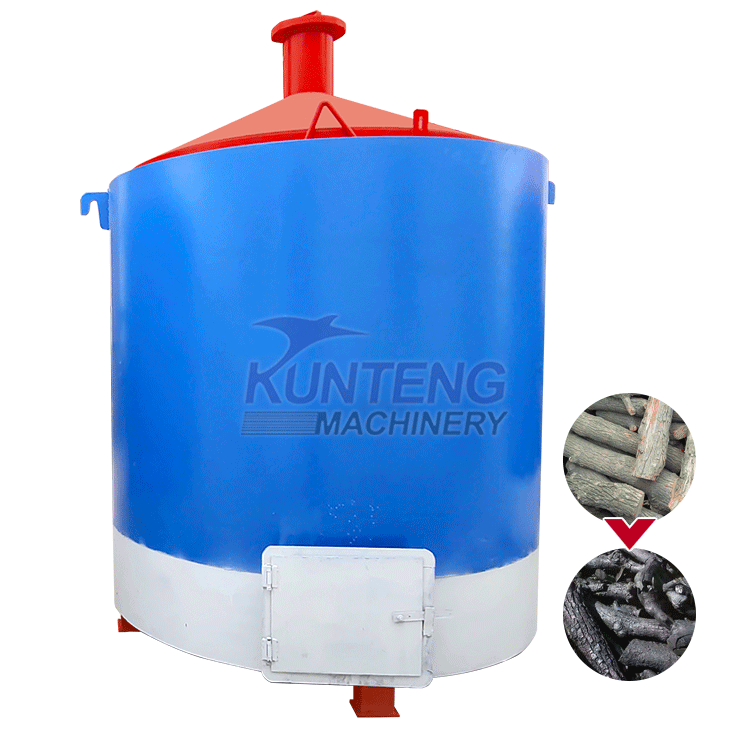

HOISTING CARBONIZATION FURNACE

Hoisting carbonization furnace are composed of carbonization furnace body, furnace cover, inner tank, cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device and thermometer. The furnace adopts the principle of anaerobic dry distillation to remove the volatile substances in the biomass and achieve the purpose of biomass carbonization. Carbonization process through: charging sealing furnace, preheat drying, anaerobic carbonization and cooling out carbon four steps to complete.

CUSTOMER SITES

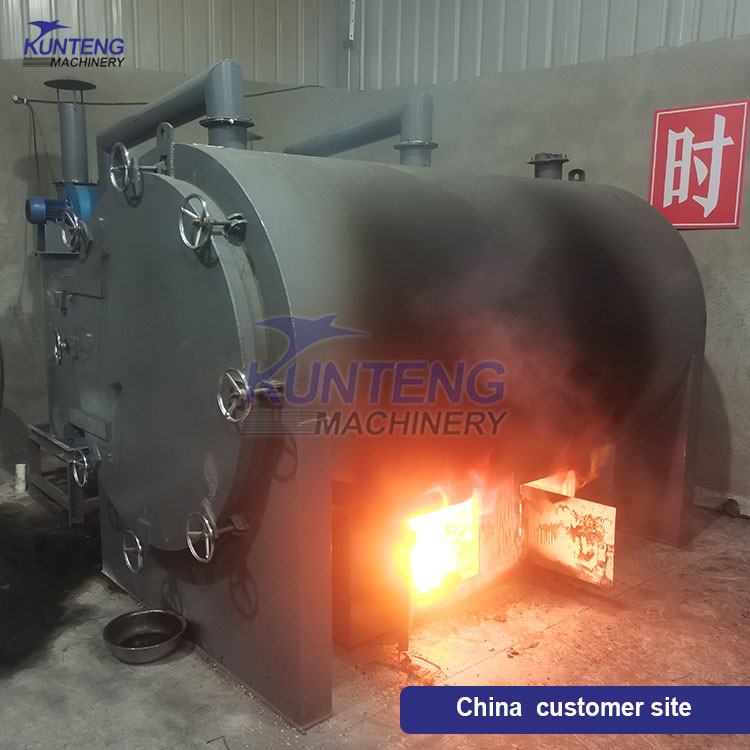

Green charcoal machine customer site

Our team have more than 20 years export experience for carbonization furnace production line. We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

PARAMETER

TYPE	SIZE	CAPACITY(kg)	GROSS WEIGHT(kg)	THICKNESS OF STEEL
KT1500-1000	1.5*φ1m	700	400	6mm
KT1500-1200	1.5*φ1.2m	850	500	6mm
KT1500-1400	1.5*φ1.4m	1000	700	6mm
KT1500-1700	1.5*φ1.7m	1600	1000	8mm
KT2000-1700	2*φ1.7m	2200	1300	8mm
KT3000-1500	3*φ1.5m	3100	2500	12mm
KT3000-1700	3*φ1.7m	4000	2700	12mm
KT3000-1700	4.5*φ1.7m	6300	3200	12mm
KT4500-2000	4.5*φ2m	9600	3700	12mm

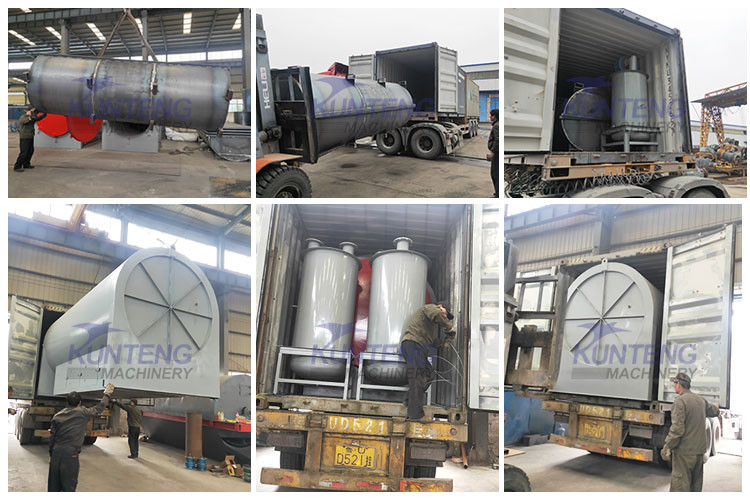

PACKING & SHIPPING

The plastic film bag wrapped machine, according to the size and weight to make wood case, put machine in and fixed the box after loading. (The box material can be made as your requirements) The carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

COMPANY PROFILE

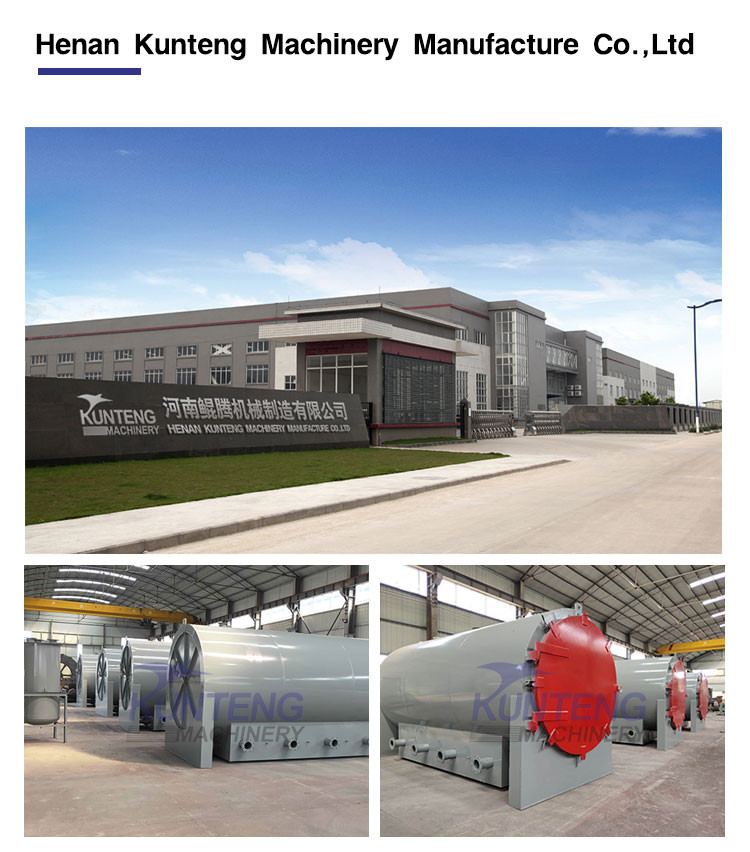

Henan KUNTENG Machinery Manufacture Co.,Ltd is specilize in producing briquette machine, there are many useless material in the world, our machine can make these material recycling use, and make high profit for user. Our equipment can make charcoal or briquette from waste material. Since our companys inception, has high credibility. And we help customers design the best quality product line for different types machine. Our machine sold at home and abroad. We supply those certifications like CE ISO9001, CO, Form E, COC, CIQ, to help customers from different countries clearance.

KUNTENG Group Advantage:
1. Over 100 employees, 98% professional technical personnel;
2. Factory size over 10,000 square meters;

3. Exported over 80 countries, 300 global partners;
4. Customize Production Line;

5. More than 20 years experience for charcoal briquette machine production line.

KUNTENG Group Service Items

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
