Waste Metal Plastic Shredder Machine Waste Furniture Crusher Machine Shredder for Tires

Waste Metal Plastic Shredder Machine Waste Furniture Crusher Machine Shredder For Tires

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCT DESCRIPTION

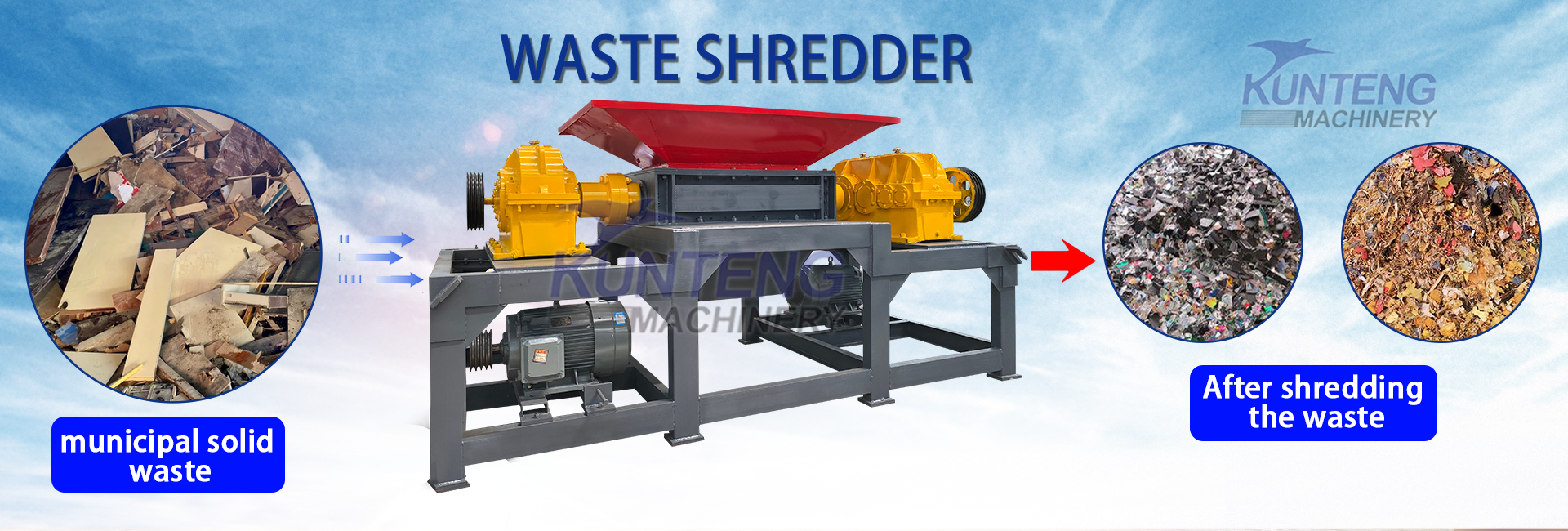

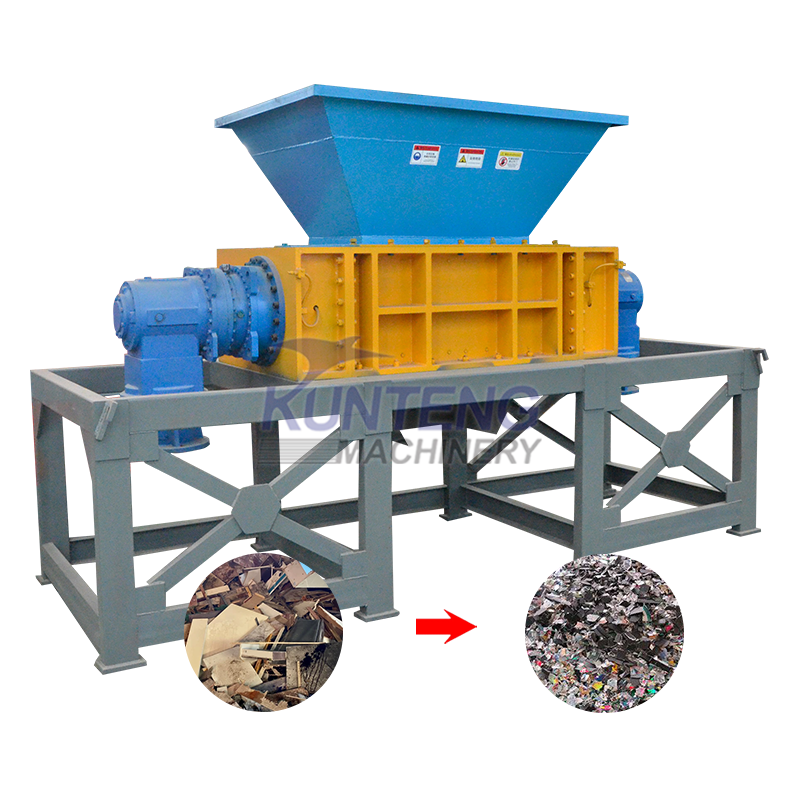

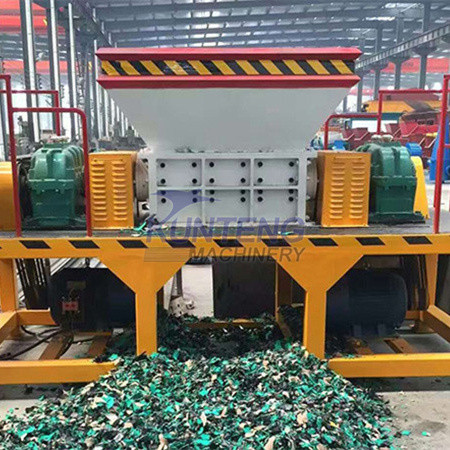

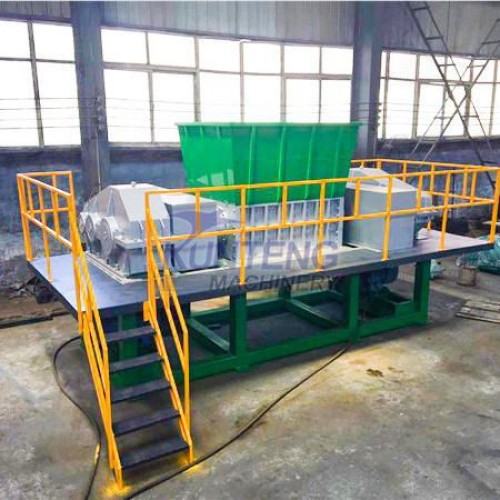

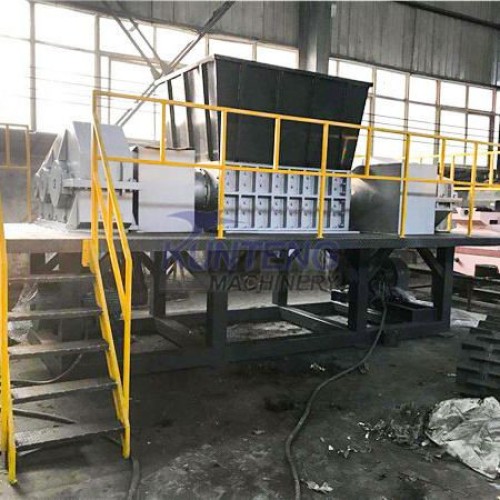

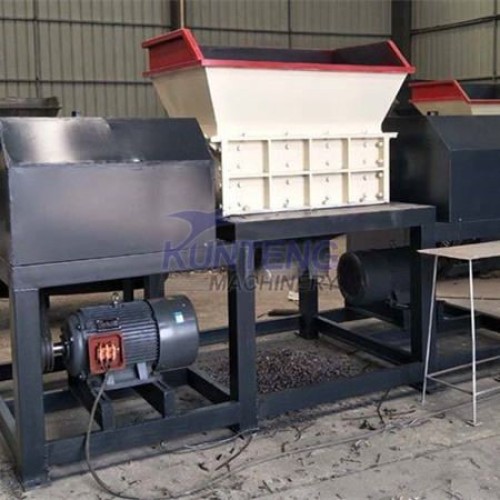

Small Mini Waste Metal Plastic Shredder Machine Waste Furniture Crusher Machine Shredder for Tires

Our waste shredder machine are mainly used for shredding, recycling various waste, such as household appliances shells, plastic barrels, scrap iron, waste wood, waste cardboard，etc. The shredder machine can shred all kinds of materials into smaller sizes.usually used in waste sorting production line.

Working Principle of waste cardboard shredder machine

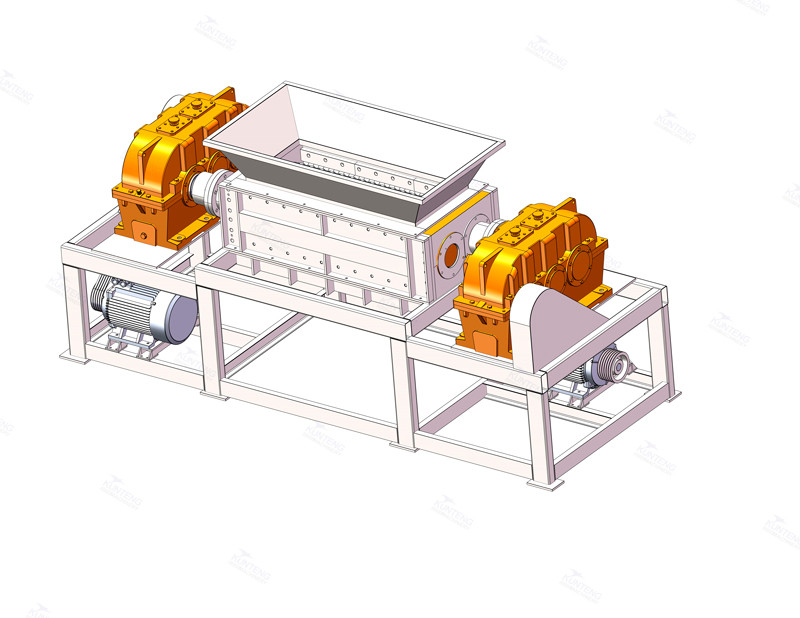

The main components are a relative rotation of the roller, the roller success teeth tops spirally arranged. After the material into the machine by the teeth staggered rotation of high hardness and wear-resistant material shear pull bite is split, broken and crushed to less than the set size after being forced to exclude outside. Roller driven by a motor through reducer having a large torque encountered difficulties debris,it will automatically reverse the role of PLC automatic control system, and repeatedly reversing, until the material is broken exhaust.

APPLICATION

Application of shredder hydraulic wood waste crusher machine

The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry and etc.

Features of waste crusher machine

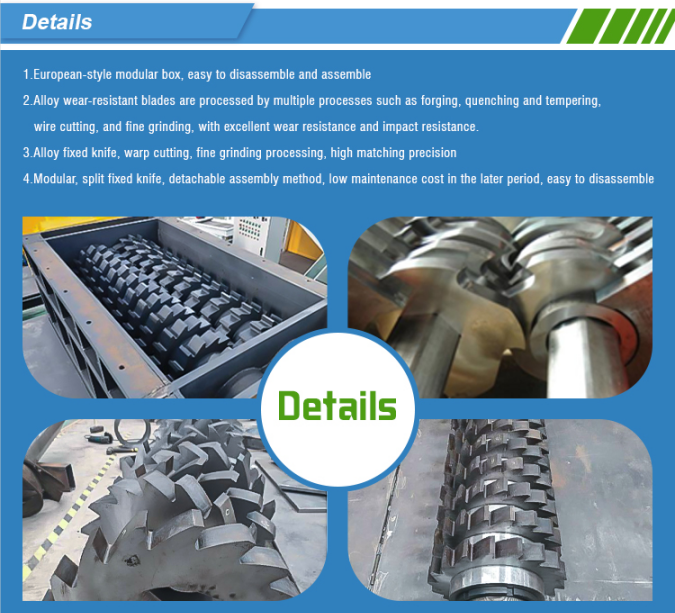

1. Stable performance with low noise and dust generation 2.Minimal maintenance 3.Safe and easy operation 4.Auto-reversing when engaging unshreddables 5.Free and professional blade design to make sure high shredding quality 6.Available for diffeent products,such as waste plastic,rubber,tyre,wood,metal,cardboard,paper,coconut,stone,pvc pipe,grass

SPECIFICATIONS

Main Technical Parameters of waste shredder machine
Model	Size (LxWxH)(mm)	Feed Inlet Size(mm)	Blade Diameter (mm)	Blade Thickness(mm)	Blade Quantity(pcs)	Power(kw)	Weight (kg)
SZ-500	2800x1300x1850	500x480	200	20	24	11x2	2200
SZ-800	3000x1300x1850	800x480	200	20	40	15x2	2500
SZ-1000	3300x1900x2200	1000x690	300	40	24	22x2	5200
SZ-1200	3600x2000x2200	1200x690	300	40	30	30x2	6400
SZ-1500	4180x2100x2400	1500x850	550	50/75	30/20	55x2	9000
SZ-1800	5800x2400x3300	1800x1206	550	50/75	36/24	75x2	13600
SZ-2000	6400x2700x3500	2000x1490	600	50/75	40/26	90x2	20100
SZ-2500	7500x3200x3800	2500x1800	600	75/100	32/24	110x2	25000
SZ-3000	300028002100	3000*1800	600	75/100	40/30	160*2	31000

WHOLE PRODUCTION LINE

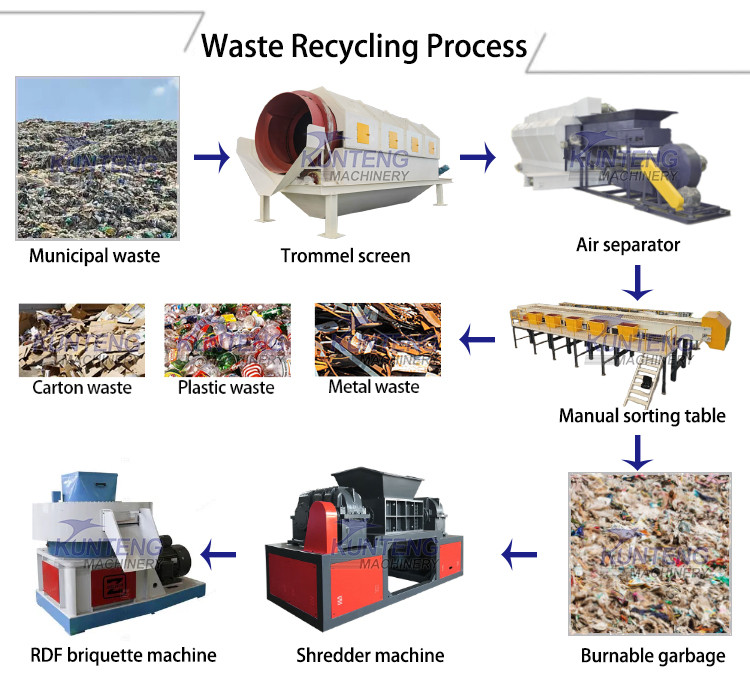

MSW City Garbage Waste Sorting Line

Kunteng Garbage segregation machine also called garbage sorting machine, which can separate various garbage like urban waste, construction waste, industrial wastes as well as mining waste. We have learned from the advanced waste sorting technology of developed countries and combined our own designs together with the technology to create our own waste sorting machine with high-cost performance. Now this plant has gained a good reputation and sold well in Europe, Southeastern Asia, South Africa and Australia, etc. At present, Guoxin has different types of the plant for sale according to different capacities for our clients to choose from.

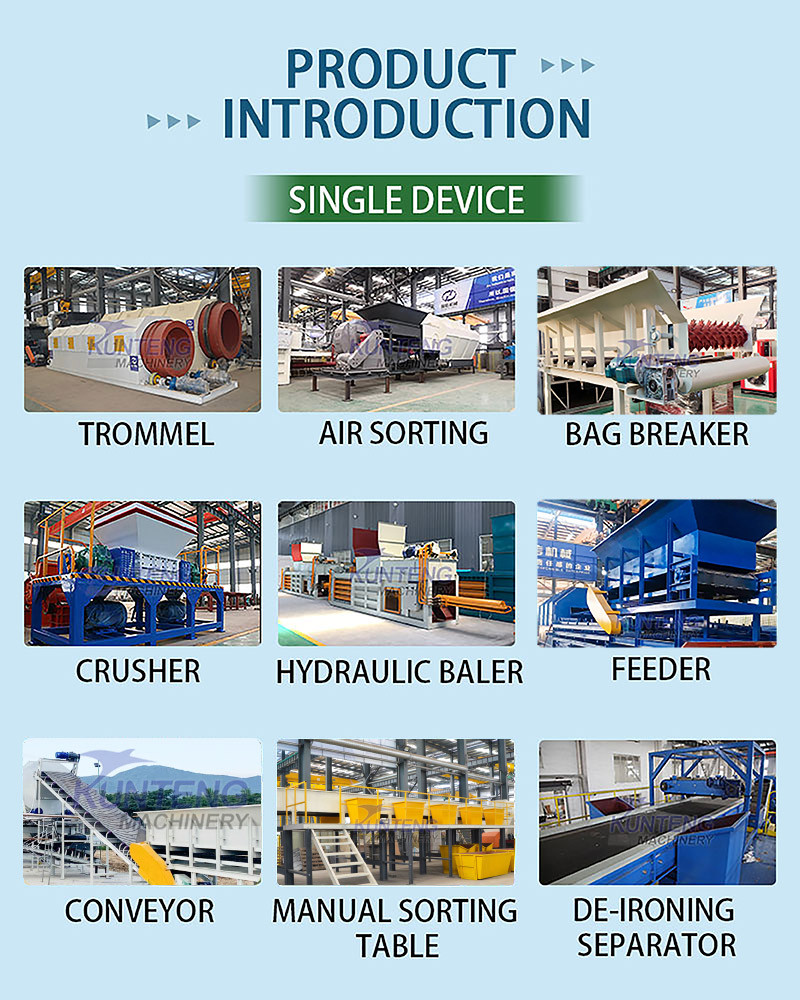

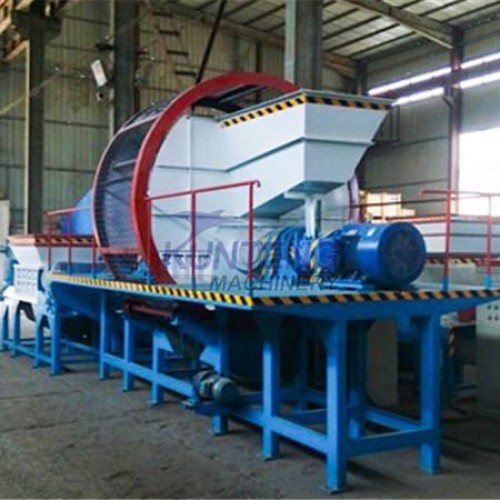

MAIN MACHINES OF THE LINE

Features of Kunteng waste sorting system

Humanized Design ● We adopt automatic operation to reduce labor cost and avoid the mistake; (about segregation of garbage and its advantages) ● We configure a deodorization system to make sure a pleasant operation environment; ● Manual auto switcher and emergency stop device are equipped in case the emergency happens; ● No noise during the whole process of working. Considerate Configuration ● We can change configurations of the garbage separation machine according to the actual needs of our clients. We can add blades in the rotating screening machine to break bags and add sealed conveyor for clients who want to separate mining waste to avoid fly ash and dust. Good Performance & High Quality ● Our garbage separation system can sort as much as 400-ton waste for a whole production line and the working process is smoothing; ● Each part of the system is produced in a quite strict production line to make sure high quality and strong durability.

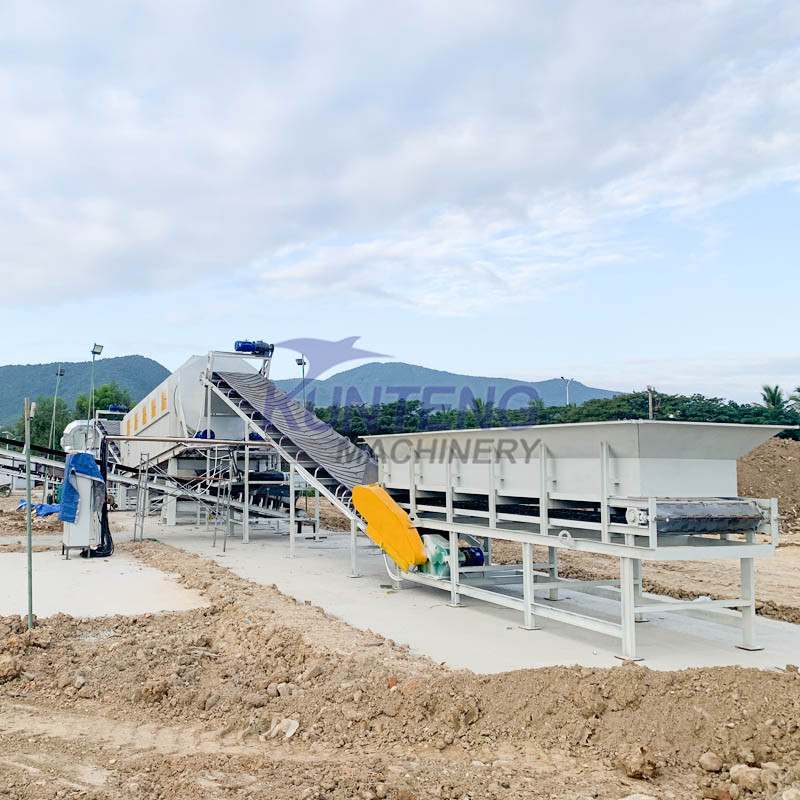

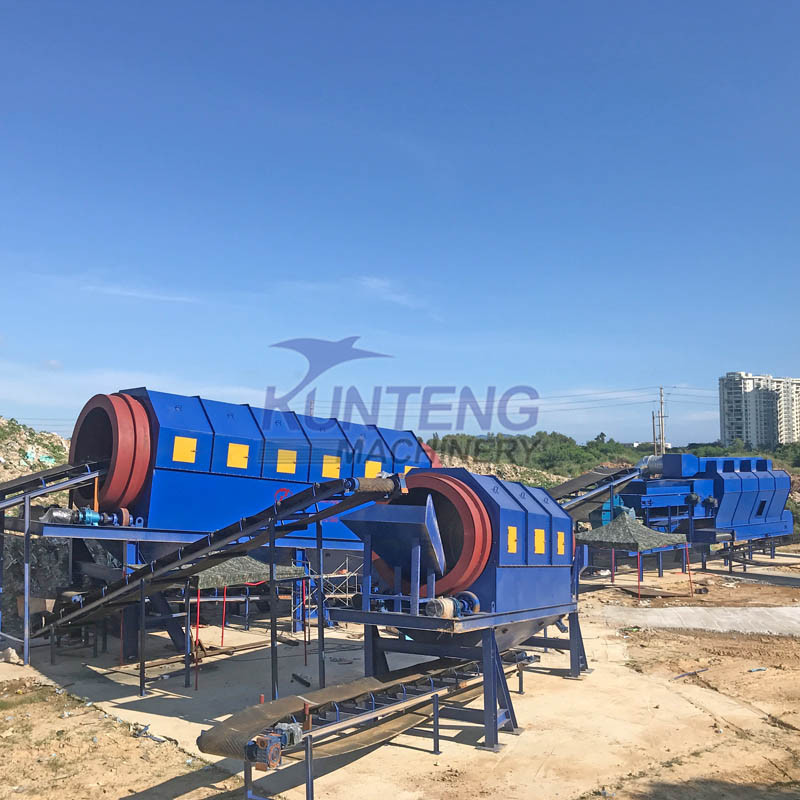

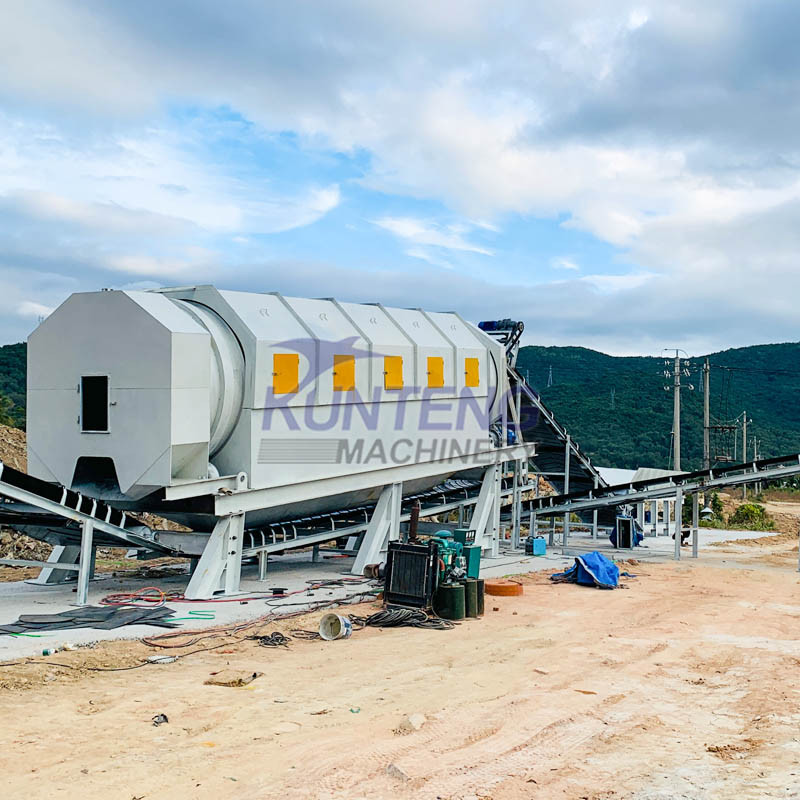

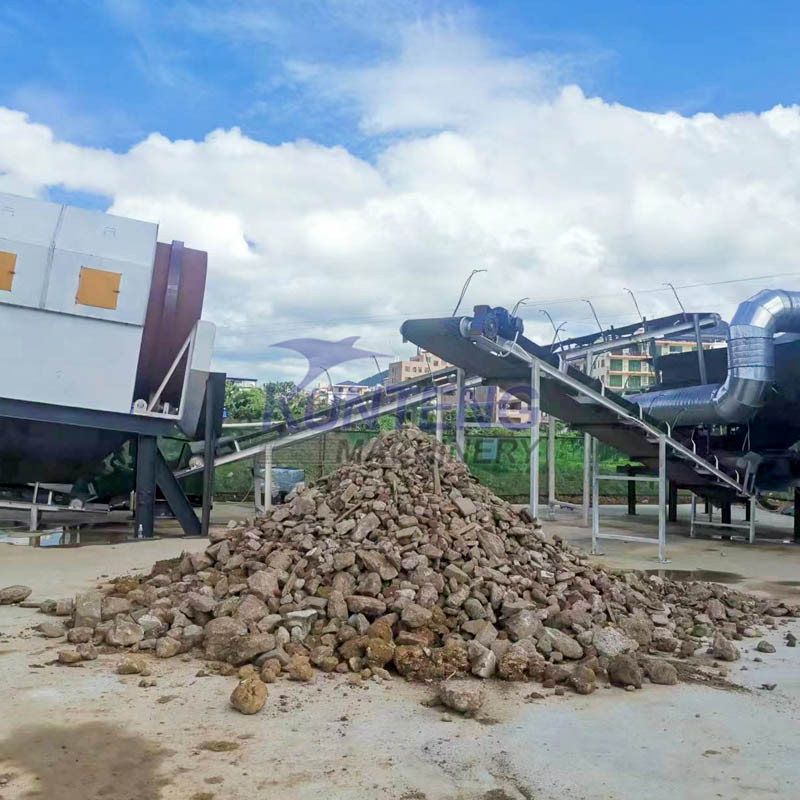

CUSTOMER INSTALLATION SITE

In 2005 Indonesia customer construction waste sorting site,According to the customers needs, we designed and produced a complete set of construction waste sorting lines with a daily processing capacity of 500 tons.

In 2003 USA construction waste sorting production line which designed and produced by us. Daily output of 300 tons.Received satisfactory feedback from our customer.

Other customer sites are all over the world.

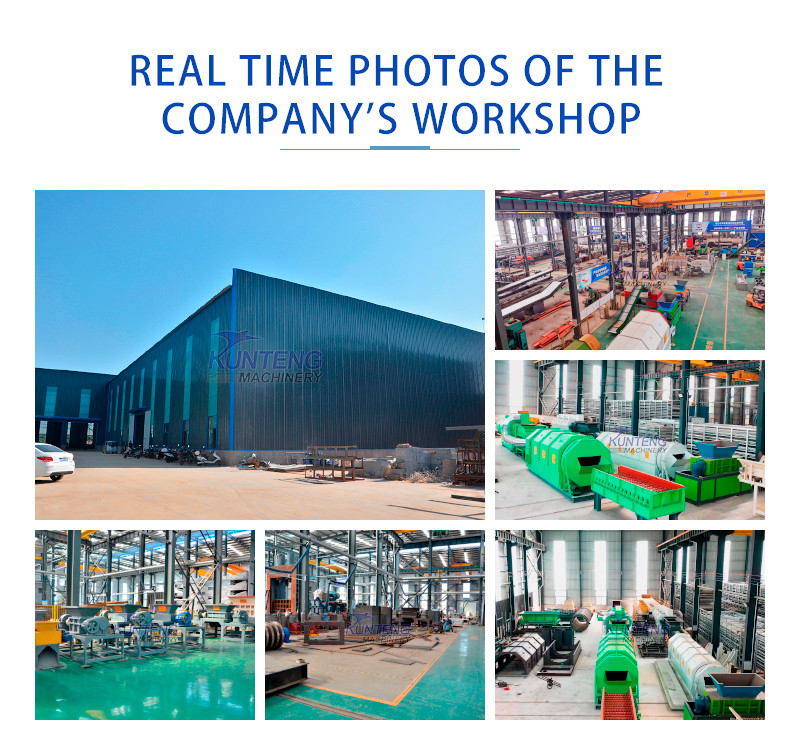

COMPANY PROFILE

About Kunteng

Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting machines. include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.

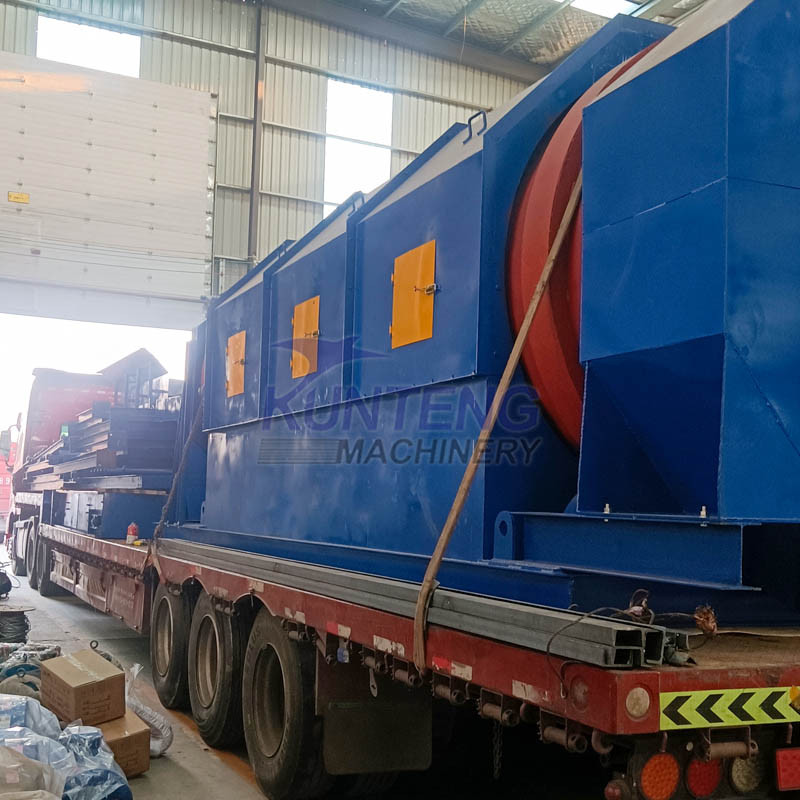

PACKING & SHIPPING

FAQ

Q1. Are you factory or trade company?

A1. We are manufacturer, we also supply trade service.

Q2. What about your price? A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.

Q3. What payment terms do you accept? A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.

Q4. How about your delivery time? A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: what will you do if the machine is broken down? A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
