Description:

PRODUCT OVERVIEW

Stainless hydraulic press charcoal briquetting machine Philippines coal briquetting machine cube charcoal briquette machine

Introduction of coal briquetting machine

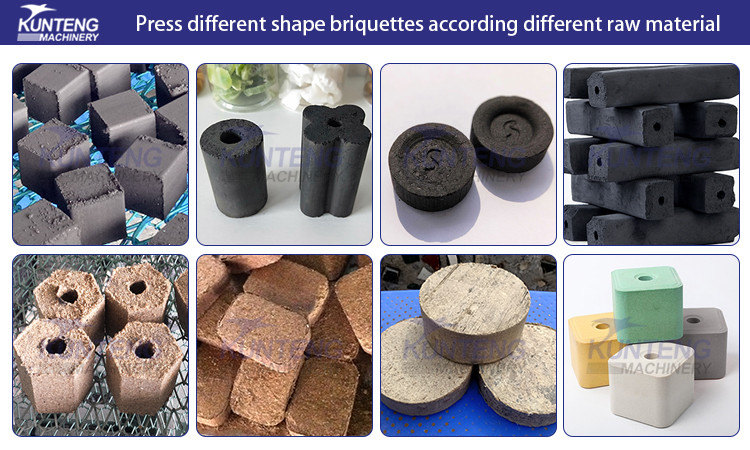

There are many useless material in the world, like coconut shell, waste wood, fruit wood, hard wood, palm shell, nut shell, etc, these material all can become charcoal through carbonizing, then through some processing like crush, mix, then forming charcoal powder into different shapes and sizes of briquette, final product like cube shape, tablet shape, hexagonal, cylinder, or other customized shape, use for different field, like shisha hookah fuel, BBQ charcoal fuel, or other boiler fuel, etc. Then help people to earn more profits.

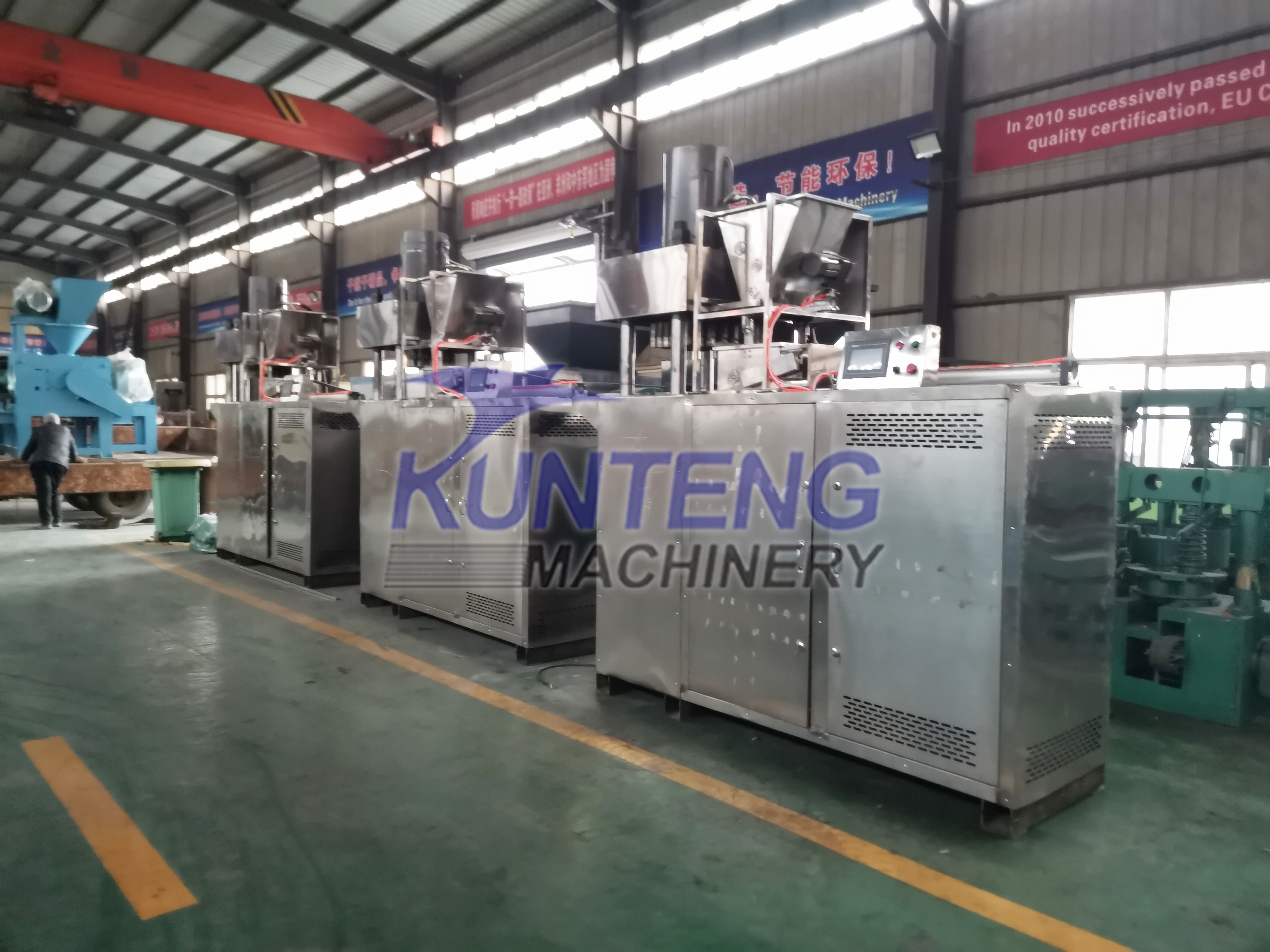

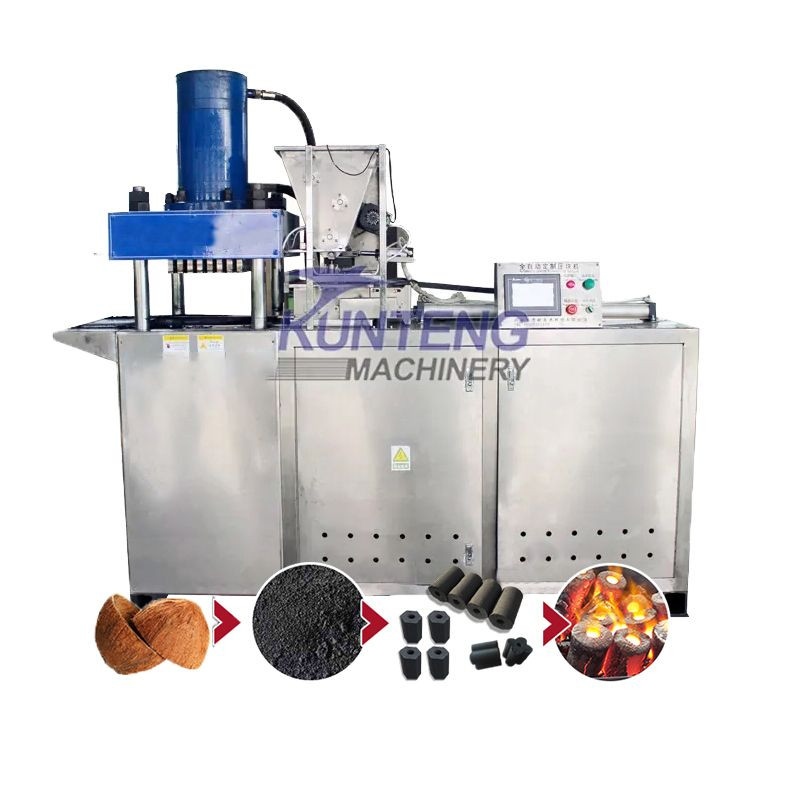

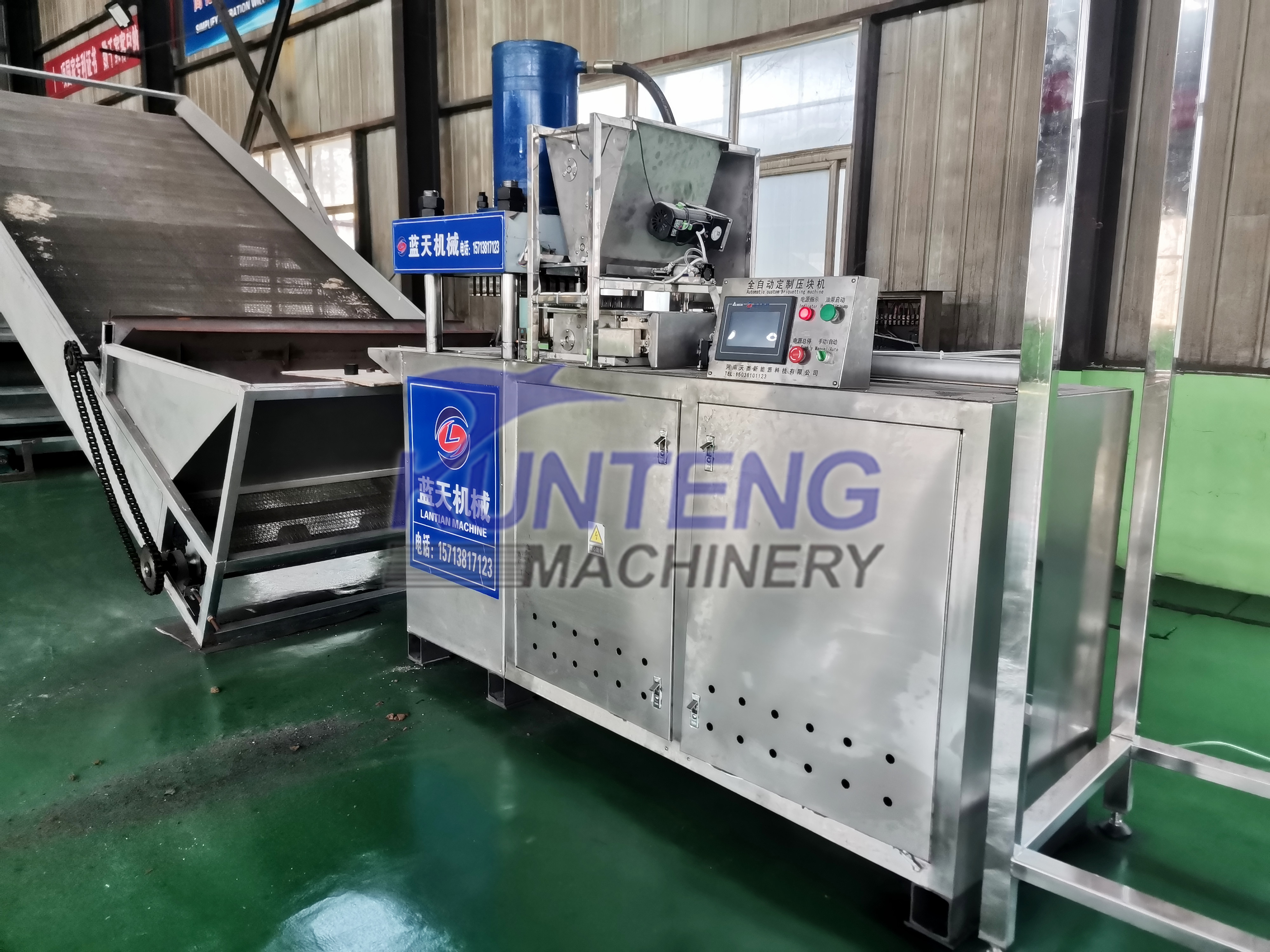

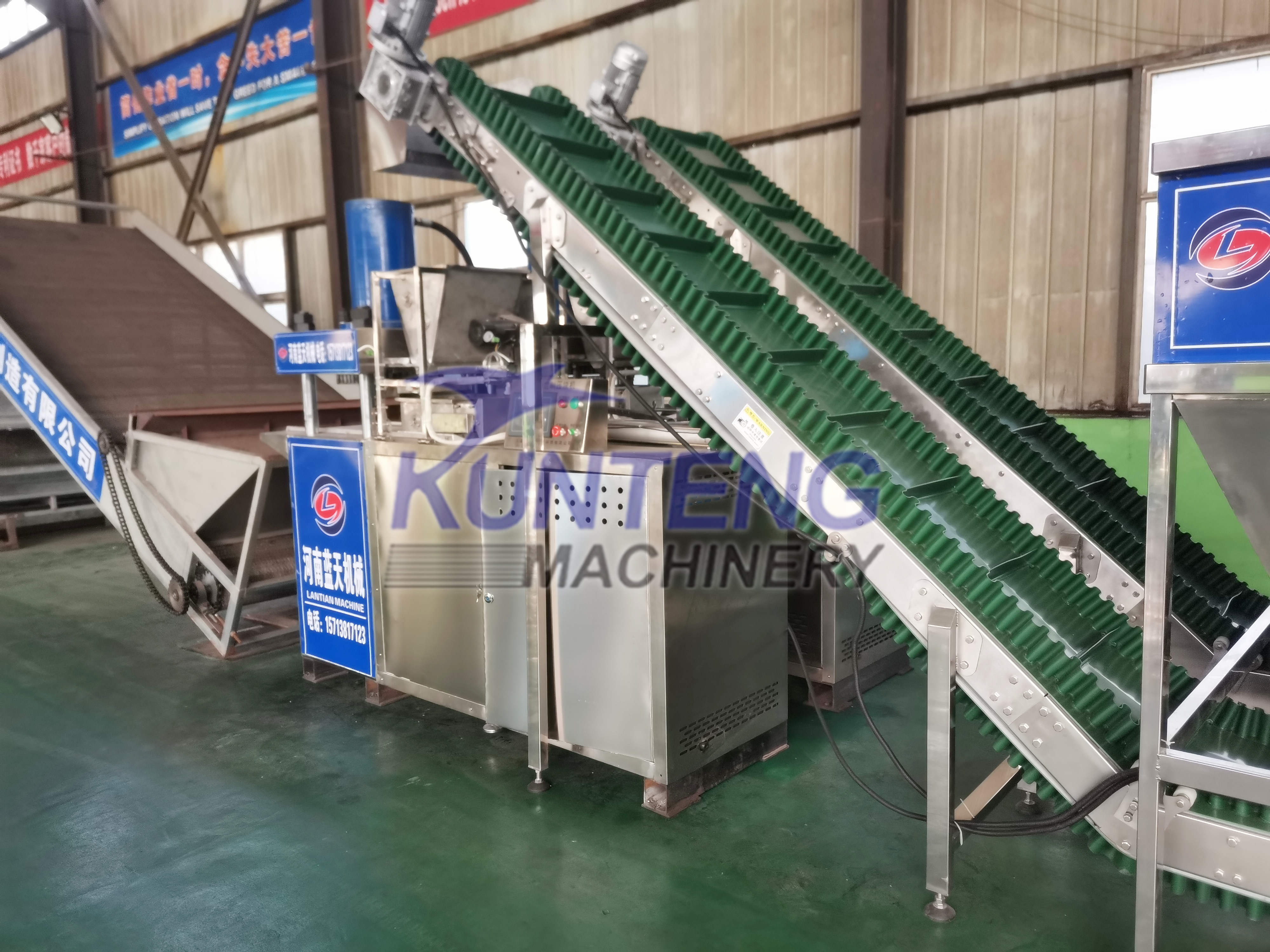

This machine is briquetting machine, forming powder into different shapes and sizes.

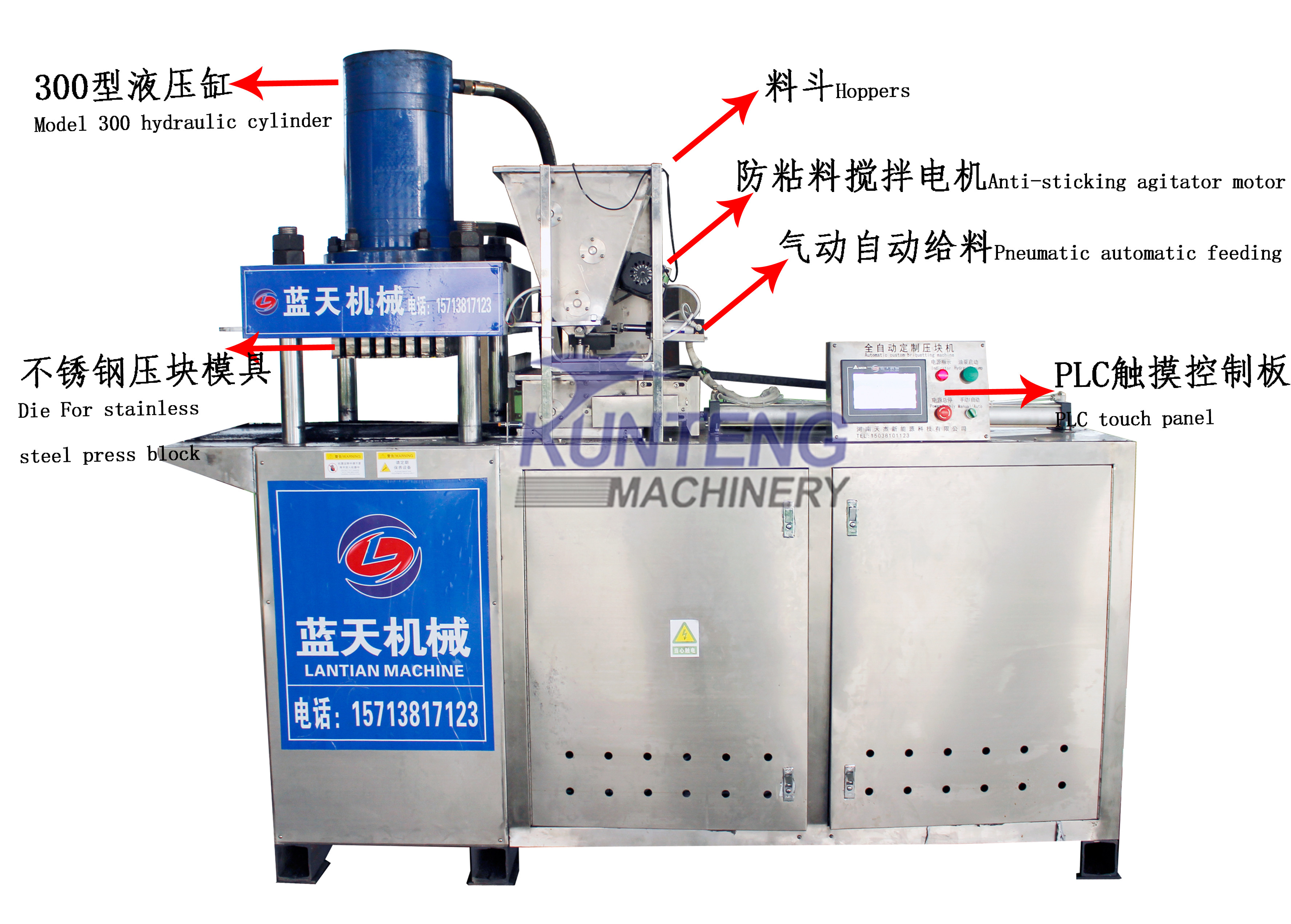

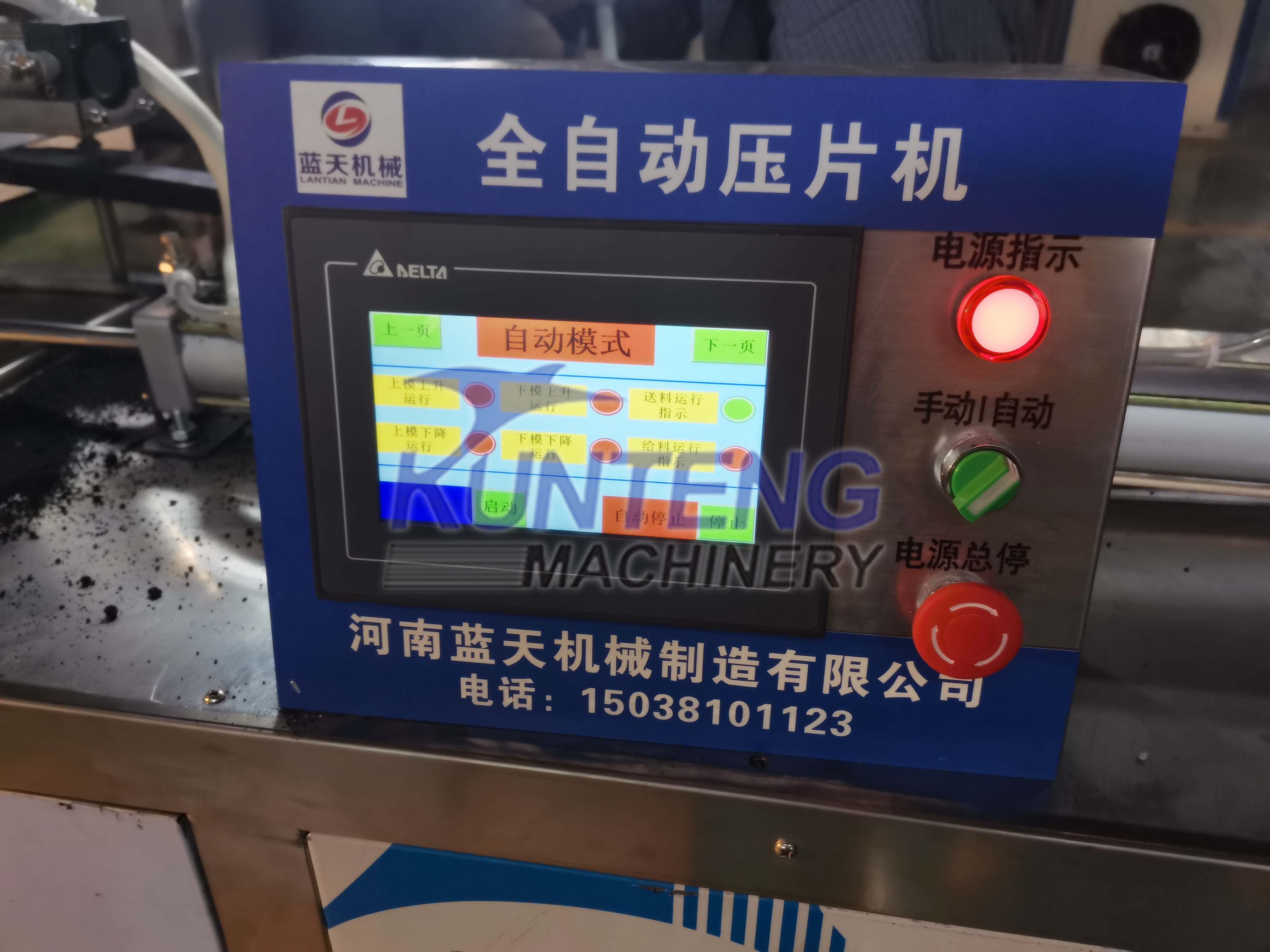

Total machine will be control by this PLC screen, it can control machine work auto or manual,

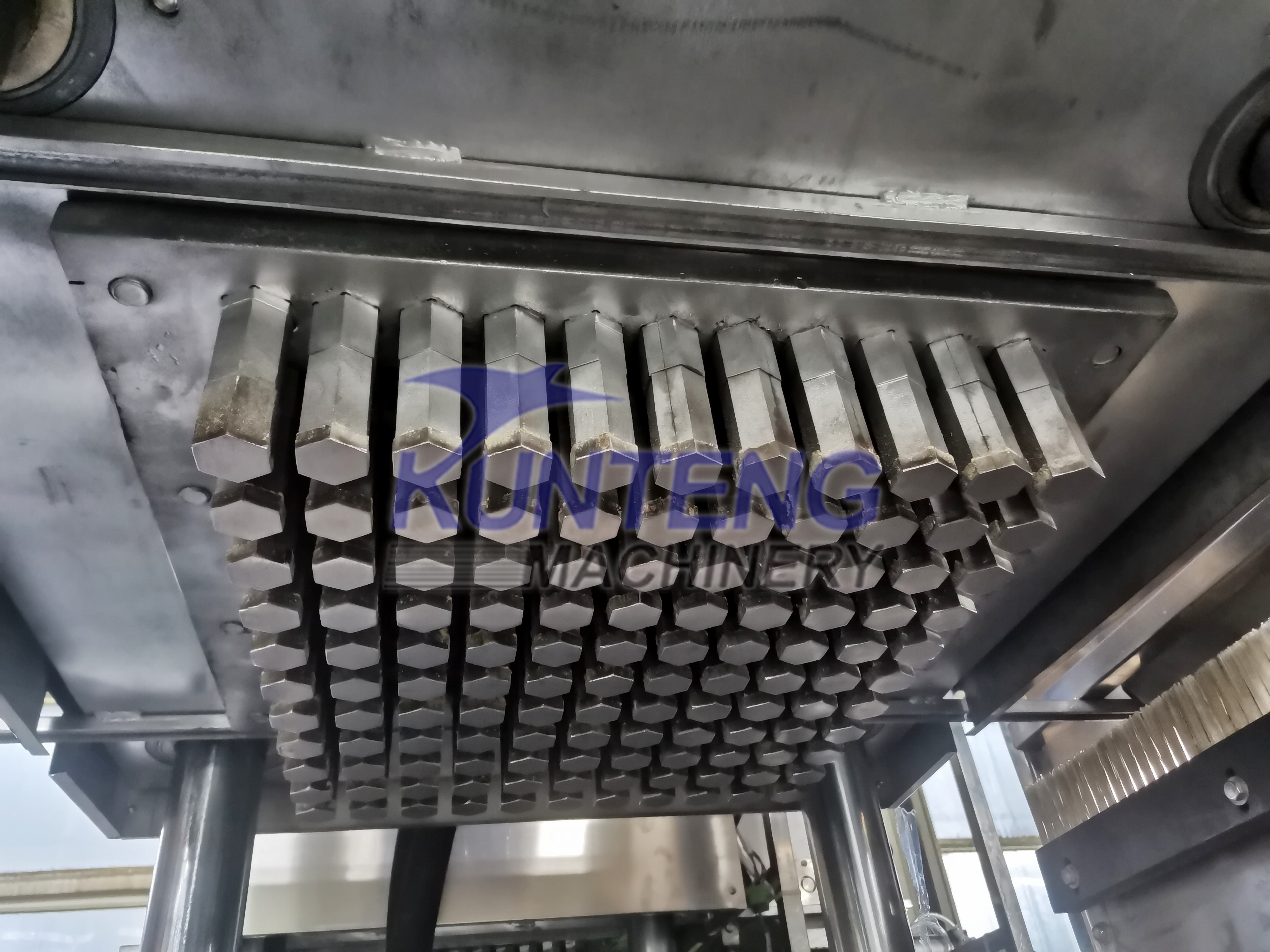

This is mold, also use stainless steel made

Teach formula

How to make easy burning fast burning briquette, smokeless charcoal, white ash after burning briquette.

PRODUCT SPECIFICATIONS

Model	JYP-300(Hydraulic pressure)	JYP-500(hydraulic pressure)
Materials	charcoal powders, coal powders, sawdust, any powders form Materials
Capacity	800-1000kg/h, depends on your materials and size of briquette	1000-1500kg/h, depends on your materials and size of briquette
Motor	15 kw	15kw
Height of briquettes	within 30 mm, diameter as your willing	less than 10 mm
Feeding materials	< 3 mm	< 3 mm
Briquettes shape	cube, round tablet or as customers’ request	cylinder, hexagonal or as customers’ request
Pressure	300 tons	500 tons
Overall size	25007202200 mm	26408002700 mm
Weight	2000 KG	3000 KG

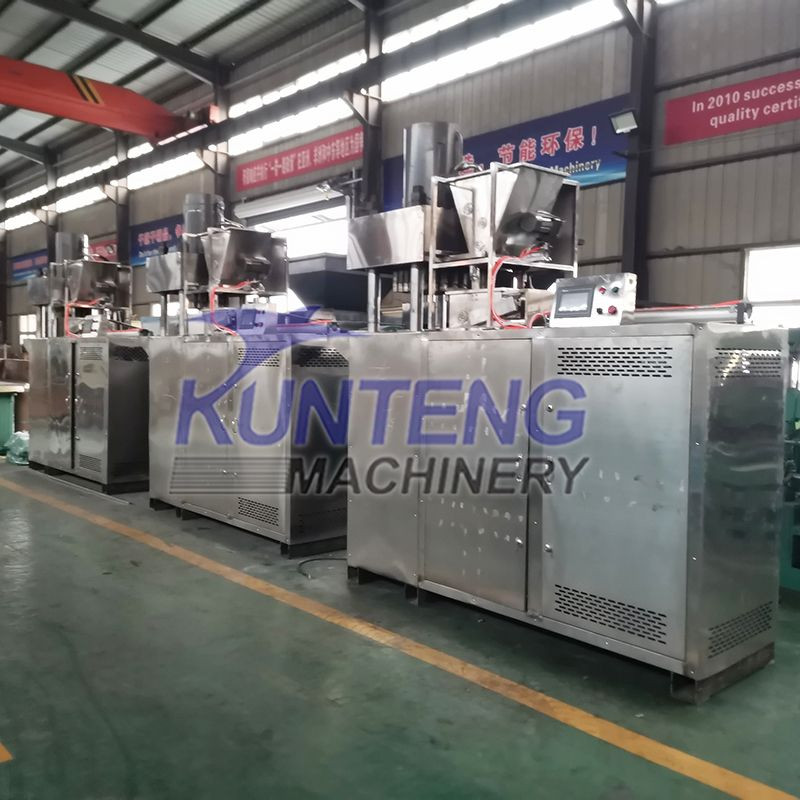

DETAILS DISPLAY

Advantage of coal briquetting machine

1. PLC control machine work auto or manual.

2. This kind charcoal briquetting machine Philippines mold plate is bigger than old press machine, so capacity is bigger than old type.

3. Total charcoal briquetting machine Philippines we use stainless steel made, include mold, featuring wear resistance and corrosion resistance.

4. Easy for clean, after one day finish working, can use water to clean, no problem.

5. This pressure is bigger than old type, so final product density will be high, long burning time.

6. There is a mixing shaft inside the feed hopper to prevent difficult blanking.

7. Mold shape can be customized, also can make logo on it.

8. No need install, when receive machine, connect electric is ok.

Suitable material for charcoal briquetting machine Philippines

Machine suitable for many material, like ready charcoal, coke, coal, mineral powder, and other kind material like coconut shell, nut shell, wood, sawdust, bamboo, these kind material need make carbonizing first and make become charcoal, then can through more processing and make briquette.

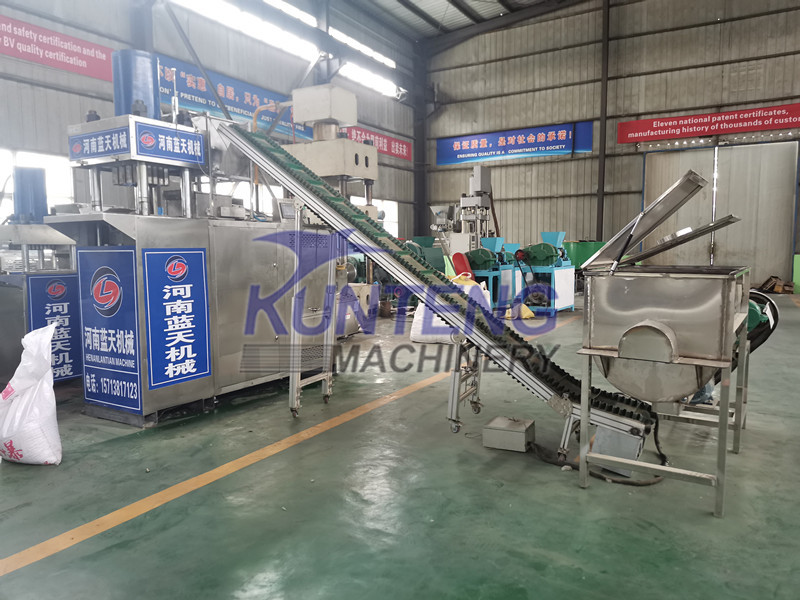

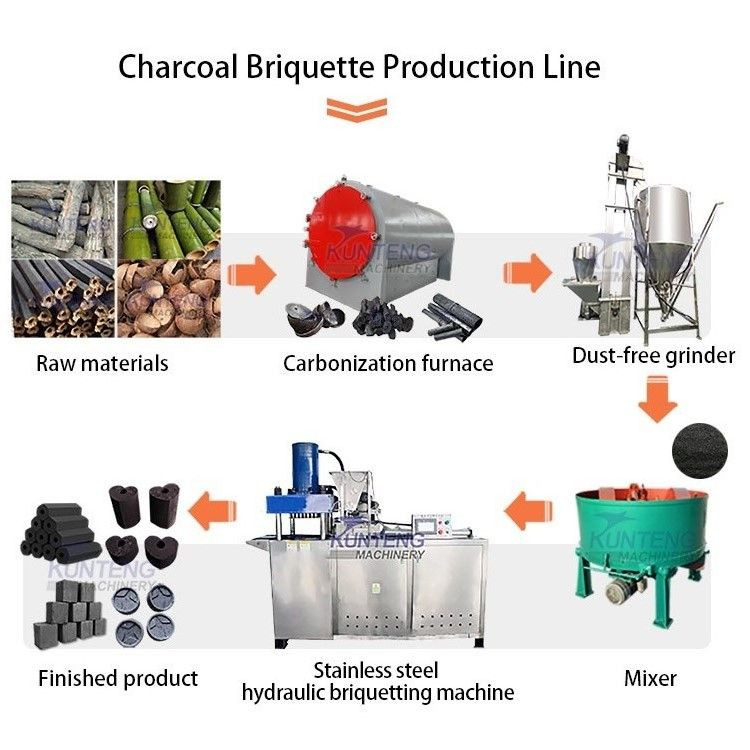

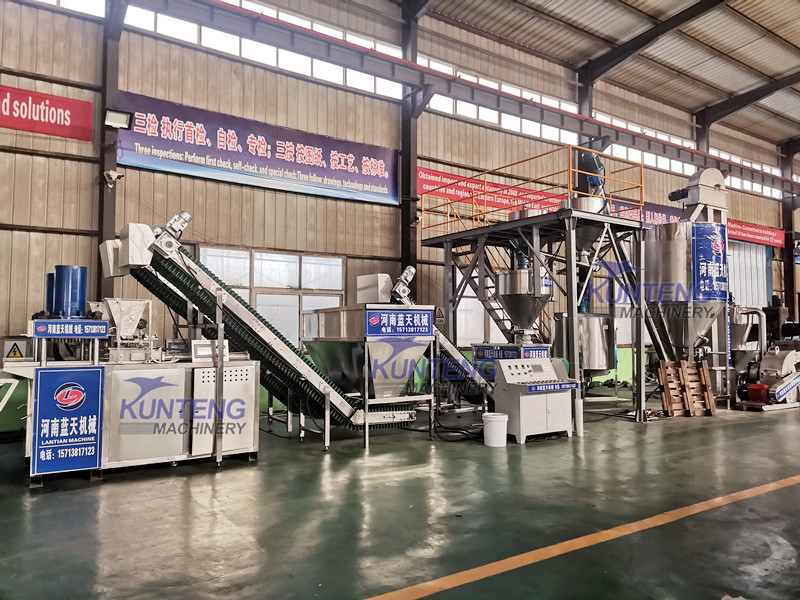

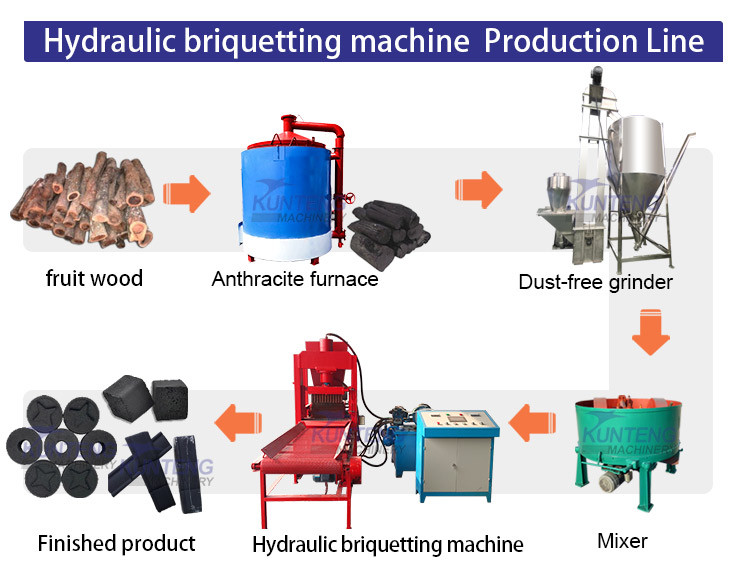

PRODUCTION LINE

Different customer needs is different, because it have different material, different capacity, different shape need make, so now i explain roughly production line for you, exact production line is according to your requirement make.

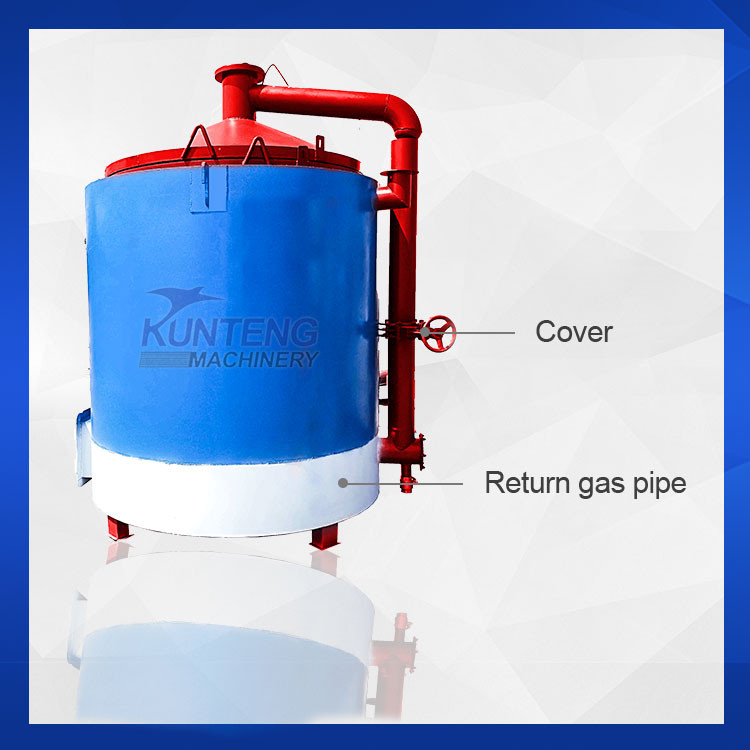

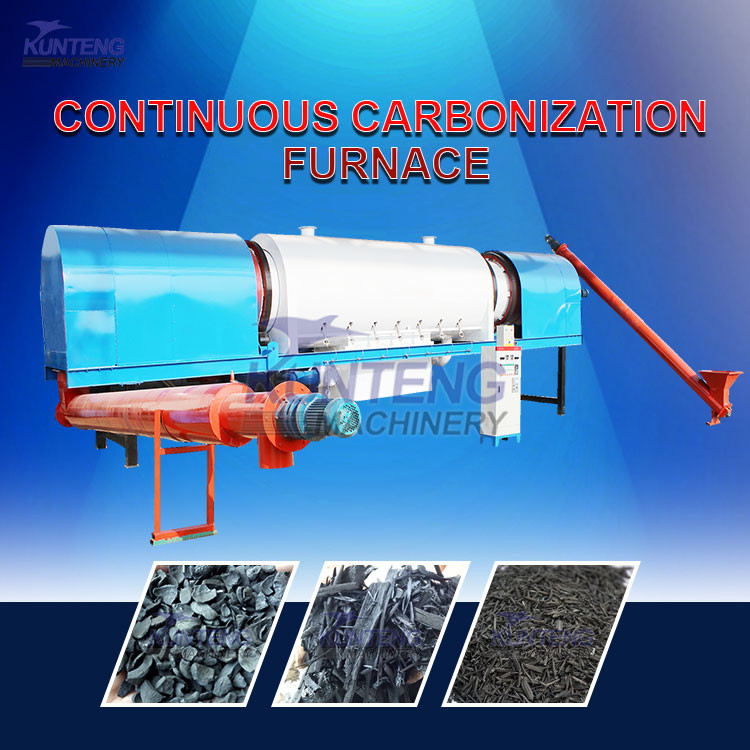

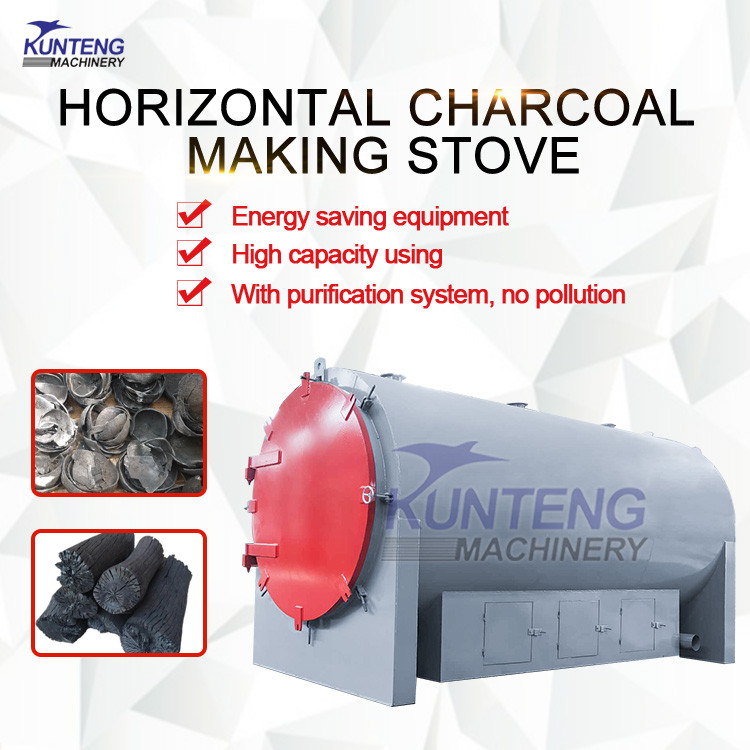

1. Make your material become charcoal by carbonizing furnace. (if is ready charcoal, will no need carbonizing)

2. Crush big size charcoal into powder less than 2 mm.

3. Owing to charcoal powder have no stickiness, so need add some binder into it and mix.

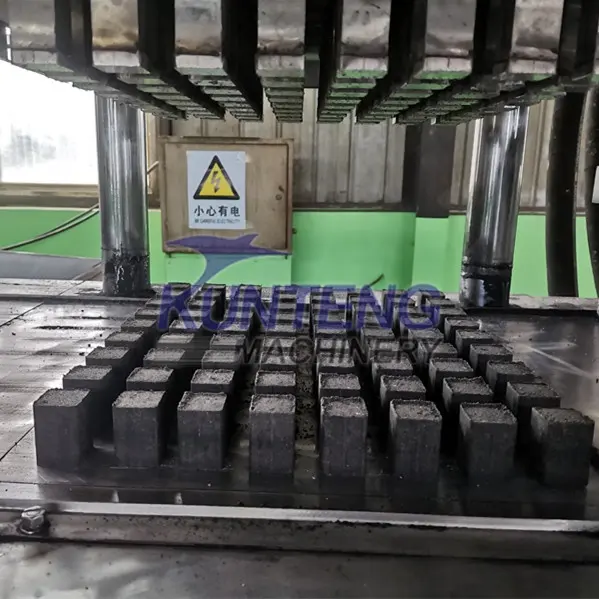

4. After mixed material will going into charcoal briquetting machine Philippines and forming into different shapes and sizes.

5. The last step is make briquette dry, can use our dryer machine, also can use sunshine to dry.

RELATED PRODUCTS

SHIPPING AND PAYMENT

SHIPPING:

Normally if single charcoal briquetting machine Philippines, will pack by wooden case, use LCL loading, if production line machine loading, will loading into container directly, use FCL loading.

PAYMENT:
40% deposit, balance payoff before delivery.
