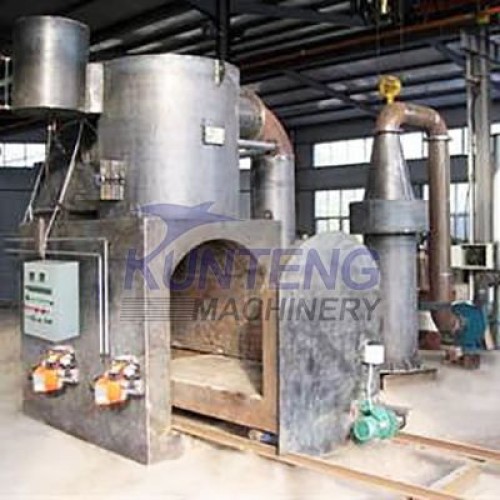

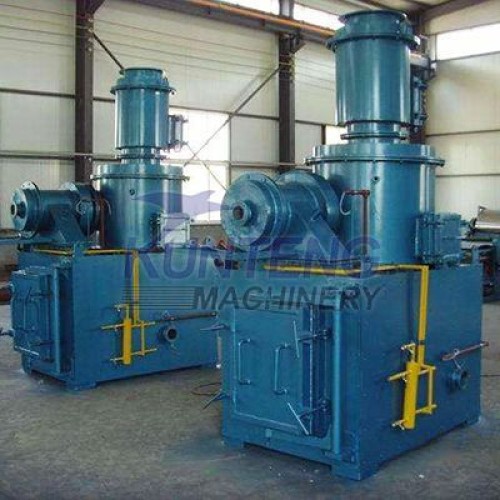

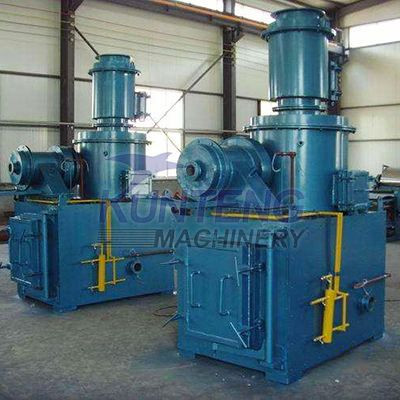

Waste Incinerator Household Garbage Incinerator Manufacturers

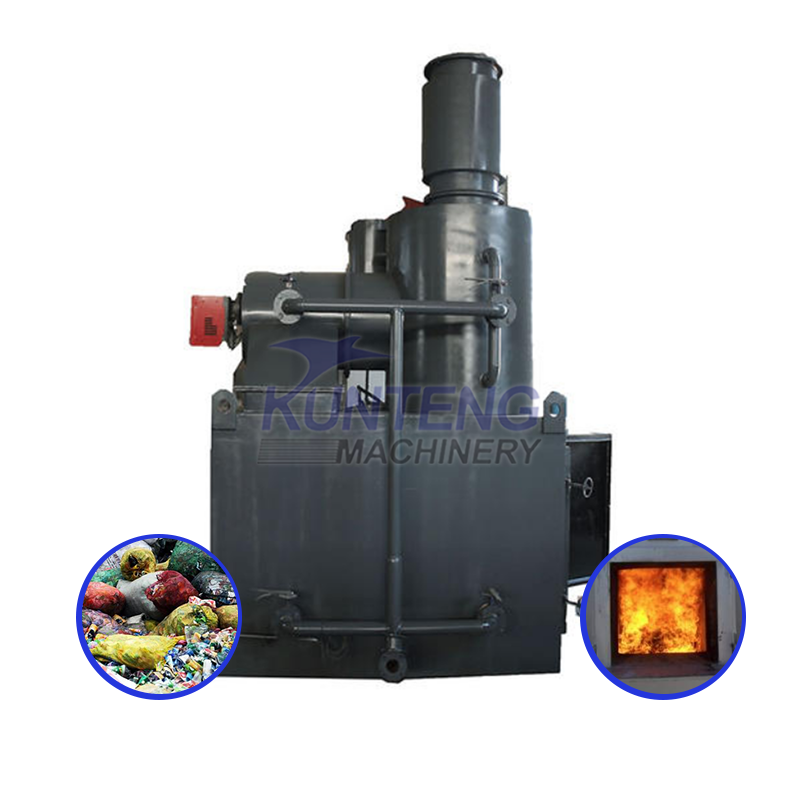

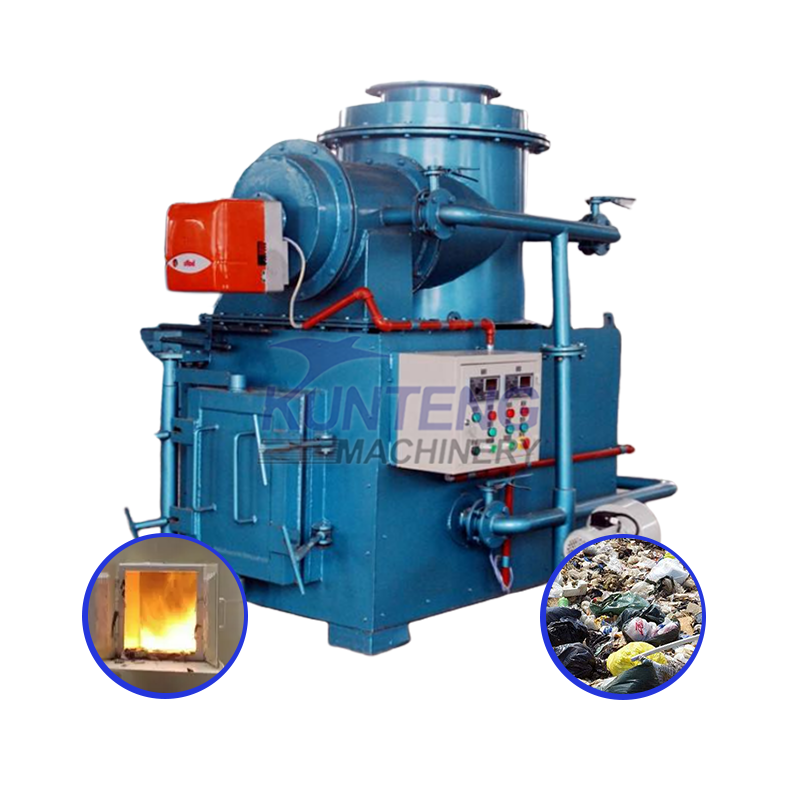

Our Household Garbage Incinerator is used to burning the sorted useless waste, It can reduce the volume of trash up to 95%. It greatly saves the land space,This is especially useful in countries where land is scarce.The burning heat can be used to generate electricity,Incinerated fly ash can be used as the material for making bricks, shingles, or tiles.
| Primary combustion chamber | Furnace body combustion chamber |
Volume: 2.4m³ Burning capacity: 500kg/h |
| Integral automatic burner | Power: 0.11kw | |
| Incineration temperature | 400-600℃ | |
| Size of waste inlet hole | 980×980mm | |

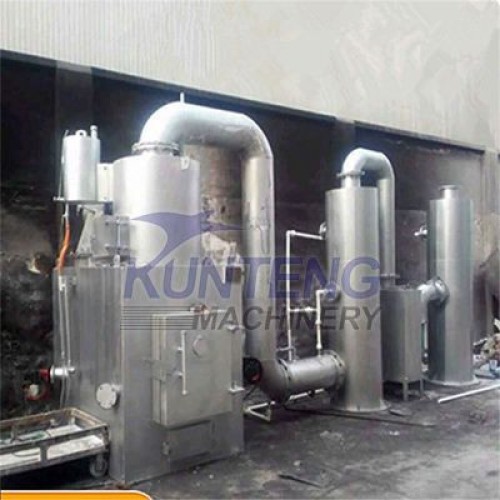

| Two-stage combustion furnace | Secondary combustion chamber | Volume: 1.2m³ |
| Secondary burner | Power: 0.11kw | |
| Incineration temperature | 600-1200℃ | |

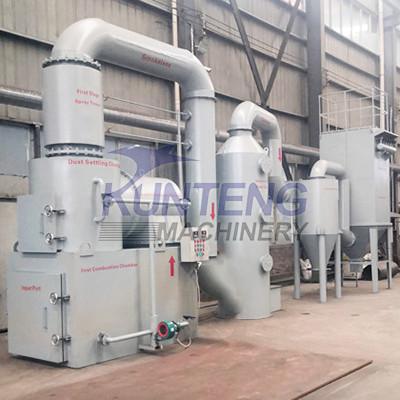

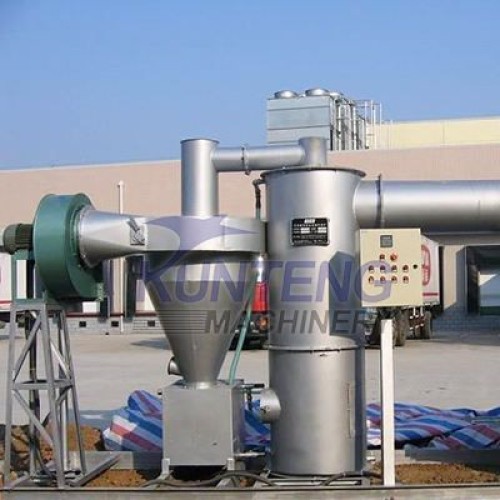

| Spray System | Sprinkler tower with connecting | First spray tower |
| pipes | (Size∅1000×1000mm) | |
| Secondary spray tower | ||
| (Size∅1000×3000mm) |

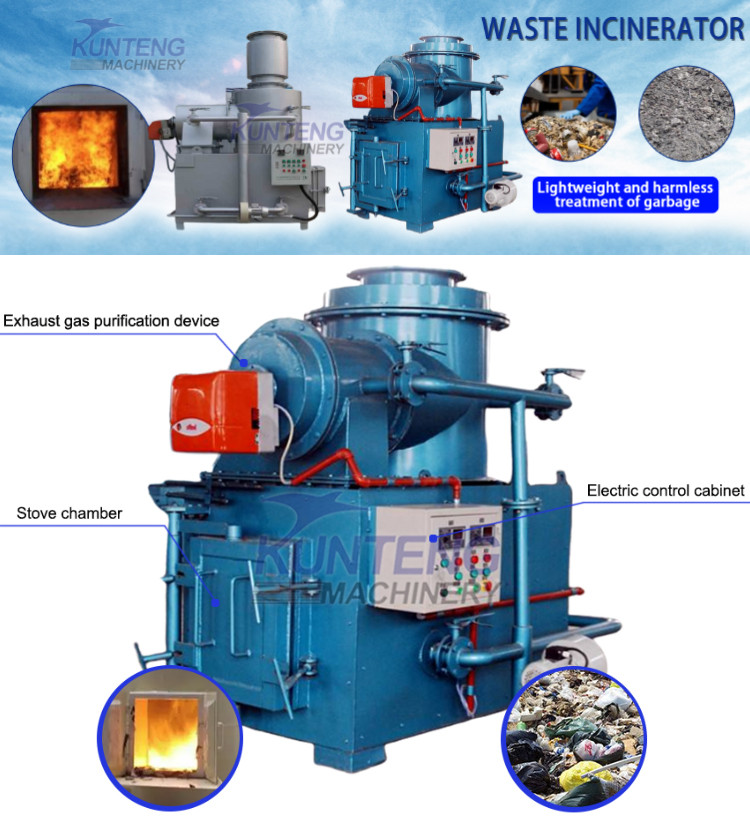

The furnace outside is steel structure, the middle is refractory material, and the inner layer is high temperature resistant material,which can withstand the high temperature of 1790℃.This design can not only ensure the enough combustion temperature inside, but also keep the surface temperature to low to prevent burns hurt. Refractory whole casting, not easy to fall off, not easy to corrosion.

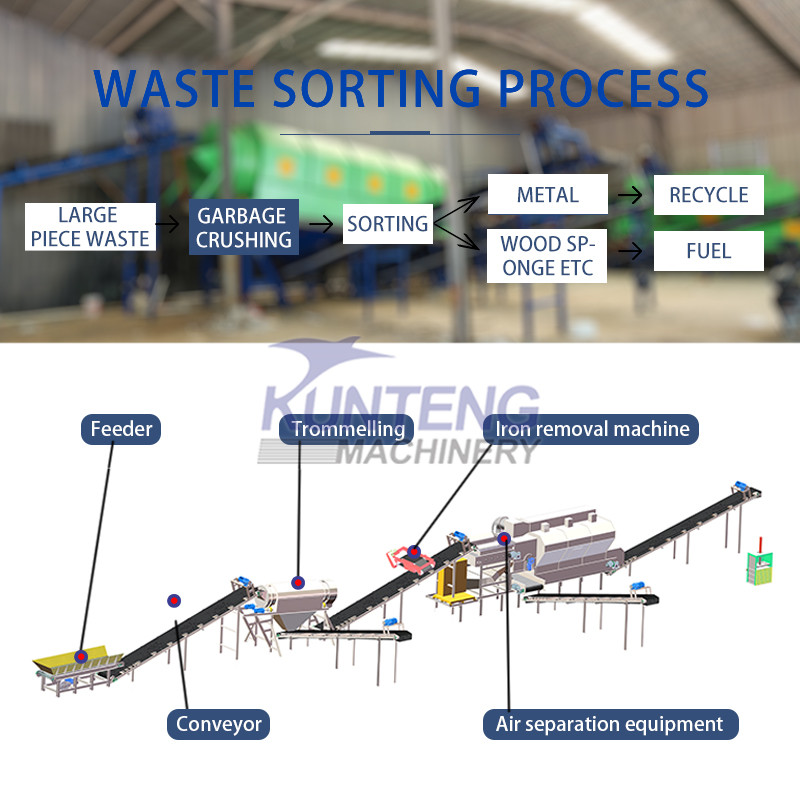

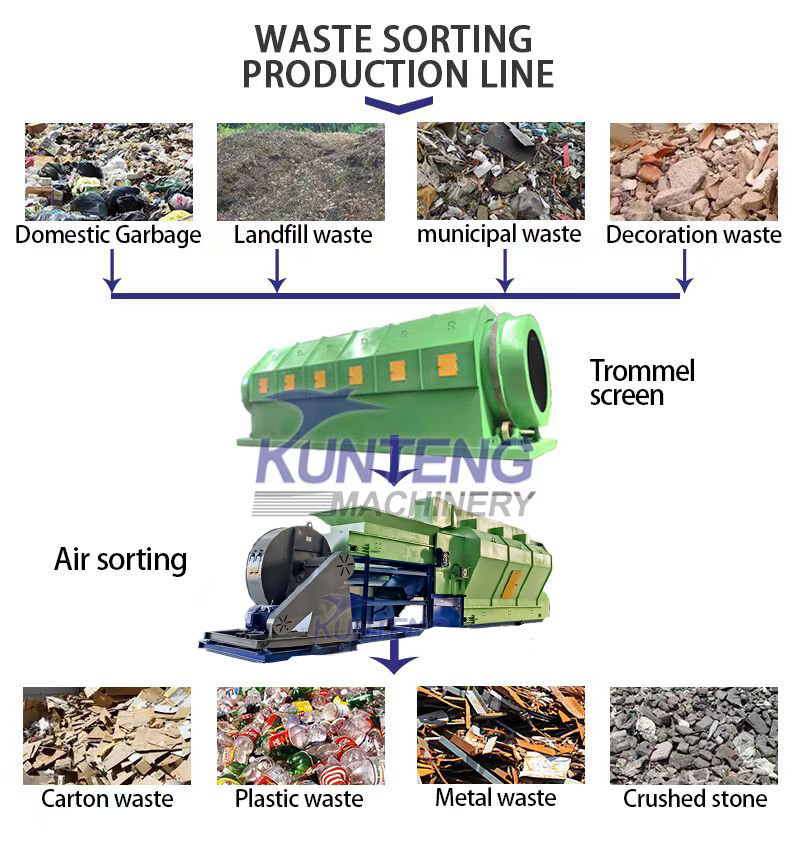

Automatic Waste Sorting Production Line for Organic Waste is to classify domestic waste at the source, and realize waste reduction, recycling and harmlessness through classified collection, classified transportation and classified treatment. The capacity ranges from 30-500 tons per day.
After sorting, different fractions of pure waste are received and can be further processed for recycling.

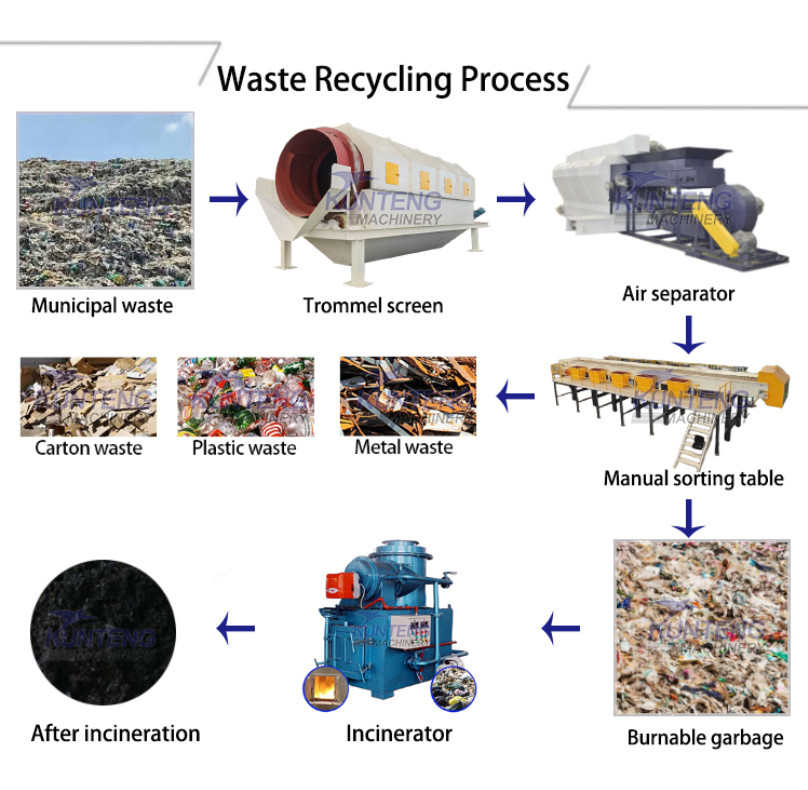

Mainly equipments of Automatic Waste Sorting Production Line:
1.Box feeder+bag breaking machine
Feeding the material evenly and tear the bag into the next process;
2.Trommel screen
Mainly used for sieving organic and inorganic substances;
3.Air sorting machine
Mainly used for screening light materials and heavy materials;
4.Garbage Manual Sorting Platform
Sorting out rubber, wood blocks, large pieces of glass, batteries, etc. from the garbage;
5.Hydraulic baling machine
The sorted plastics and cartons are packaged and can be further processed into RDF fuel rods.
6.Incinerator Burner
Mainly used for burning the garbage.

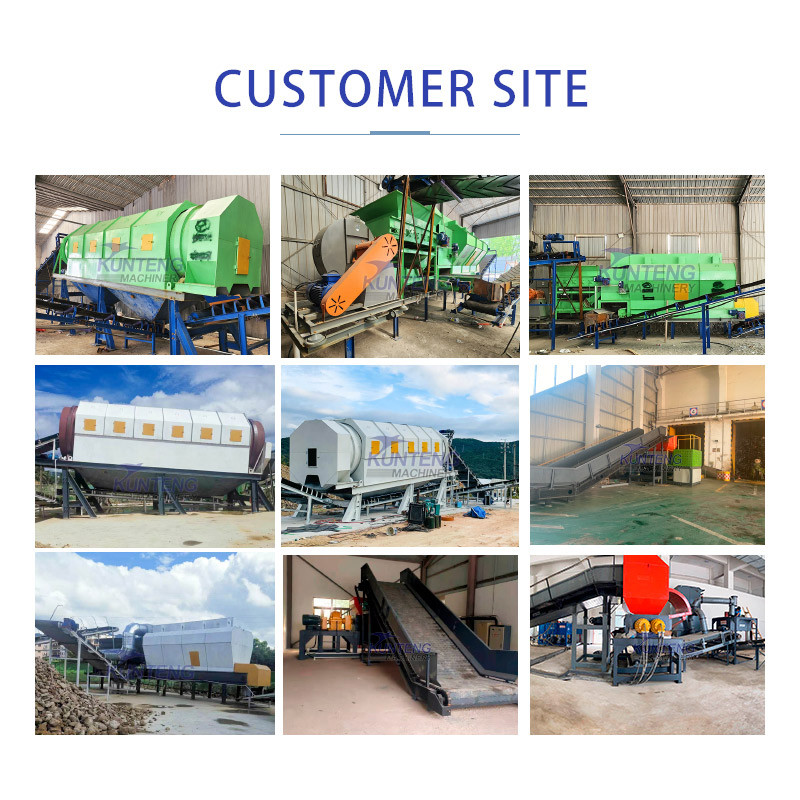

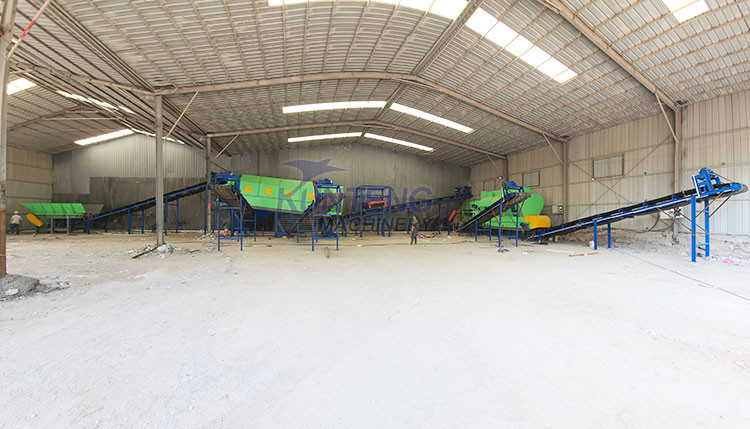

We have many successfully customers cases at domestic and abroad for City Garbage Sorting Disposal Production Line,here are some examples from Mexico,Indonisia,and Shanghai city,China.

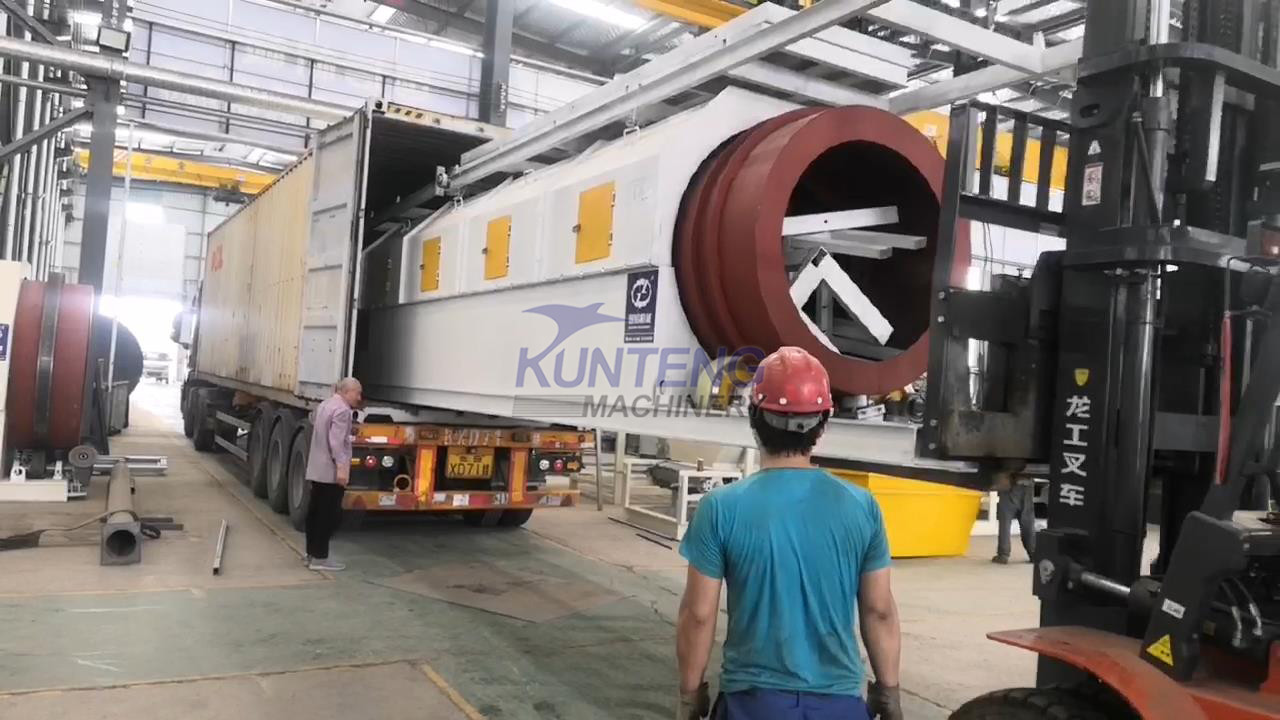

All of our equipments package according to international shipping standards,to make sure the machines complete and undamaged transport.

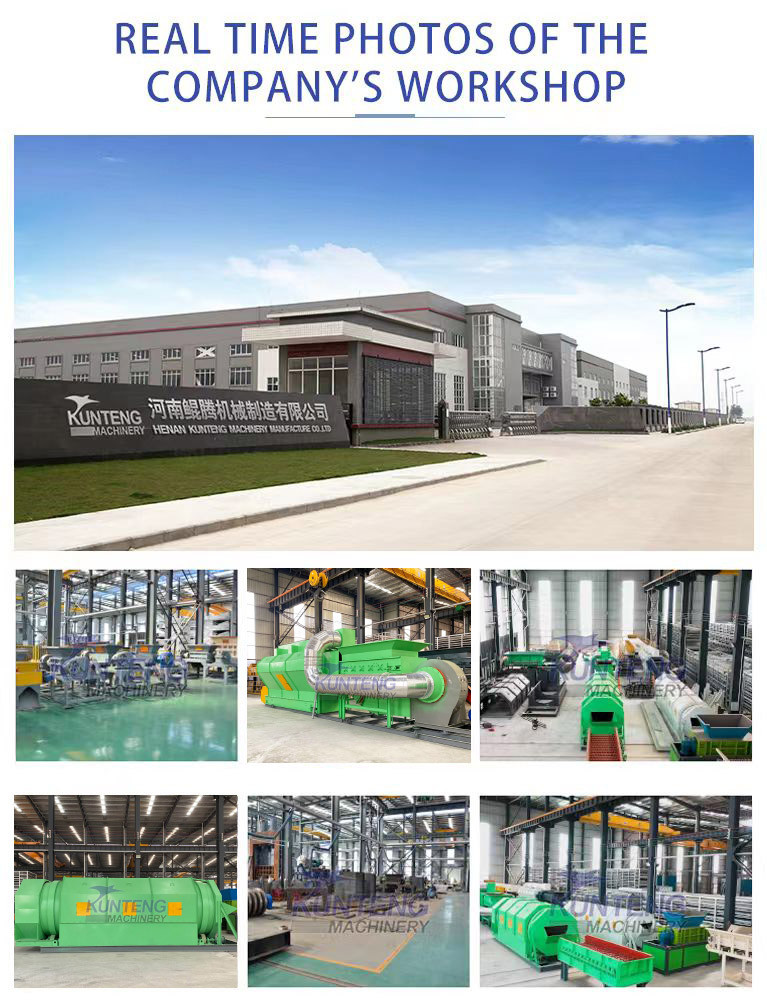

Henan Kunteng Machinery Co.,Ltd.was established in 1999.We are engaged in manufacturing urban garbage machine Municipal garbage recycling plant city solid waste sorting plant for more than 20 years.

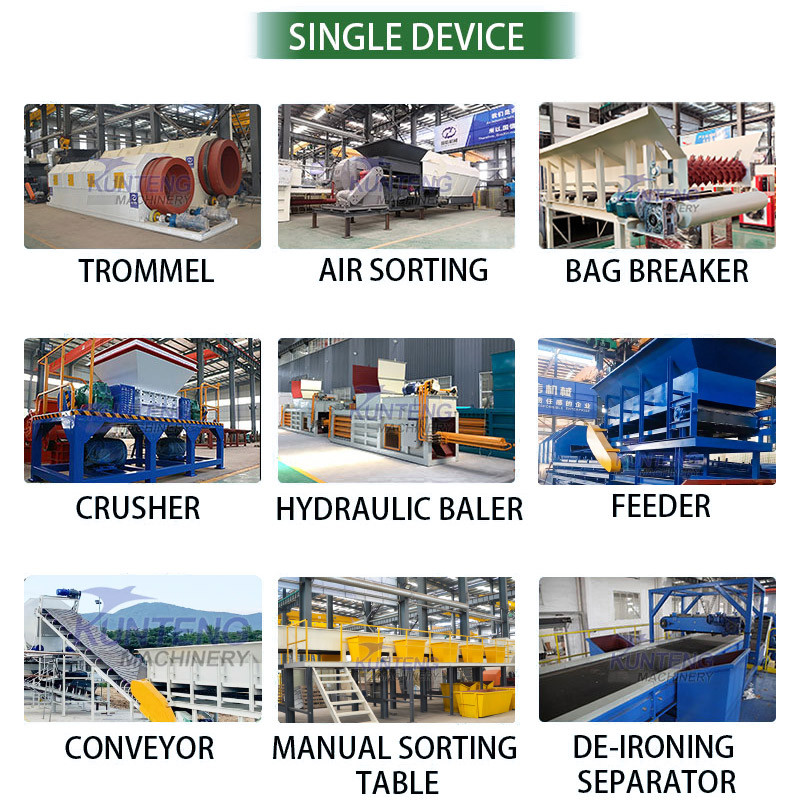

Our mature equipment include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.We can design the most reasonable solution for customers. Welcome to our factory to discuss cooperation
Our service:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
