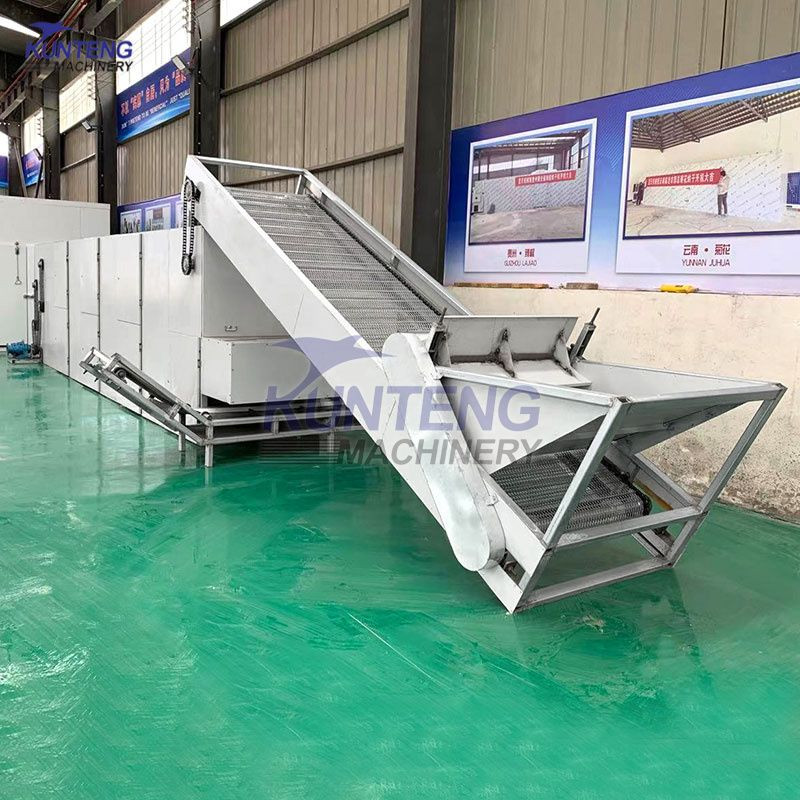

Mesh belt grass dryer fruit dryer multi-layer mesh belt fruit and vegetable dryer tea drying equipment

Mesh Belt Grass Dryer Fruit Dryer Multi-layer Mesh Belt Fruit And Vegetable Dryer Tea Drying Equipment

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCTION DESCRIPTION

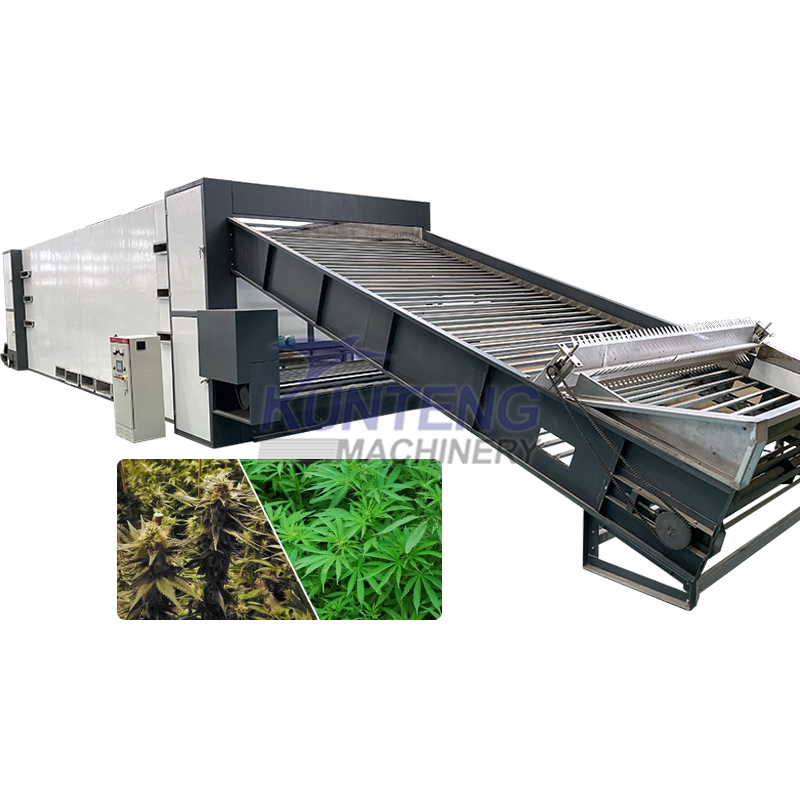

We specialize in producing KUNTENG hemp dryer drying machine drying equipment. We have completed many design cases for our clients around the world. If you want more information, you can contact us 24 hours a day and a professional engineer will answer your questions. KUNTENG Drying machine has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers needs for different materials.

Working principle:

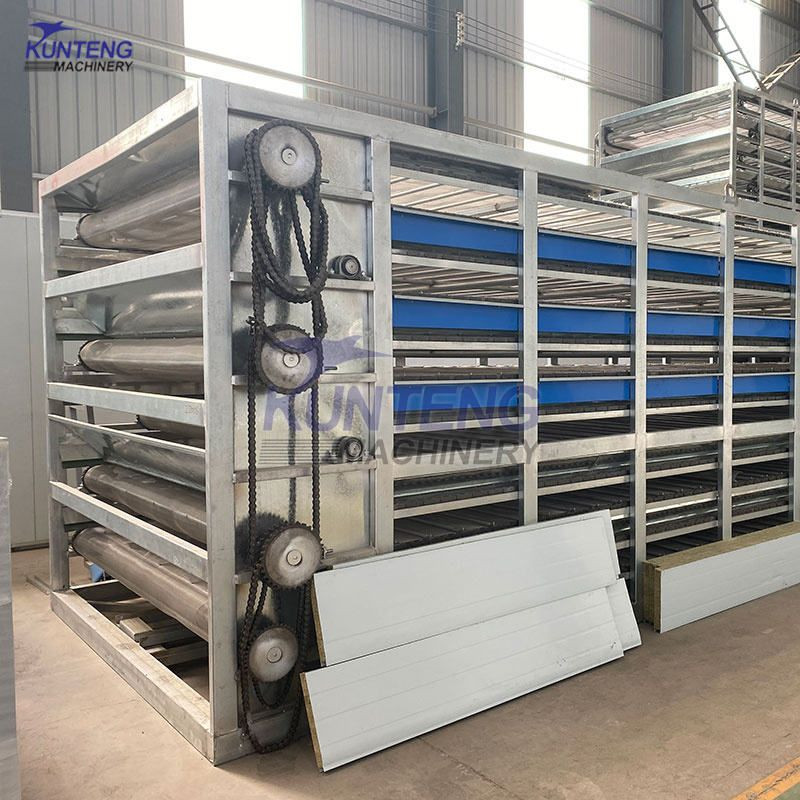

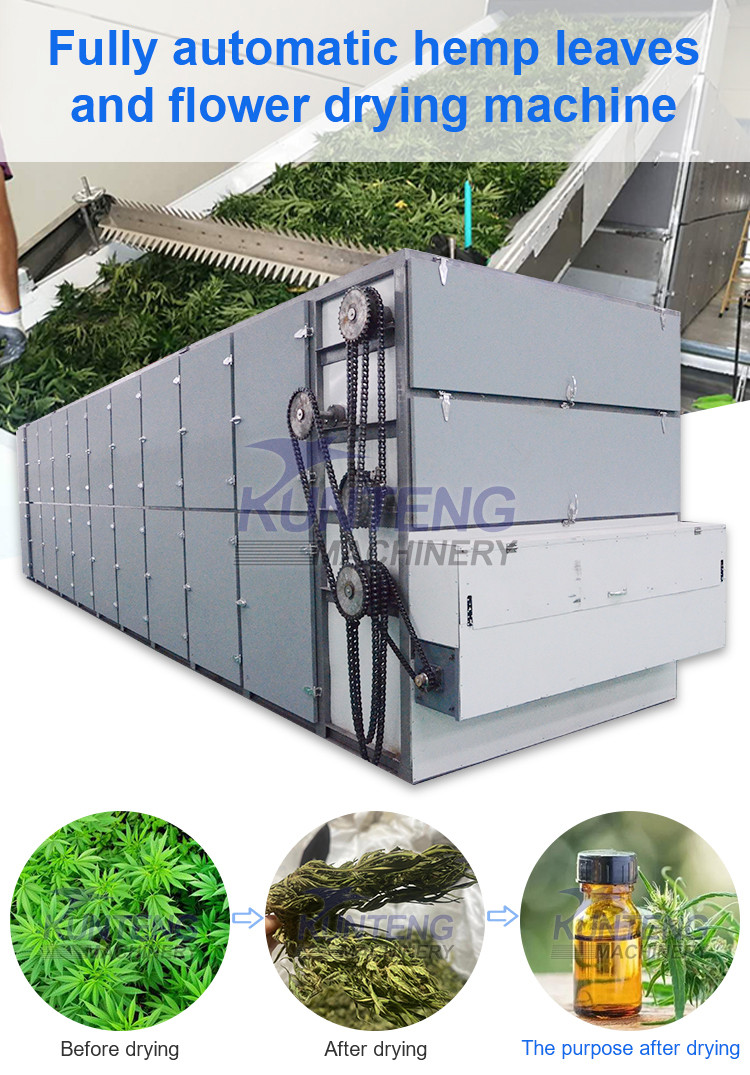

KUNTENG hemp dryer drying machine drying equipment adopts continuous components and has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, wet materials are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried materials are conveyed by a discharge conveyor.

Advantages:

1. can be widely used in industry, food and other fields.moisture resistance, corrosion resistance and no rust. 2. multi-layer circulation turnover and drying layer, with uniform and sufficient heat and mass exchange, 3. high production efficiency,can realize mass continuous production. 4. can be installed in the factory, with small floor area and convenient installation.

Main components of mesh belt dryer

Conveyor chain

The feeding conveyor and discharge conveyor both equipped with conveyor chain.

1.Using food grade 304 stainless steel mesh,

2.Wear - resistant and corrosion-resistant,

3.Health and Safety,

4.High tensile strength,solid and durable

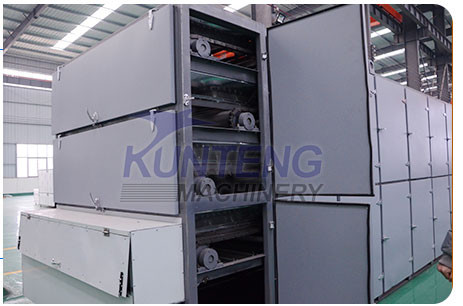

Observation door

The Drying box equipped with two observation door.

1.It is easy to opening and cleaning, 2.Convenient to observe and check material inside. 3.Easy maintenance and inspection

Temperature control system

Temperature control system adopts professional temperature control system, it can exact control temperature ±1℃ to ensure drying quality.

1. Fully automatic 2. Stable performance 3. Easy to operate

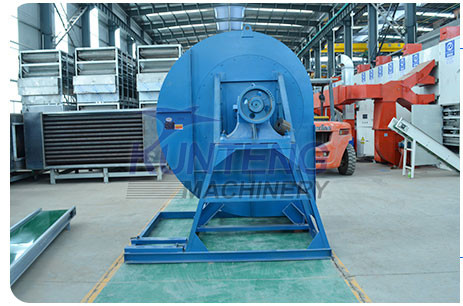

Fan of mesh belt drying machine

Mesh belt dryer equipped with high quality fan to smoothly transport the hot air into the drying box.

1.high efficiency, 2.low noise, 3.large air volume.

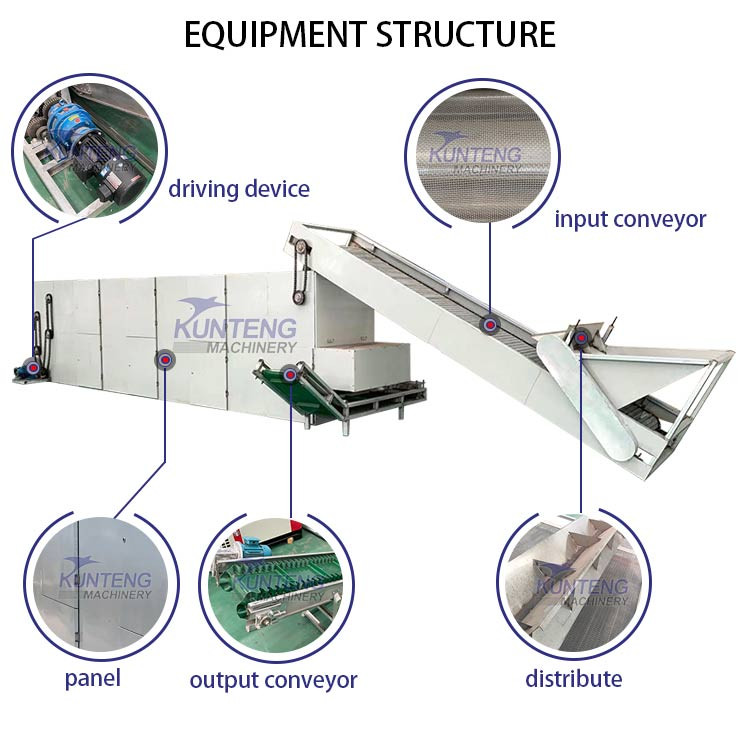

KUNTENG hemp dryer drying machine drying equipment has main components of Feeding conveyor, discharge conveyor, drying box, fan, control panel, heat exchange furnace, burner, connection pipes etc.

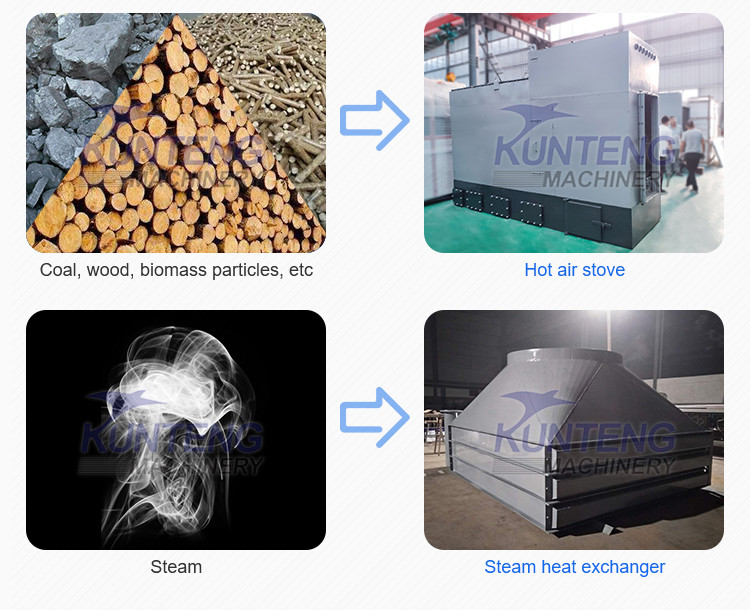

Mesh Belt Dryer Heat Source

The heat source:

The heat source of the dryer can be electric, coal, natural gas, diesel oil,wood, biomass particles, etc.

Product parameters

MODEL	KT-6m	KT-9m	KT-12m
Operation temperature	40-120℃
working time	24h
Contact area material(fine net)	304 stainless steel
Layers	1-7	1-7	1-7
Capacity	200-400kg/h	500-800kg/h	1000-1500kg/h

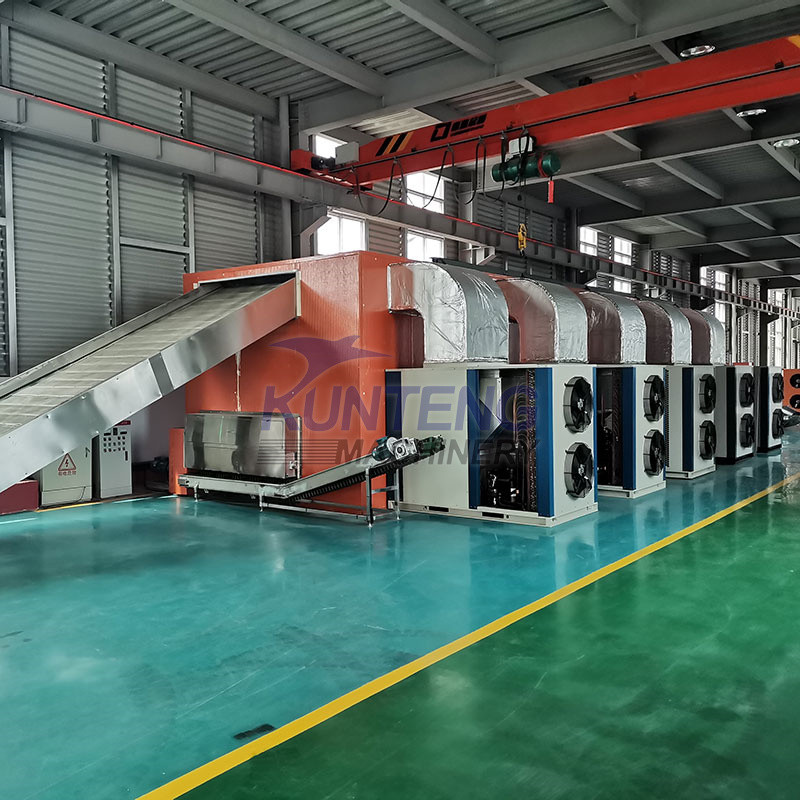

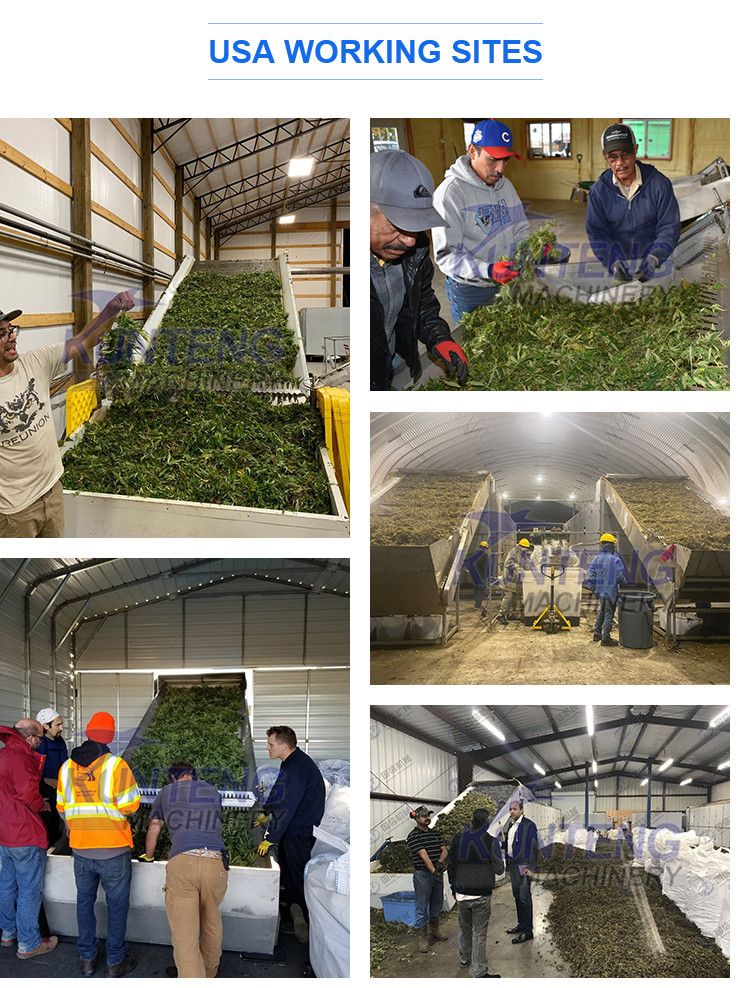

CUSTOMER SITE

Final use

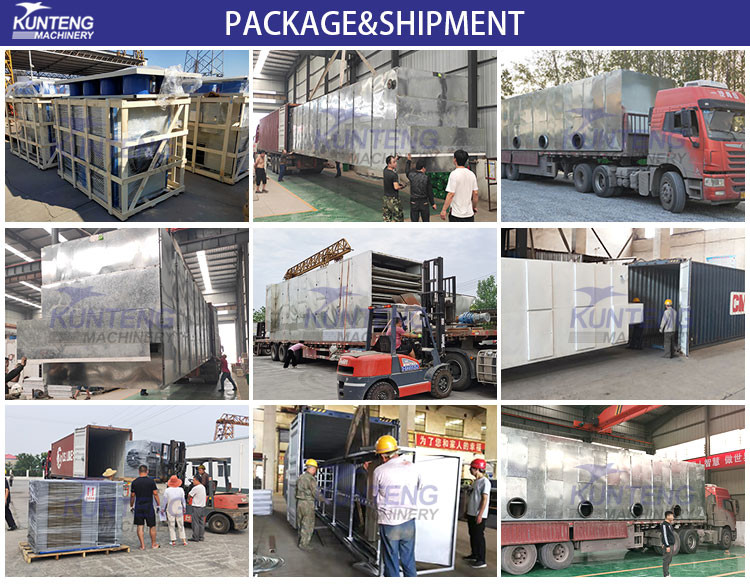

Packing and shipping

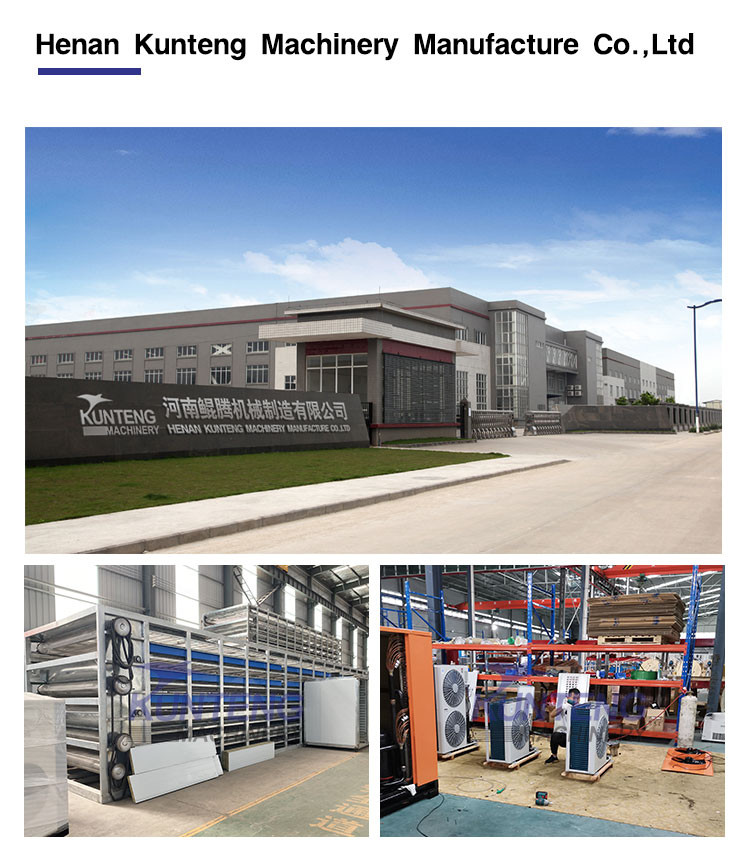

COMPANY PROFILE

KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable Air drying machine, hemp dryer drying machine drying equipment,Mesh belt drying machine,Heat pump drying oven for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.

FAQ

1. who are we?

We are a professional manufacturer in China, passed Alibaba field certification.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
