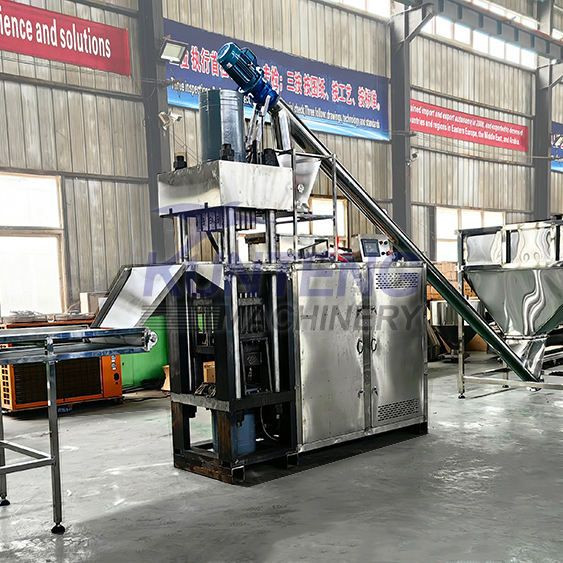

Integrated hydraulic forming machine charcoal pressing machine automatic stainless steel hydraulic machinery

Integrated Hydraulic Forming Machine Charcoal Pressing Machine Automatic Stainless Steel Hydraulic Machinery

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCT OVERVIEW

Automatic high performance chemical powder press stainless steel hydraulic press machine sodium carbonate briquetting machine

Introduction of stainless steel hydraulic press machine

There are many useless material in the world, like coconut shell, waste wood, fruit wood, hard wood, palm shell, nut shell, etc, these material all can become charcoal through carbonizing, then through some processing like crush, mix, then use stainless steel hydraulic press machine forming charcoal powder into different shapes and sizes of briquette, final product like cube shape, tablet shape, hexagonal, cylinder, or other customized shape, use for different field, like shisha hookah fuel, BBQ charcoal fuel, or other boiler fuel, etc. Then help people to earn more profits.

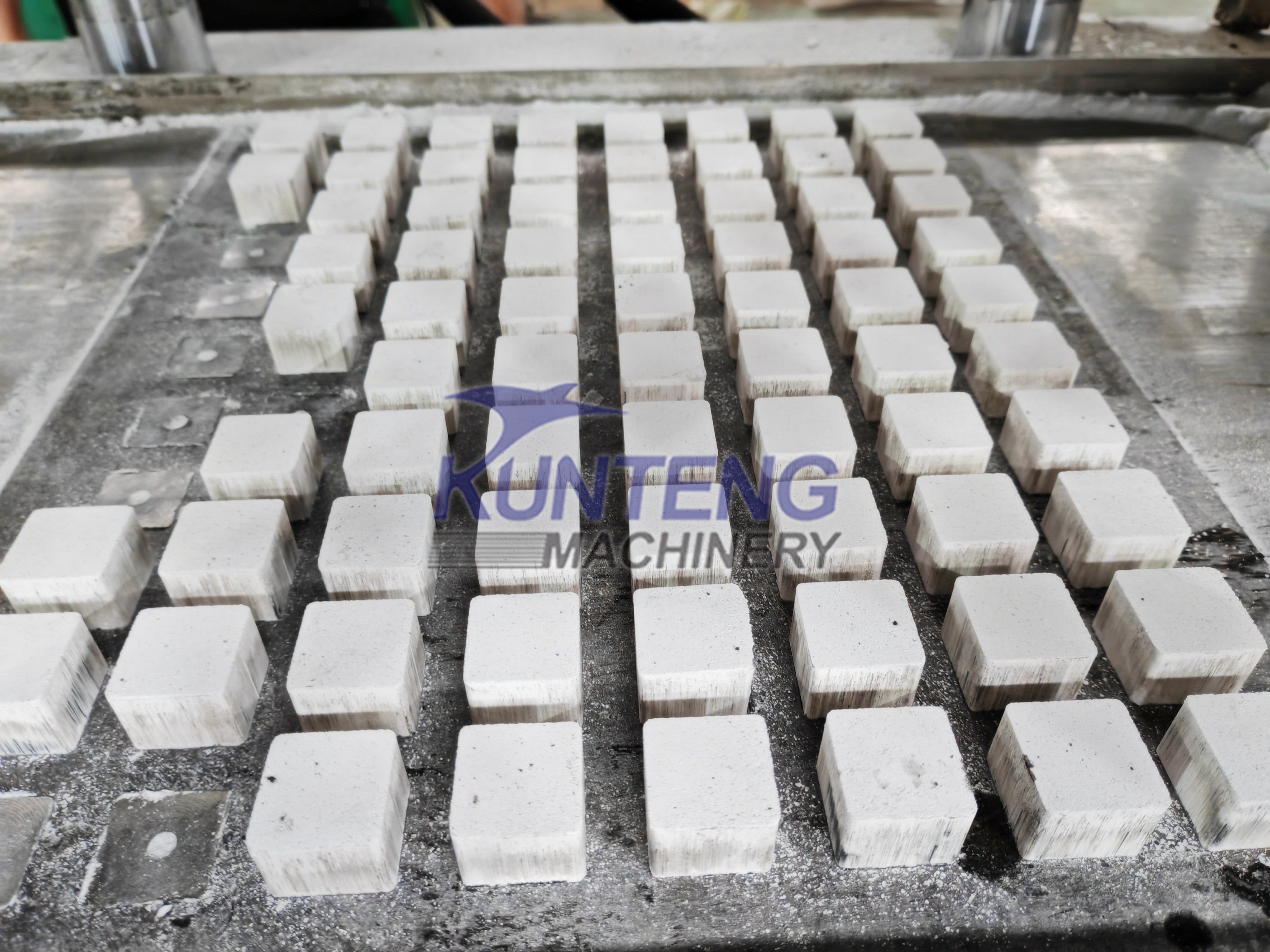

Also machine can press various chemical powder into shapes according to customer requirement

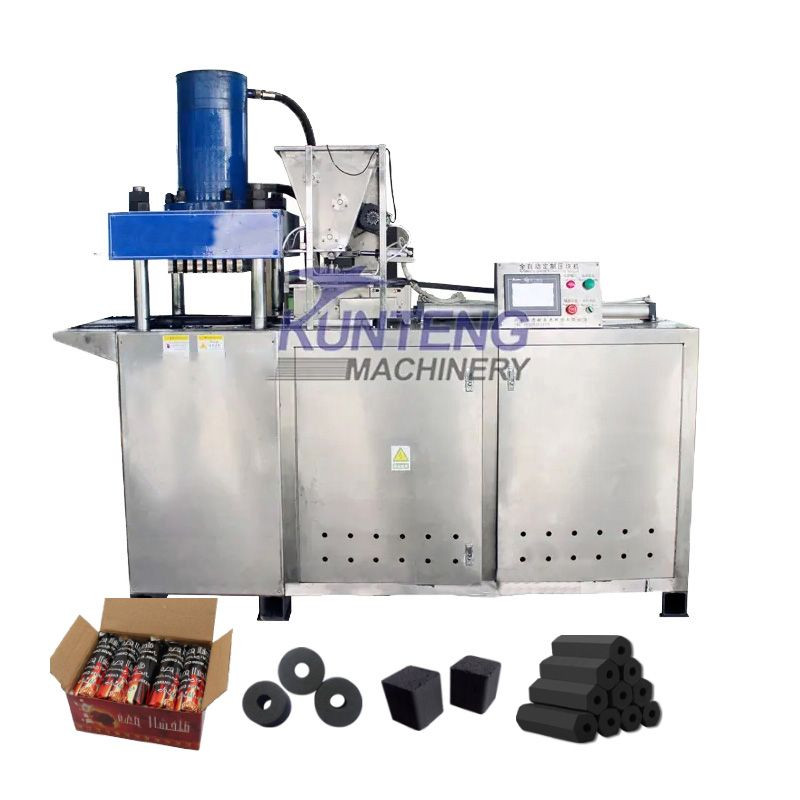

This machine is briquetting machine, forming powder into different shapes and sizes.

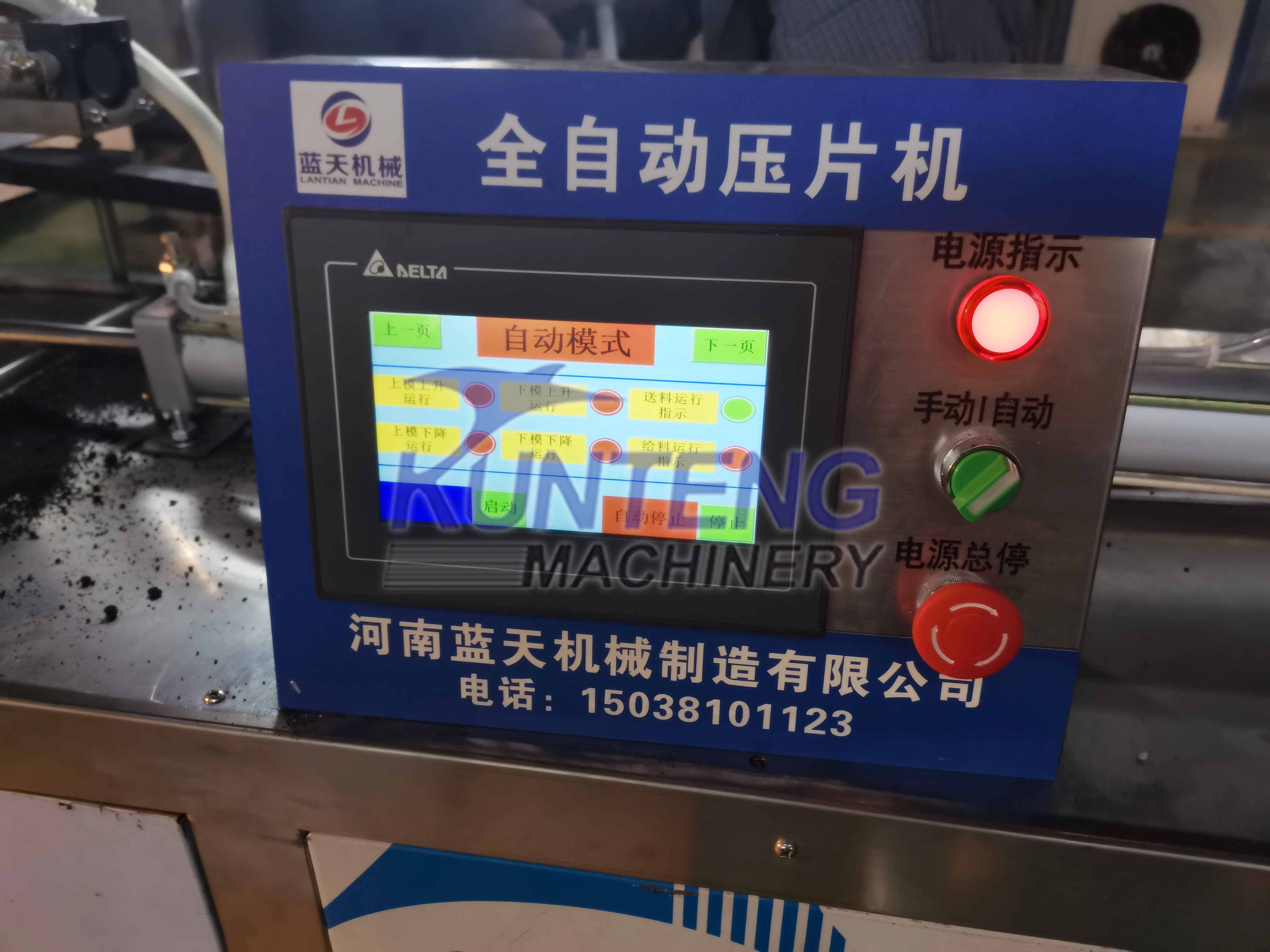

Total machine will be control by this PLC screen, it can control machine work auto or manual

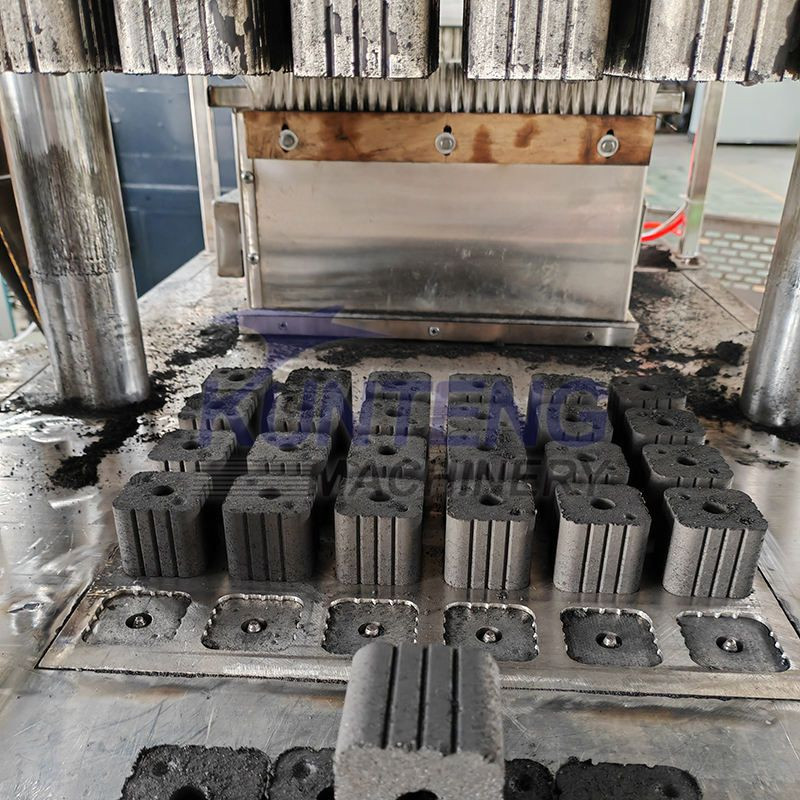

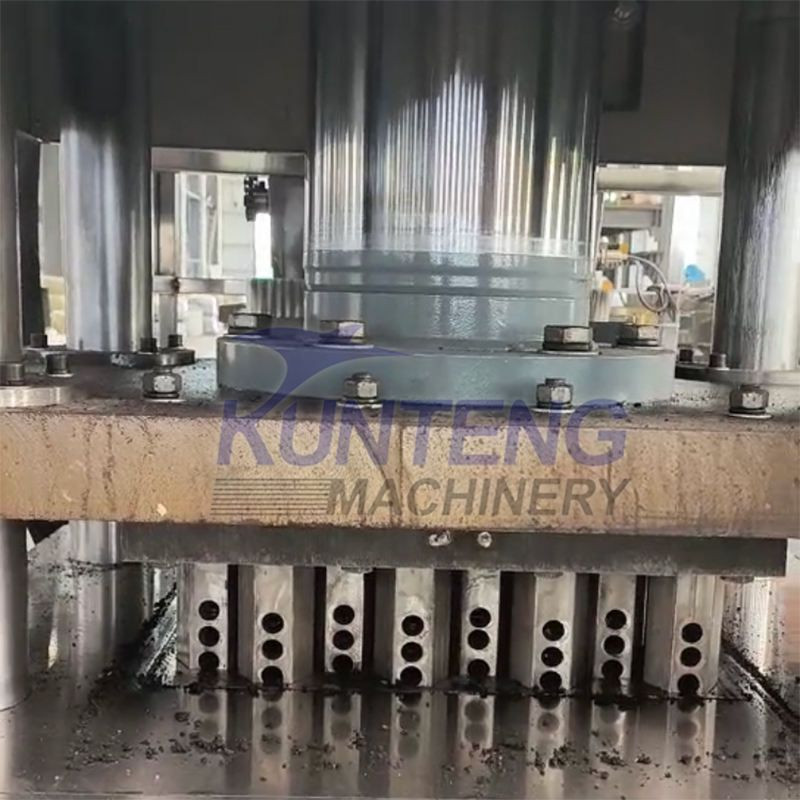

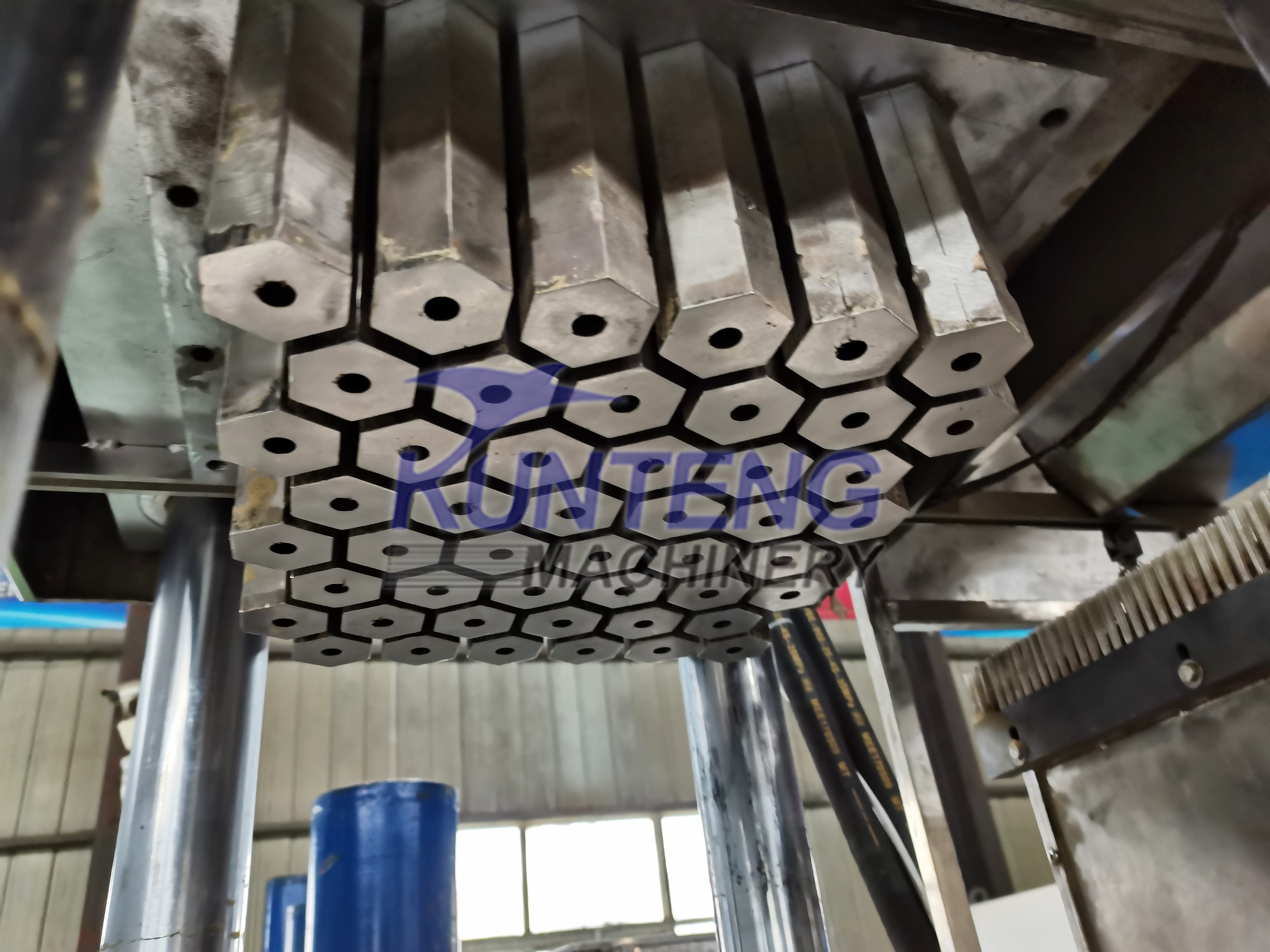

This is mold, also use stainless steel made, customized shape and size.

Teach formula

How to make easy burning fast burning briquette,

smokeless charcoal,

white ash after burning briquette.

PRODUCT SPECIFICATIONS

Model	JYP-300(Hydraulic pressure)	JYP-500(hydraulic pressure)
Materials	charcoal powders, coal powders, sawdust, any powders form Materials
Capacity	800-1000kg/h, depends on your materials and size of briquette	1000-1500kg/h, depends on your materials and size of briquette
Motor	15 kw	15kw
Height of briquettes	within 30 mm, diameter as your willing	less than 10 mm
Feeding materials	< 3 mm	< 3 mm

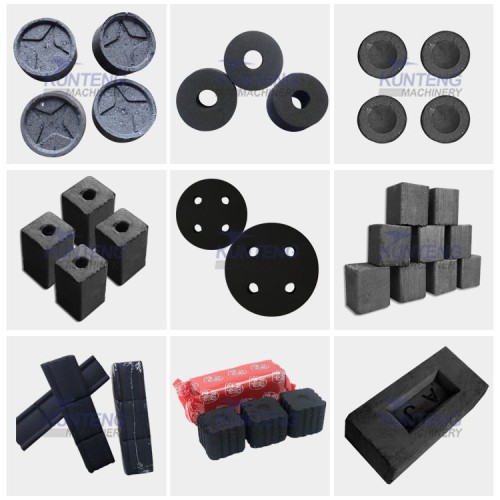

Briquettes shape	cube, round tablet or as customers’ request	cylinder, hexagonal or as customers’ request
Pressure	300 tons	500 tons
Overall size	25007202200 mm	26408002700 mm
Weight	2000 KG	3000 KG

DETAILS DISPLAY

Advantage of stainless steel hydraulic press machine

1. PLC control machine work auto or manual.

2. This kind stainless steel hydraulic press machine mold plate is bigger than old press machine, so capacity is bigger than old type.

3. Total stainless steel hydraulic press machine we use stainless steel made, include mold, featuring wear resistance and corrosion resistance.

4. Easy for clean, after one day finish working, can use water to clean, no problem.

5. This pressure is bigger than old type, so final product density will be high, long burning time.

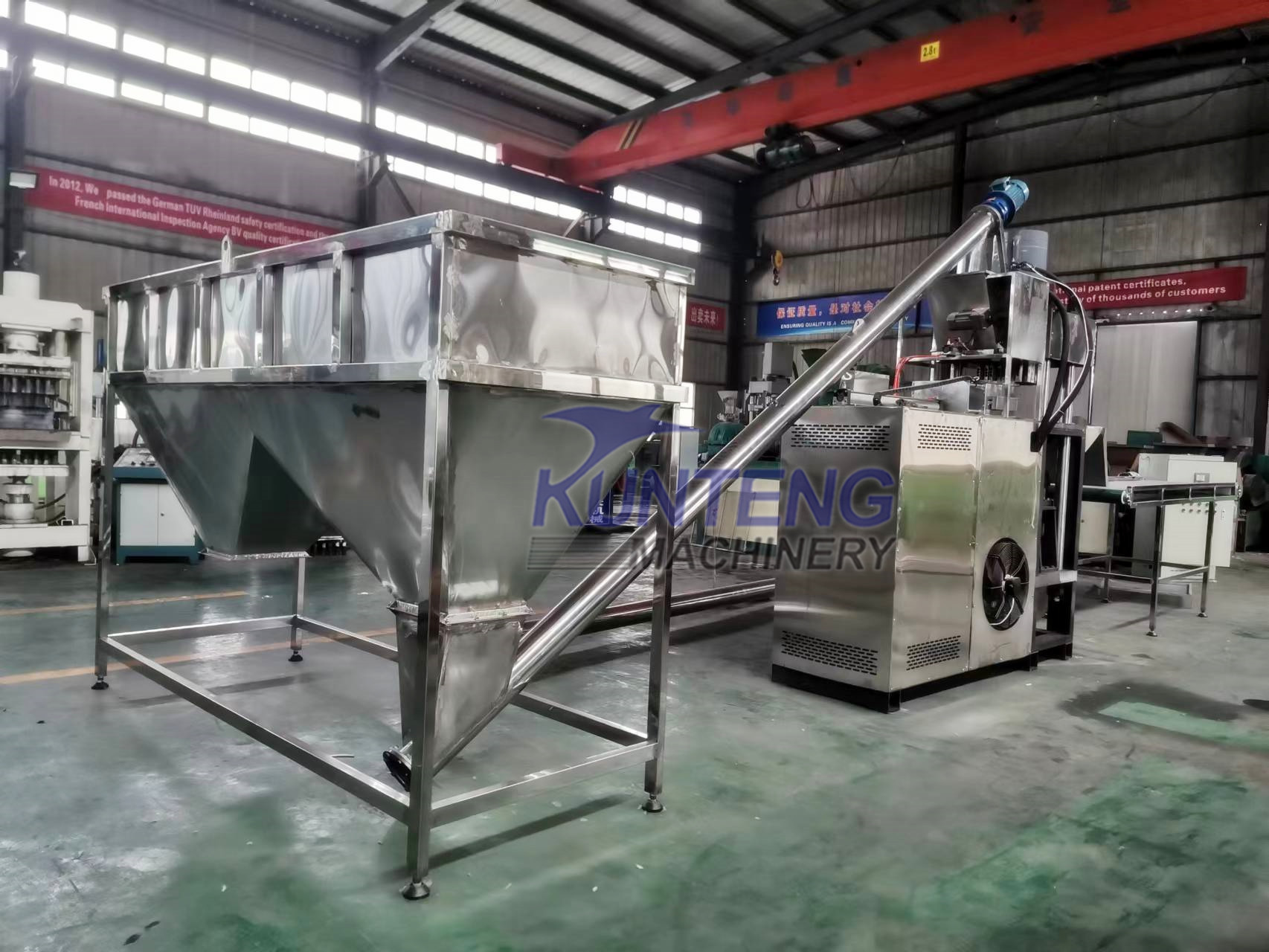

6. There is a mixing shaft inside the feed hopper to prevent difficult blanking.

7. Mold shape can be customized, also can make logo on it.

8. No need install, when receive machine, connect electric is ok.

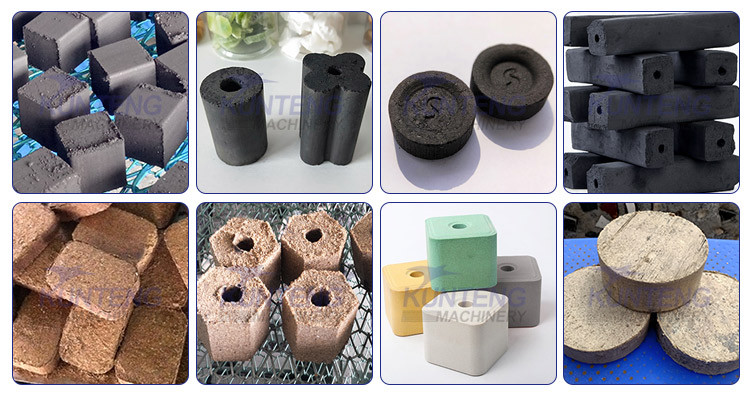

Suitable material and shape for stainless steel hydraulic press machine

Machine suitable for many material, like ready charcoal, coke, coal, mineral powder, and other kind material like coconut shell, nut shell, wood, sawdust, bamboo, these kind material need make carbonizing first and make become charcoal, then can through more processing and make briquette.

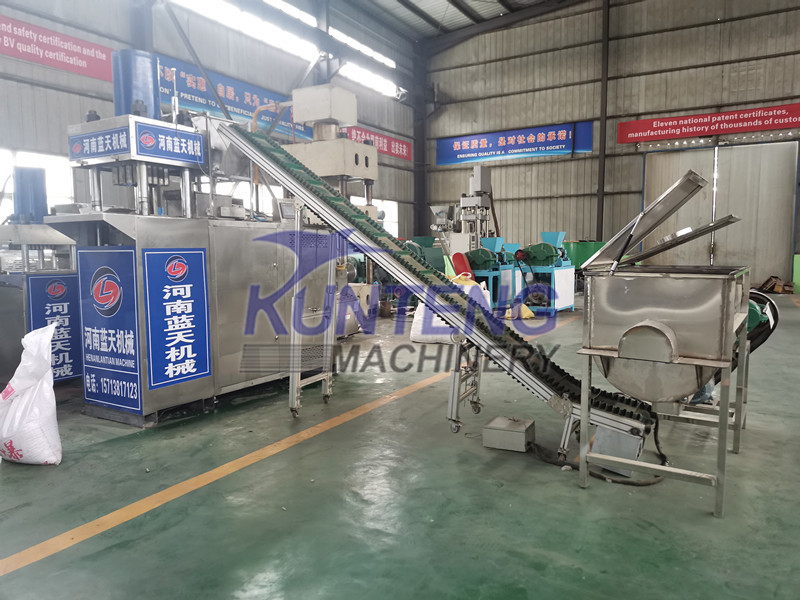

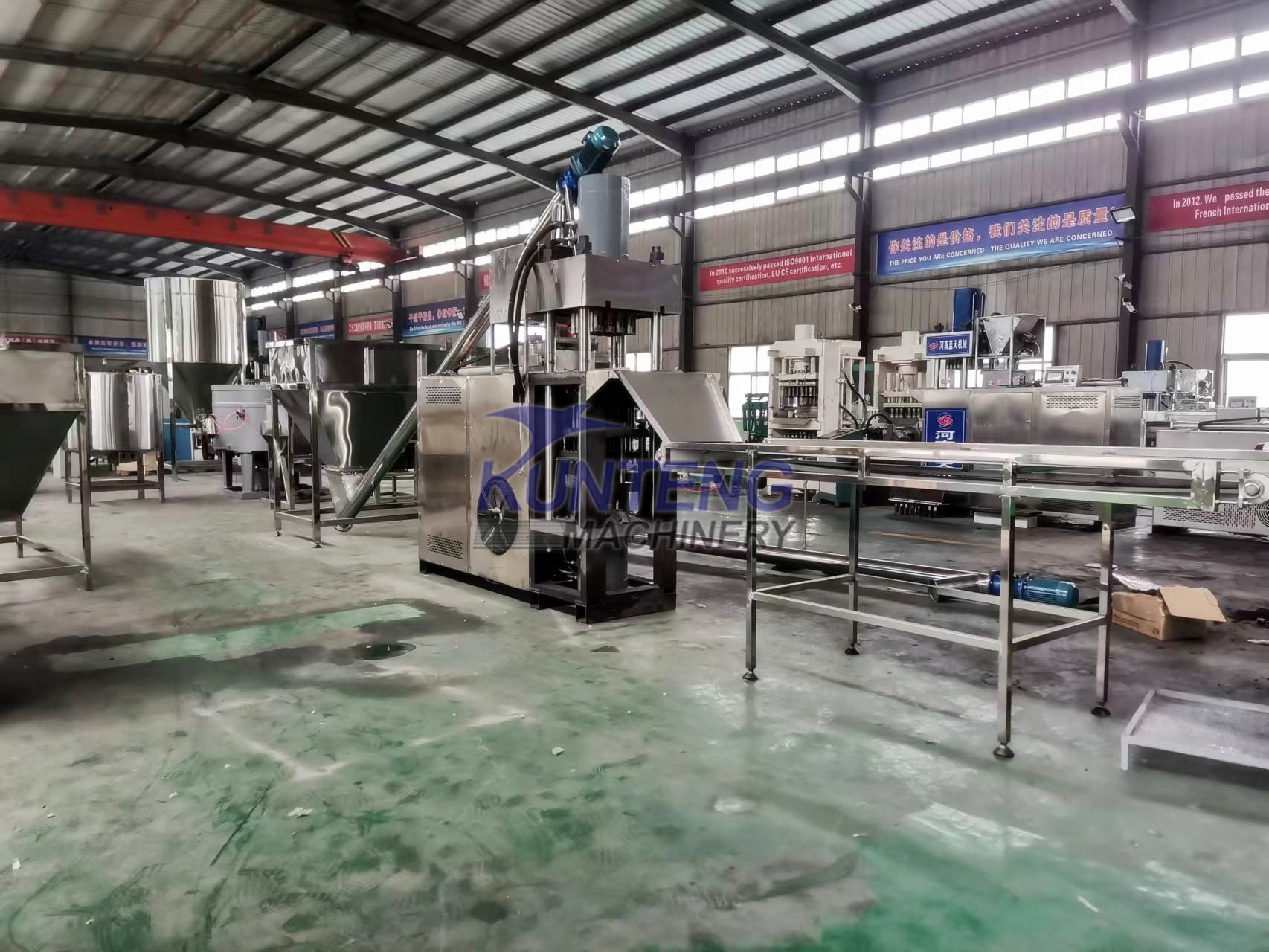

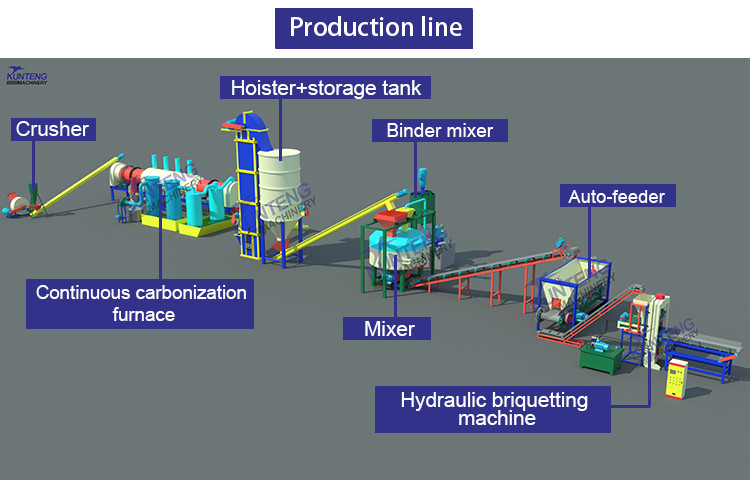

PRODUCTION LINE

Different customer needs is different, because it have different material, different capacity, different shape need make, so now i explain roughly production line for you, exact production line is according to your requirement make.

1. Make your material become charcoal by carbonizing furnace. (if is ready charcoal, will no need carbonizing)

2. Crush big size charcoal into powder less than 2 mm.

3. Owing to charcoal powder have no stickiness, so need add some binder into it and mix.

4. After mixed material will going into stainless steel sawdust charcoal briquette and forming into different shapes and sizes.

5. The last step is make briquette dry, can use our dryer machine, also can use sunshine to dry.

RELATED PRODUCTS

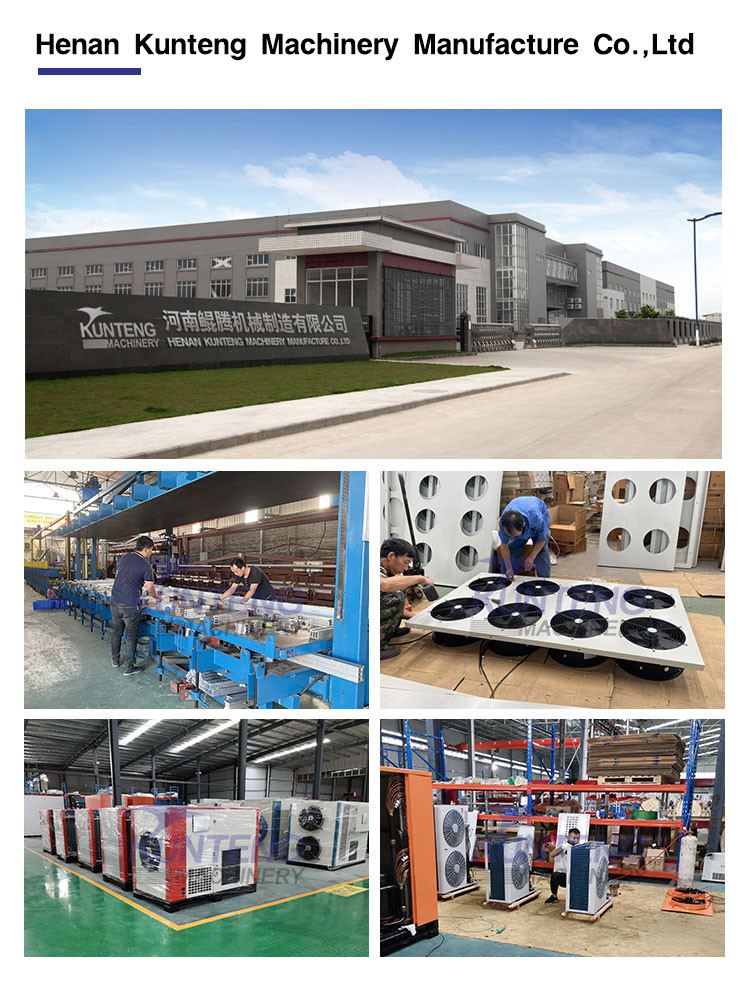

COMPANY PROFILE

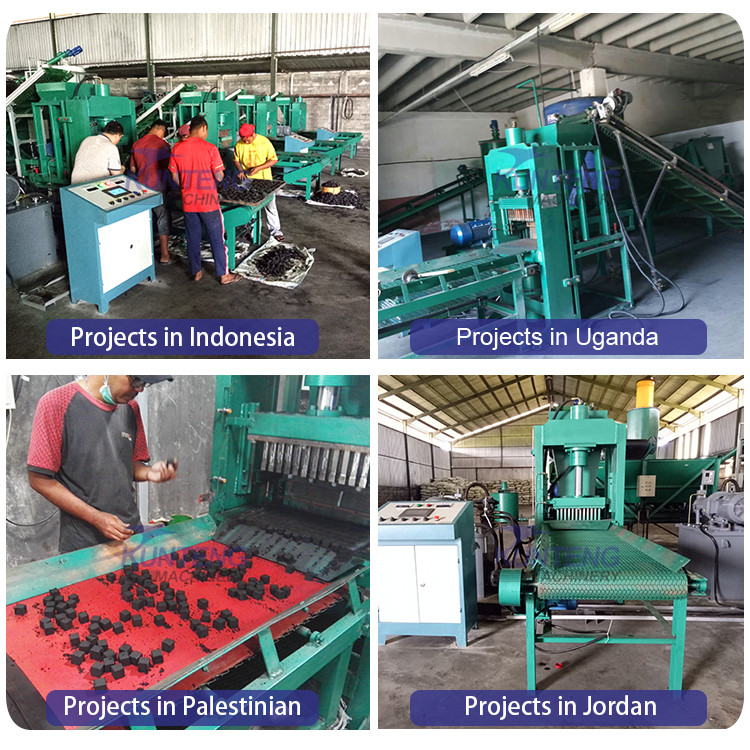

Henan Kunteng Machinery Manufacturing Co., Ltd. have 30 years experience on charcoal equipment making, and got many certifications, like CE ISO, BV and other patents, and do export more than ten years, export Indonesia, Russia, Dubai, Lebanon, Jordan, Iran, Laos, India, Canada, Australia, Nigeria, normally middle east area, Southeast Asia area is more.

PACKING & SHIPPING

SHIPPING:

Normally if single carbon powder bbq briquette charcoal machine, will pack by wooden case, use LCL loading, if production line
machine loading, will loading into container directly, use FCL loading.

PAYMENT:
40% deposit, balance payoff before delivery.
