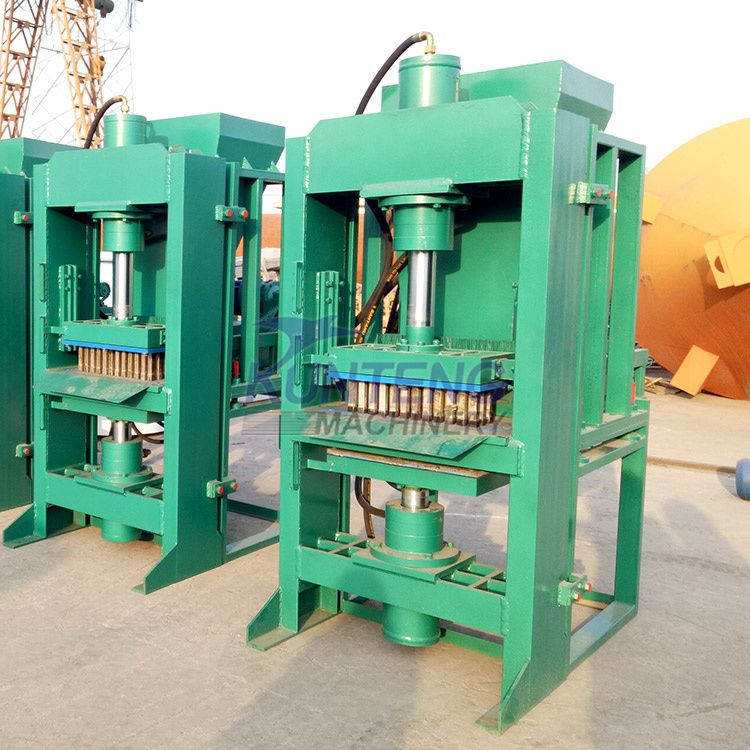

Hydraulic Charcoal Forming Machinery Hookah charcoal Seedling Block Pressing Machine Coal Forming Machine

Hydraulic Charcoal Forming Machinery Hookah Charcoal Seedling Block Pressing Machine Coal Forming Machine

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCT OVERVIEW

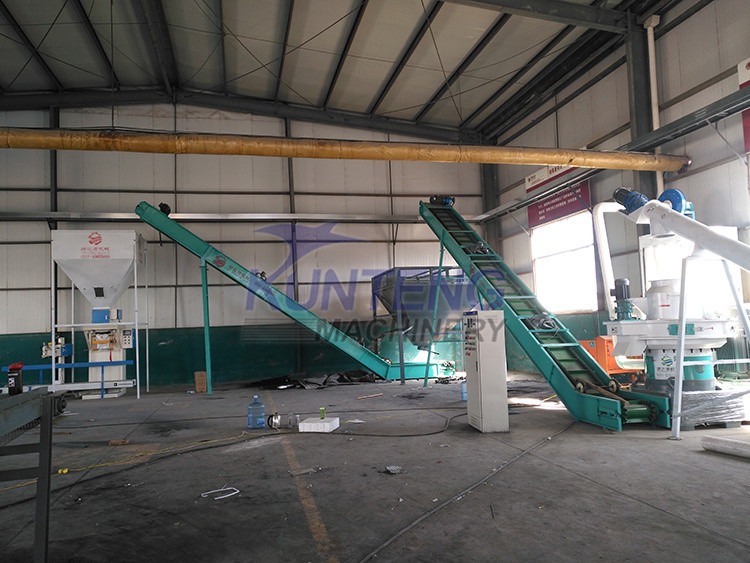

CUSTOMER SITES

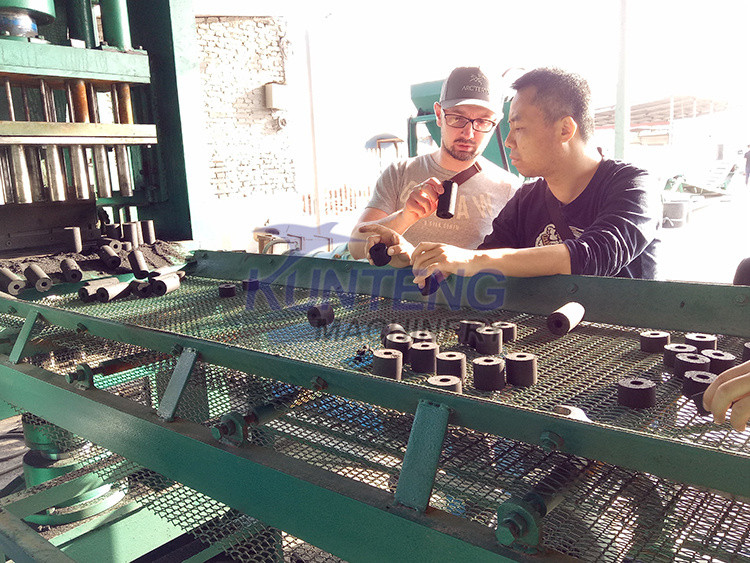

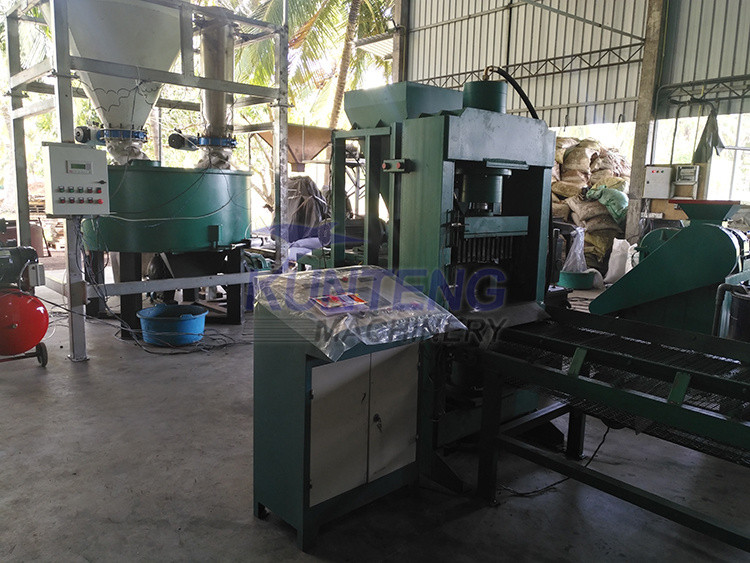

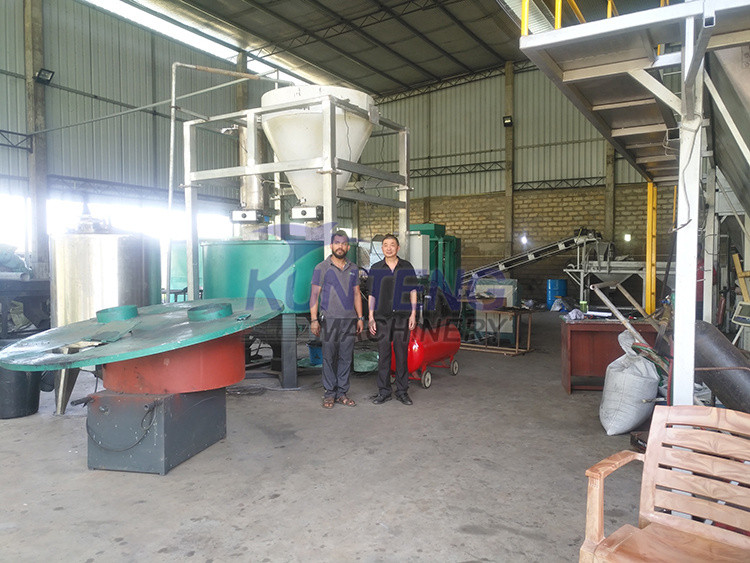

Charcoal briquette equipment production line for Vietnamese customers

Our team has more than 20 years of experience in charcoal equipment industry, and more than 100 formulas of barbecue charcoal, hookah charcoal, shisha charcoal, smokeless carbon, flammable carbon, pulverized coal, anthracite, bituminous coal and etc. According to customers’ needs, plant size, capital situation. We can customize a complete set of production line solutions, teach experience and formula for free, and teach you how to make high-end charcoal in person.

DETAILS DISPLAY

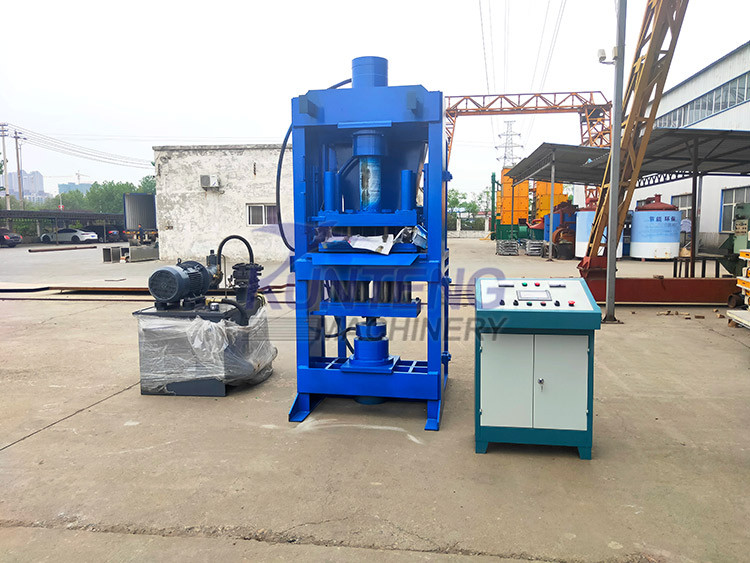

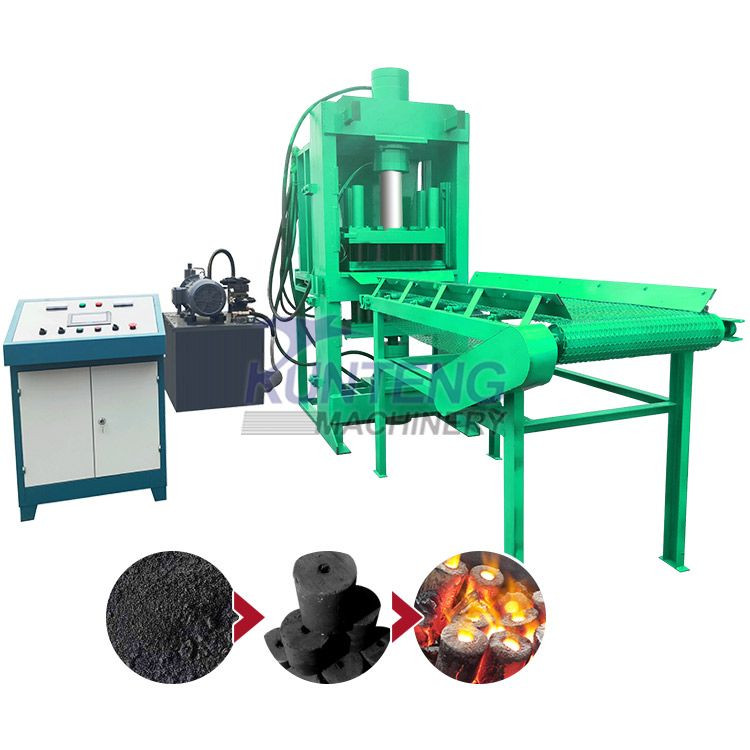

CHARCOAL BRIQUETTE EQUIPMENT

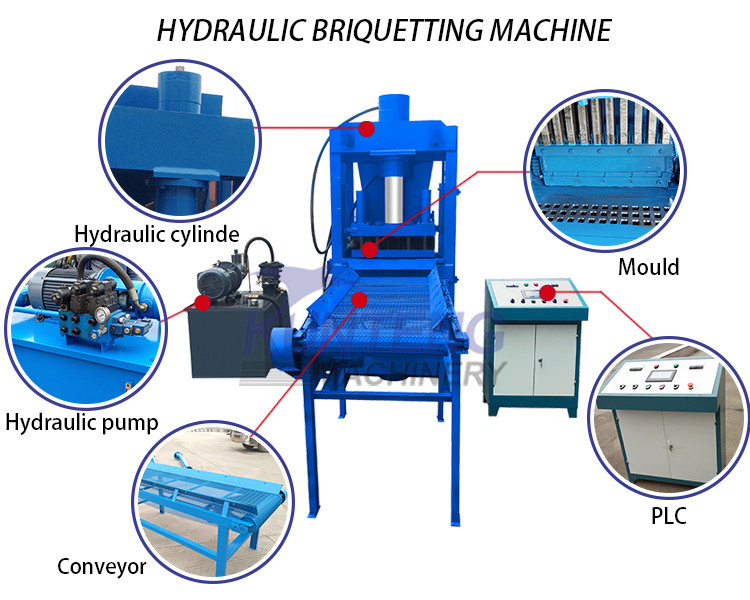

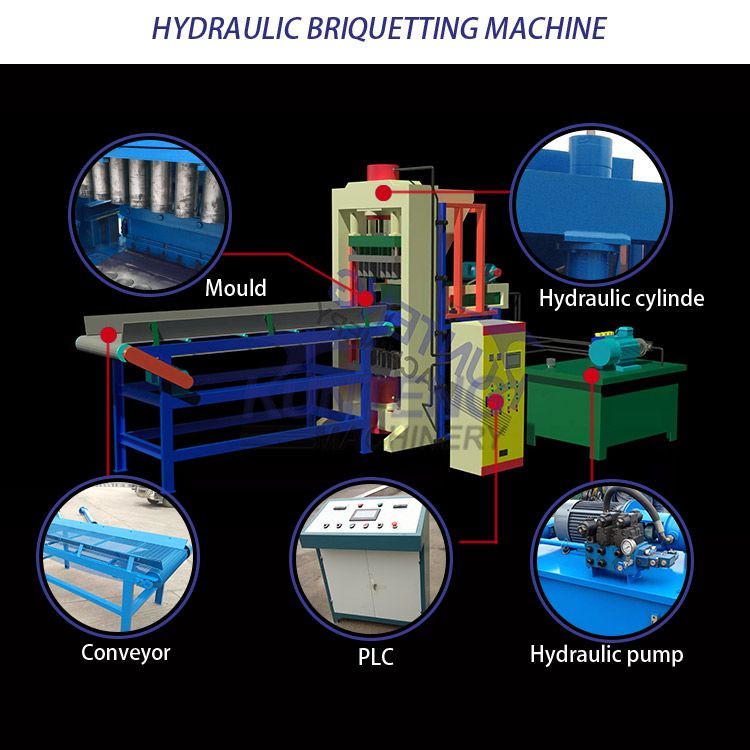

Charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line have the electrical system of power mechanism and adopts button centralized control, which can realize three working modes: adjustment, manual and semi-automatic. The working pressure, pressing speed and slider stroke of the machine can be adjusted according to the process needs, and can complete three process modes: ejection process, without ejection process and stretching process. Each process can be selected from two process actions: constant pressure and constant range. The constant pressure forming process has pressure holding, time delay and automatic return after pressing.

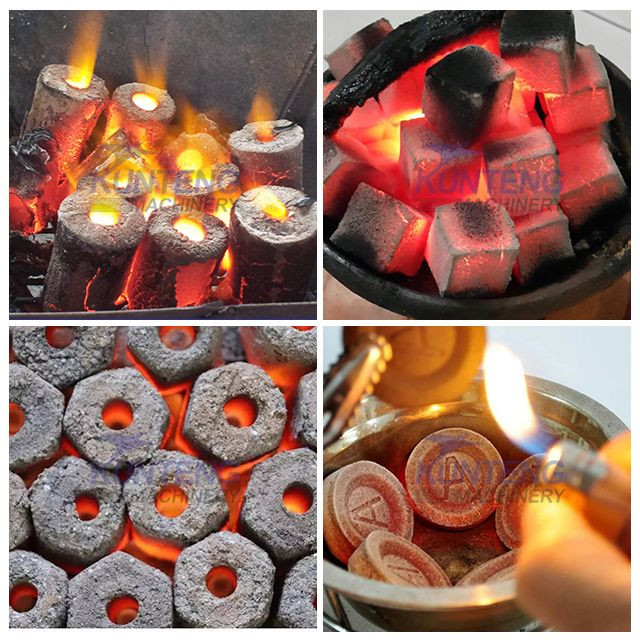

Charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line can press a variety of powder materials like charcoal powder, coal powder, coke powder, wood powder and other mineral powder into round, square, hexagon or other shape tablets with high density. Especially, it is widely used in making charcoal briquettes field for shisha charcoal, BBQ charcoal.

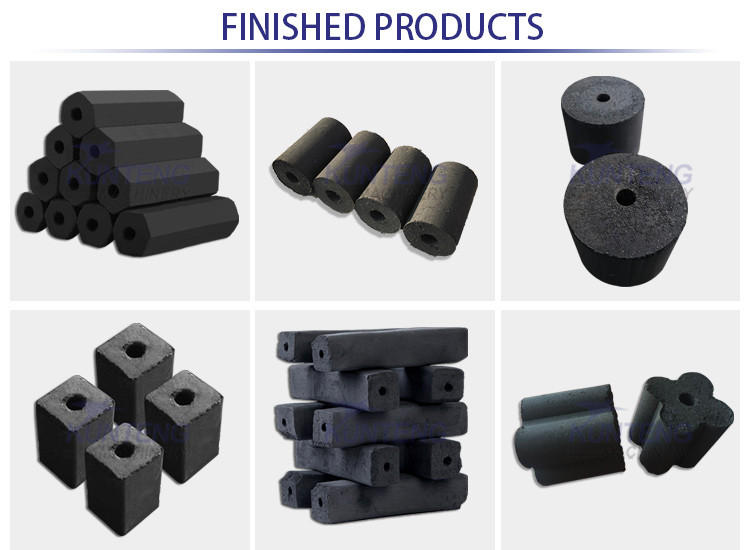

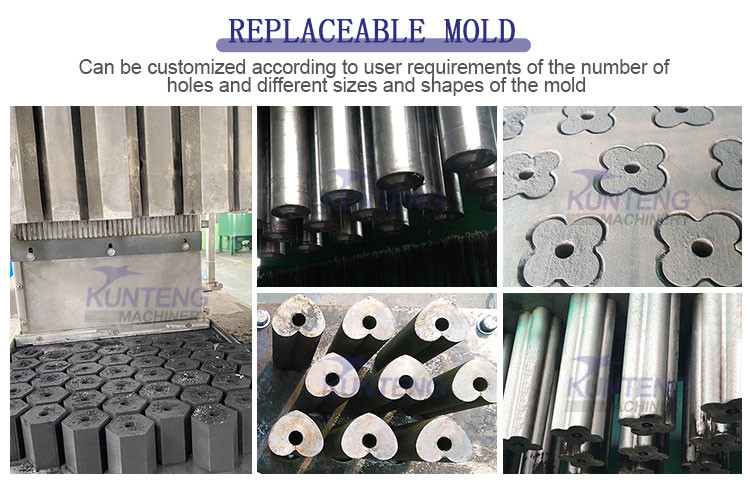

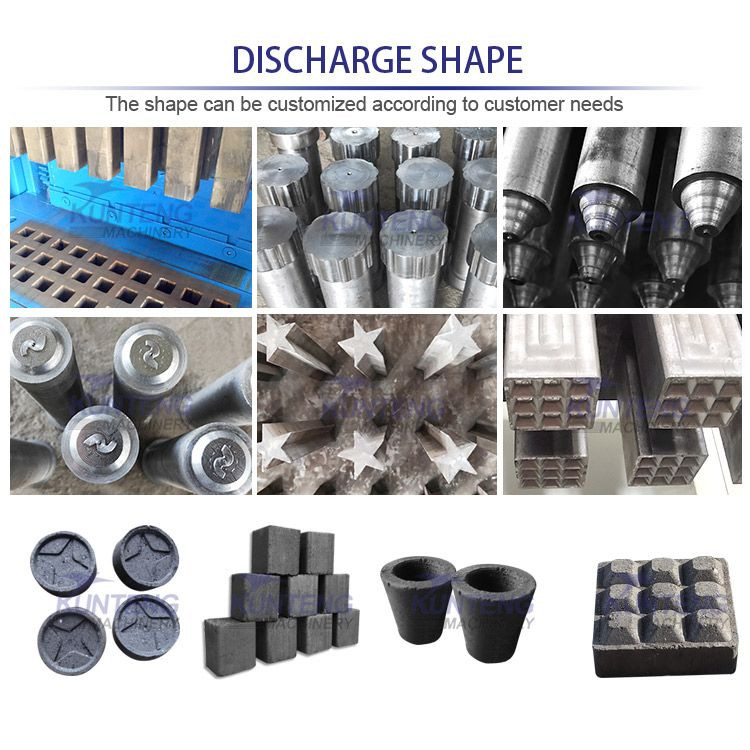

Charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line can replace supporting molds to produce different shapes of blocks, including honeycomb, square, round, triangle, holes or no holes and so on. We can also design and manufacture special moulds according to customer requirements. Combustion process is tasteless, smokeless, high heat, low noise, less dust.

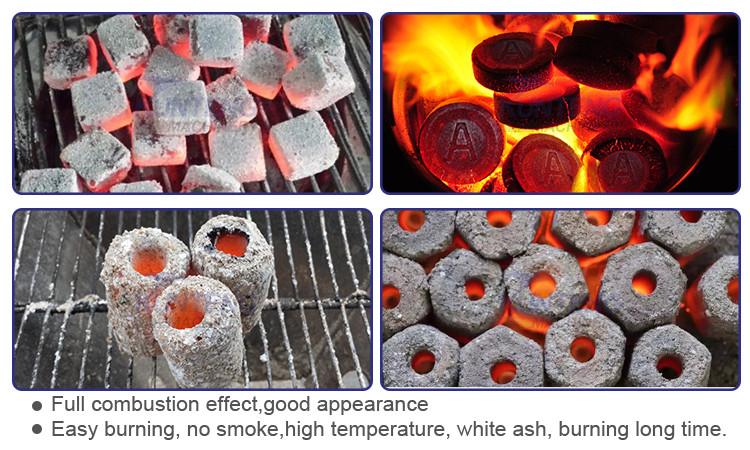

Combustion process is tasteless, smokeless, high heat, low noise, less dust.

This series of charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line are multi-functional hydraulic press. It is suitable for stretching, bending, flanging, cold extrusion, blanking and other processes of plastic materials. It is also suitable for correction, press fitting powder products, abrasive products and plastic products and insulating materials.

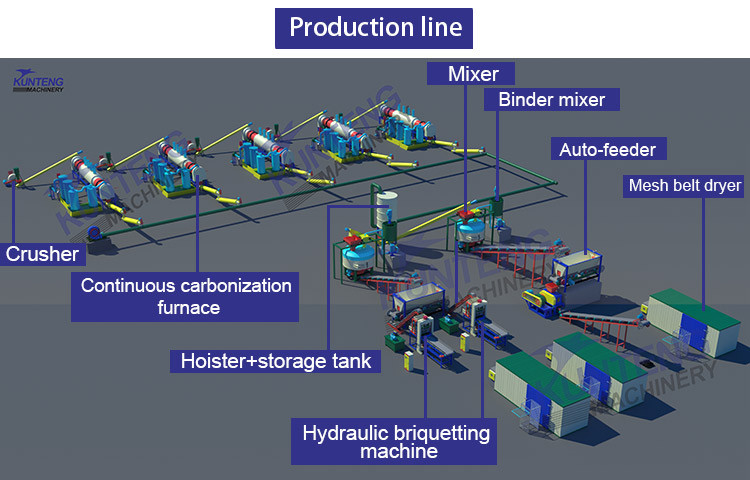

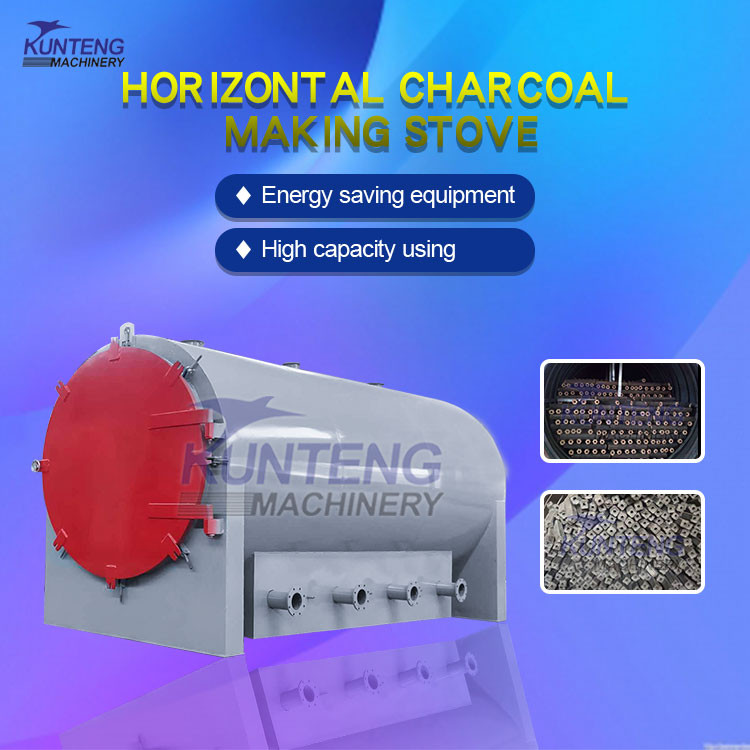

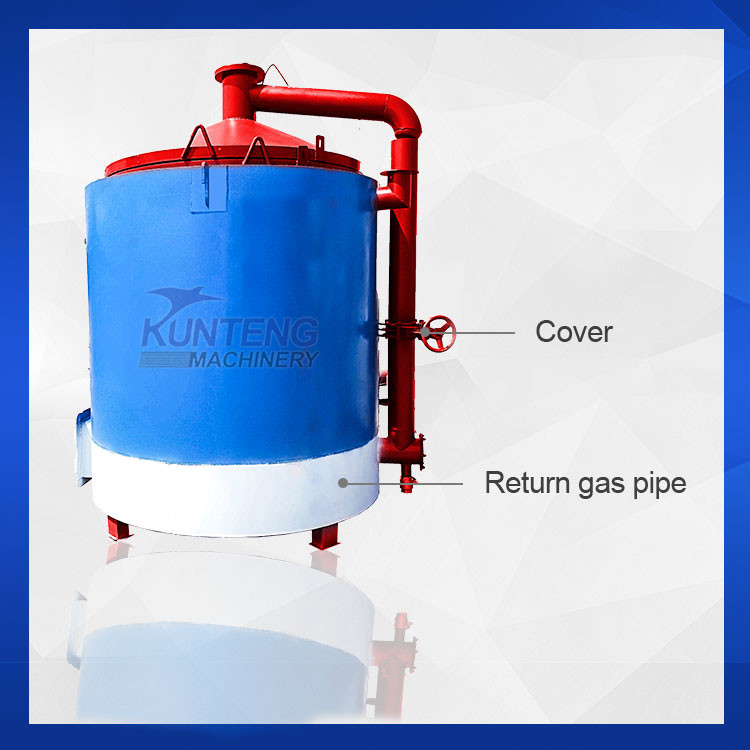

Our team could customize reasonable and efficient production line according to customers site, raw materials, output and other requirements. Firstly, wood and other biomass are carbonized into carbon by carbonization furnace and enter hoister and storage tank. According to customers raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace. Secondly, carbon can be crushed into carbon powder by dust-free grinder. Thirdly, carbon powder are stirred by double shaft mixer and mixer. In the end, carbon powder can be be shaped by charcoal briquette equipment and enter the dryer by drying. The whole charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line are fully automatic.

PRODUCT SPECIFICATIONS

Model	JYP-1
Motor	15+2.2+0.75 KW
Capacity	480pieces/h
Pressure	100-200tons
Mold	customized
Briquettes shapes	Round shape, cube,shape,or customized
Oversize	3.23.02.65m(including oil pump, PLC, discharge conveyor, host machine)
Weight	3000kg
Packing	12-14cbm

ADVANTAGES

1. The hydraulic connecting valve has long action and reliable service life.
2. Through the computer optimization structure design, the three beam four column structure is simple, economical and practical.
3. Independent electrical control system, reliable operation, intuitive action and convenient
maintenance.
4. Button centralized control is adopted, with three operation modes: adjustment, manual and semi-automatic.
5. Through the selection of operation panel, two operation processes of constant range and constant pressure can be realized, and it has the function of pressure maintaining.

OUR SERVICES

COMPANY PROFILE

KUNTENG Machinery Co., Ltd. serves the hydraulic press industry and has mature experience in research & development, design, manufacturing and installation. Machinery has cooperated with many manufacturers in China and other countries to provide hydraulic machinery equipment for the production lines of many manufacturers.Machinery pays attention to customer applicability and product research and development, and the level of production skills is perfect. We undertake the design and manufacturing of various types of charcoal briquette equipment, wood sawdust charcoal forming equipment and coal charcoal briquette production line.

FAQ

Q1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q2. why should you buy from us not from other suppliers?
Our team has mature experience in research & development, design, manufacturing and installation. Every process is strictly
controlled in order to provide you the best products.

Q3.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to
provide customers better quality, better price, and better service".
