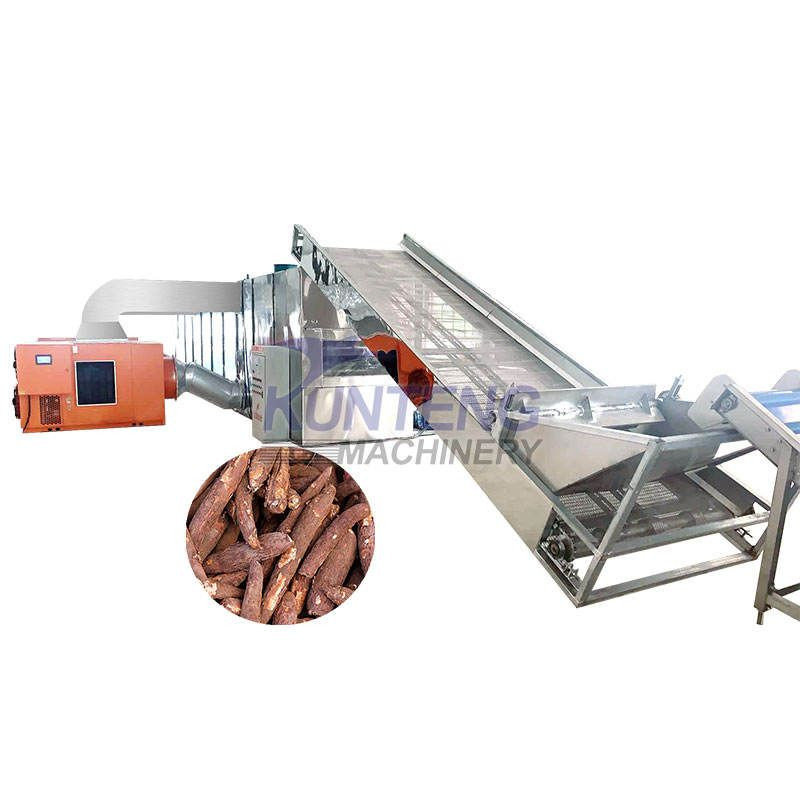

High Efficiency And High Output Vegetable & Fruit Cassava Continuous Work Dryer Mesh Belt Drying Machine Equipment

Product Review | Top Rated

    Additional Information

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type

Description:

产品描述

海带烘干机的生产描述

网带干燥机广泛应用于食品、农产品、脱水蔬菜、饲料和化工材料及其他加工行业。
作为专业的网带干燥机制造商,昆腾机械在过去30年里为全球客户提供了一站式干燥解决方案和完整的干燥设备。

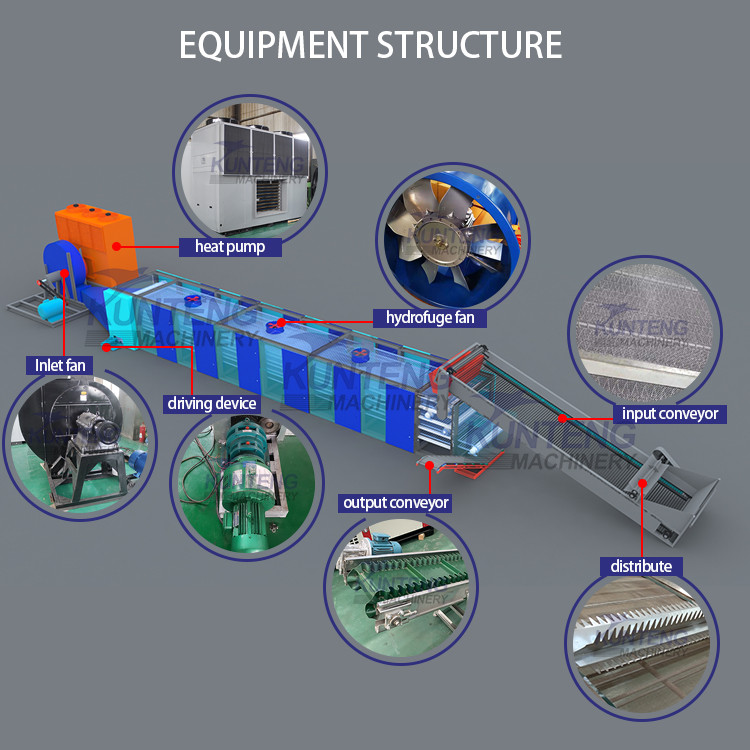

食品干燥机的结构

食品网带干燥机的主要配件有:进料输送带、出料输送带、干燥箱、风扇、控制板、热交换炉、燃烧器、连接管等。
产品应用

海带网带干燥机的应用

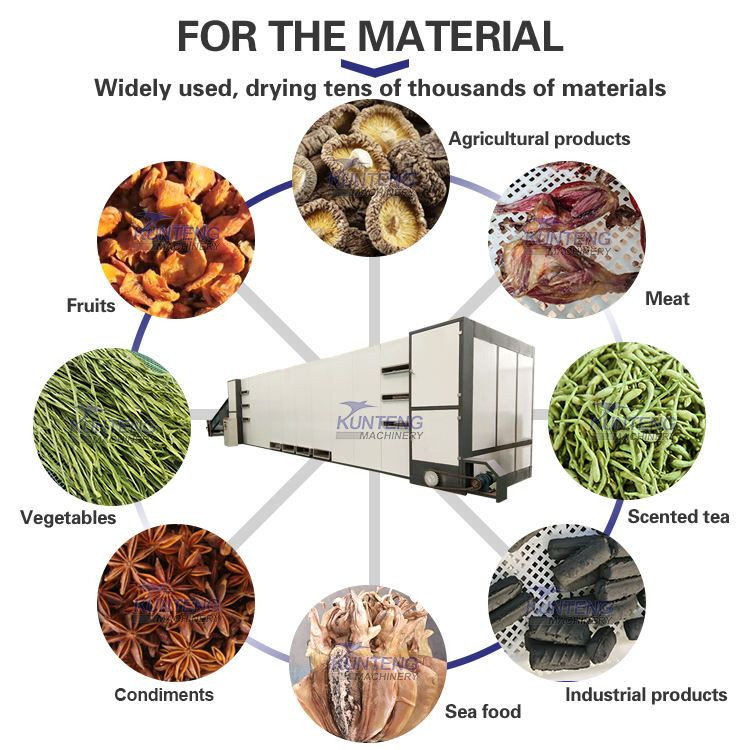

Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc. Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc. Chinese herbal remedy:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc. Others:Lily, rose, peony seed,fennel seeds,etc.
Working Principle

The working principle about the drying machine

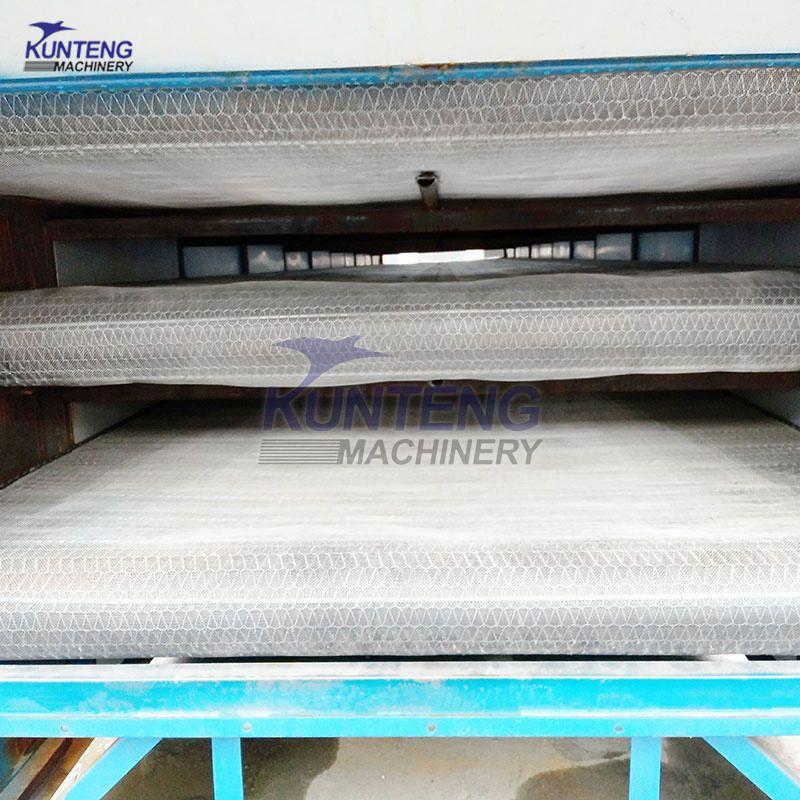

The raw material are transported by the feeding conveyor to the inside of the dryer. The material passes from the first layer to the last layer via the conveyor belt, and the dried material is conveyed by the discharge conveyor. The drying machine is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer. The hemp dryer not only according to heat to dry, but also according to strong air. So it can increase the drying efficiency and drying time.
The technical parameters of mesh belt dryer
Model
KT8-2-4
KT9-2-4
KT10-2-4
KT12-2-4
Layer
4 layers, 5 layers, 6layers
Material thickness
10-70mm
Drying temperature
40-120℃
Drying time
0.5-5hours
Moisture reduce
75% to 8% (Customized)
Main machine motor
1.5kw
1.5kw
2.2kw
3kw
Hot air draft fan
15kw
15kw
22kw
22kw
Discharing conveyor
B500(0.12kw)
B500(0.12kw)
B500(0.12kw)
B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

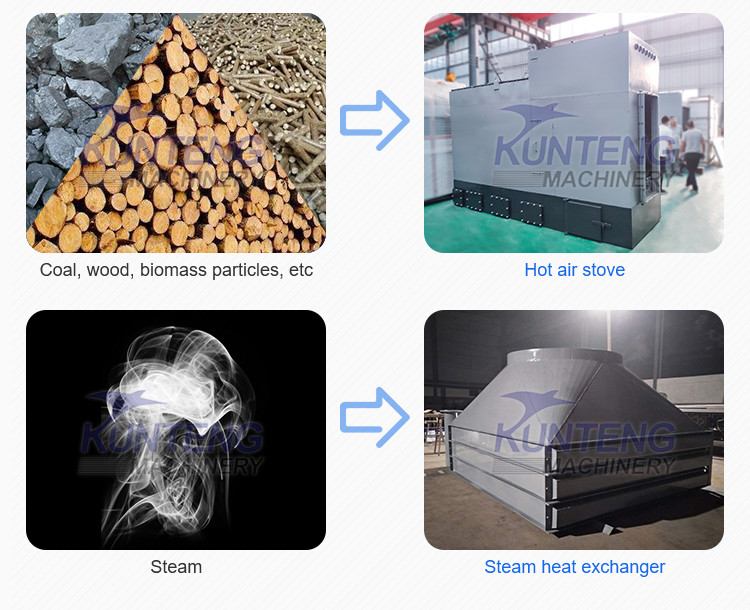

Heat source of mesh belt dryer

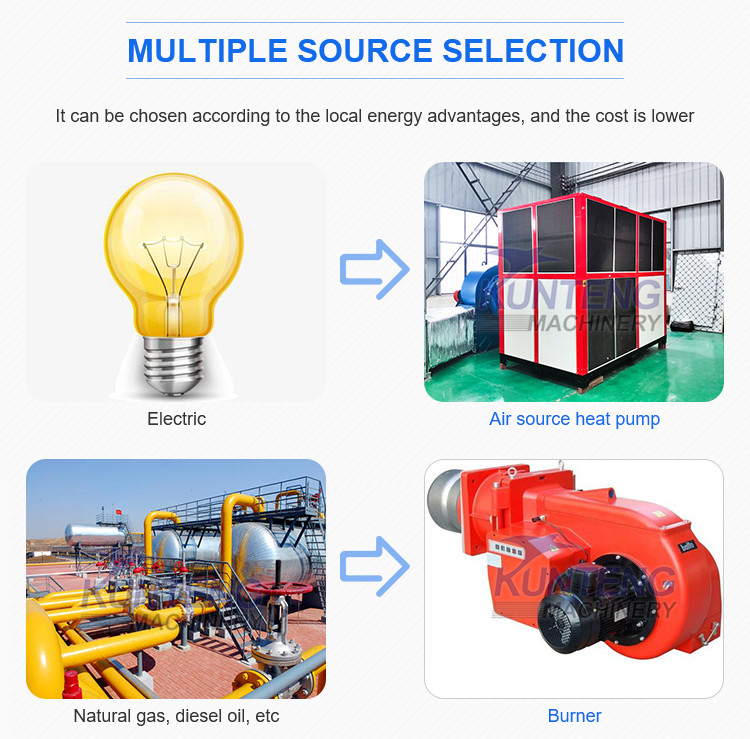

The heat source of the hemp dryer can be used as follows: electricity, natural gas, biomass pellets, wood, coal, diesel, etc. The appropriate heat source can be selected according to the specific situation.
Related Products

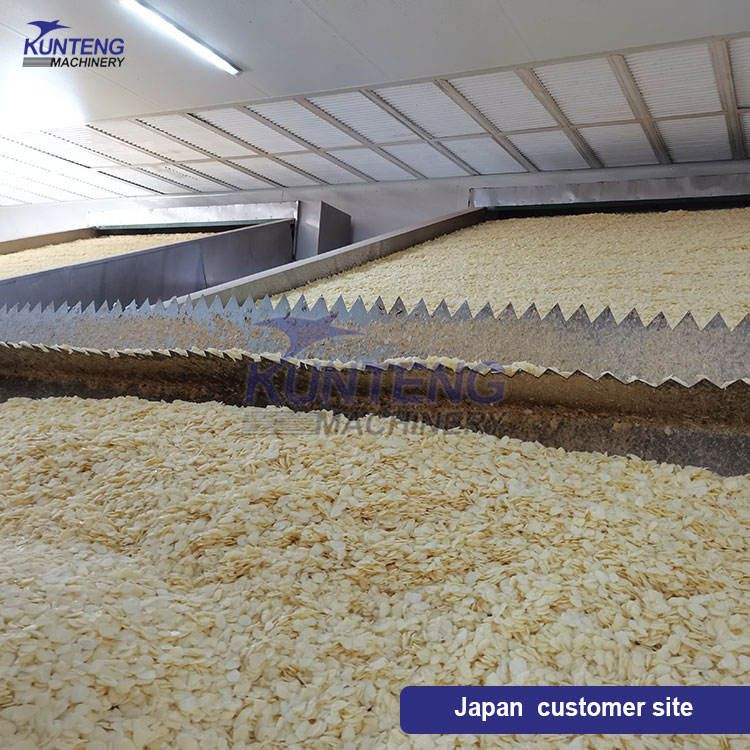

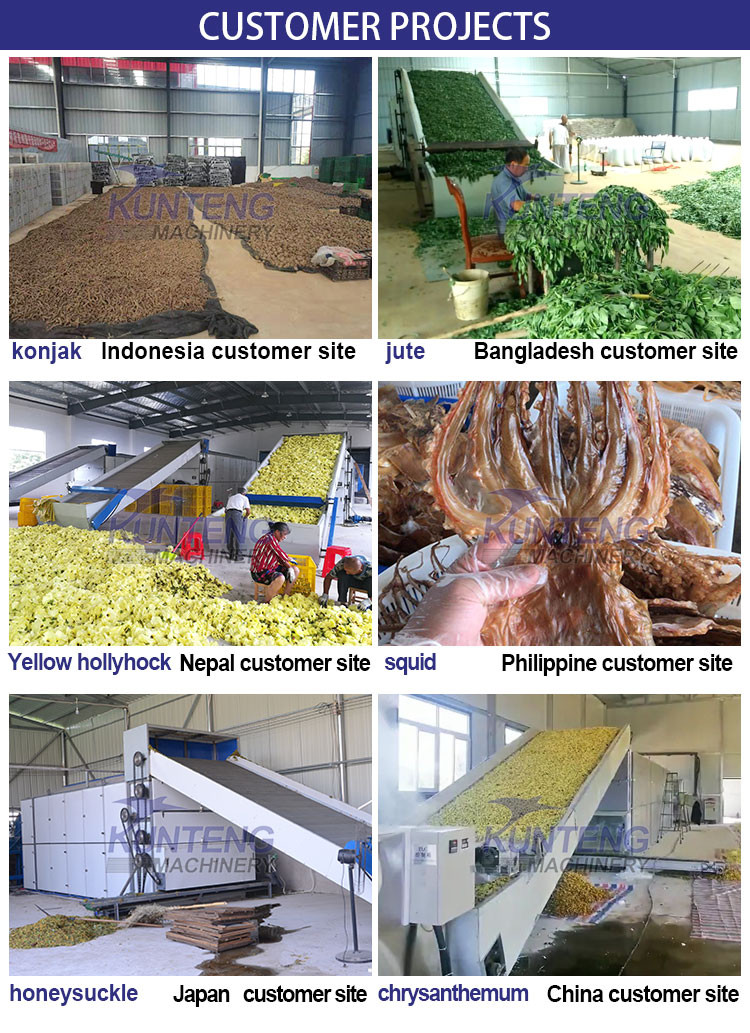

Customer Site and Feedback

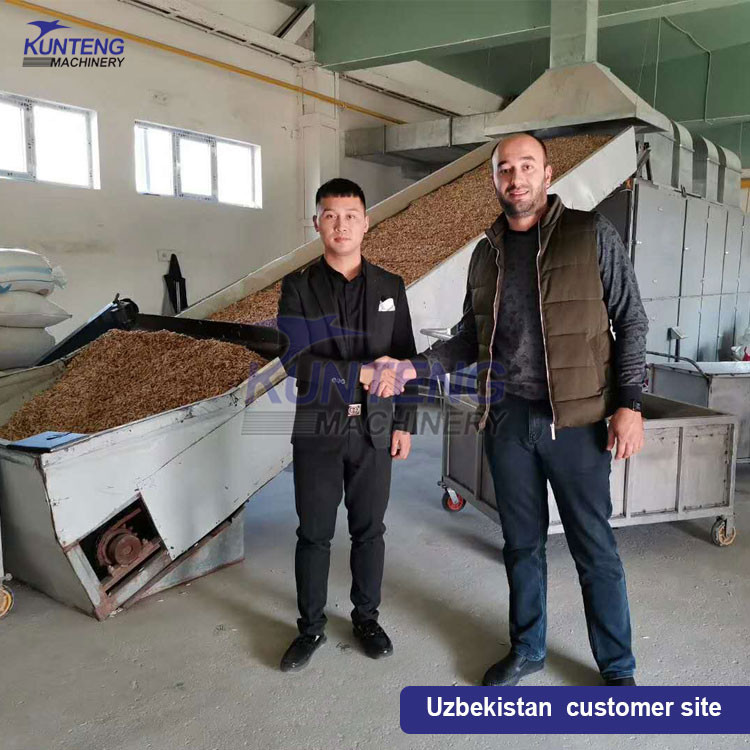

Customer visit
The customer visit our factory to check the dryer. They are satisfied with the quality of the product, and signed contract directly.

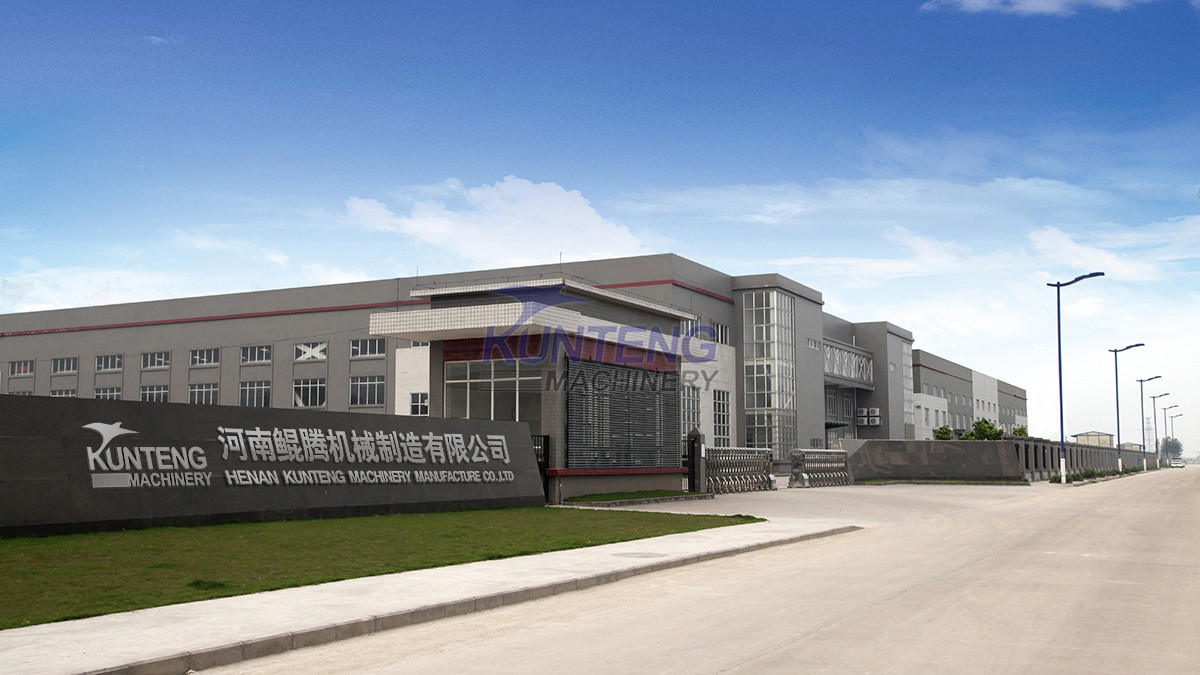

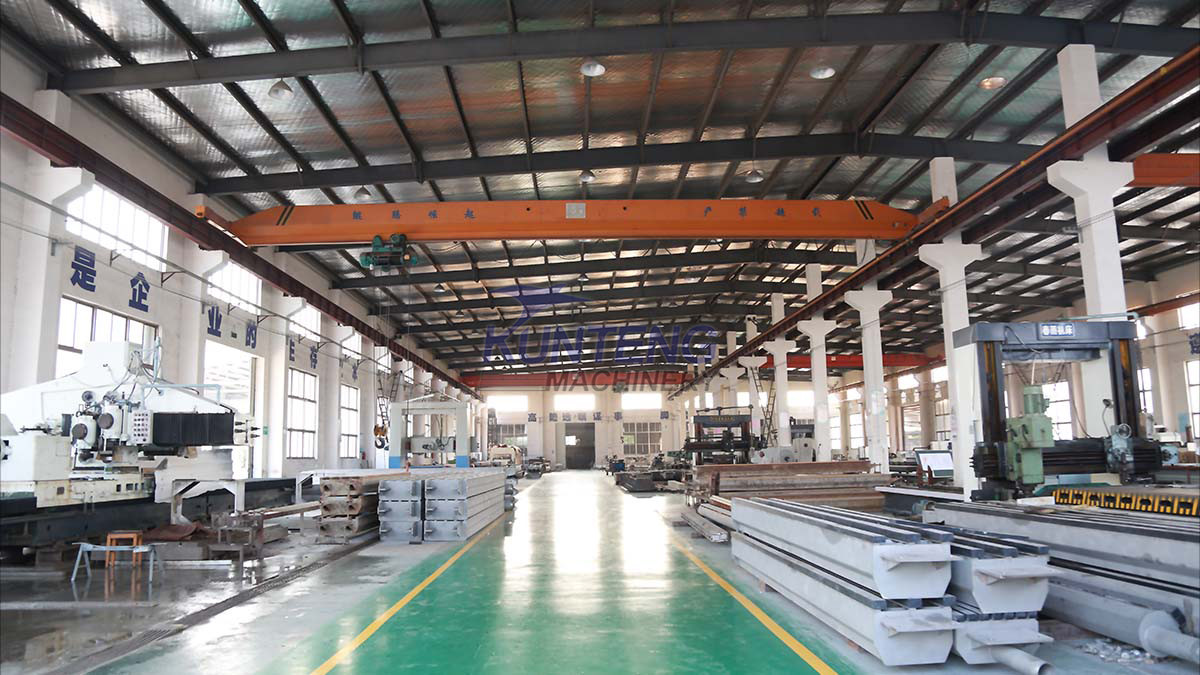

Company Profile

About our company

KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable drying machines for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000,CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.

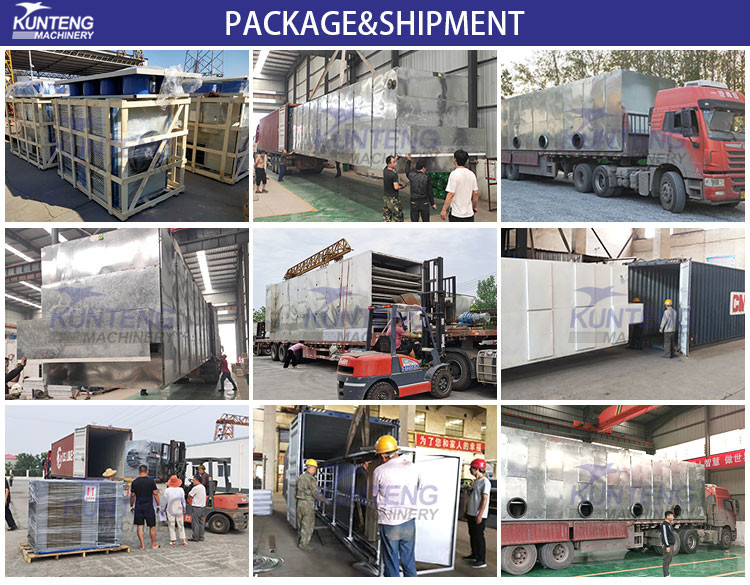

PACKING & SHIPPING
Mesh belt dryer sales service:

预售服务:
1) 选择合适的设备型号。
2) 根据您的要求设计和制造产品。
3) 对客户进行技术培训。
4) 为客户提供专业的建议。
销售期间的服务:
1) 拍照(包括原材料、半成品、成品和装货产品)
2) 提前检查和接受产品以便交付。
3) 准备所有清关文件,确保客户顺利清关。
售后服务:
1) 提供设备的土木工程图纸。
2) 每个客户免费提供(包括安装、维护)培训。
3) 安装和调试设备,确保干燥运行顺利。
4) 定期检查设备。
