PRODUCTION DESCRIPTION

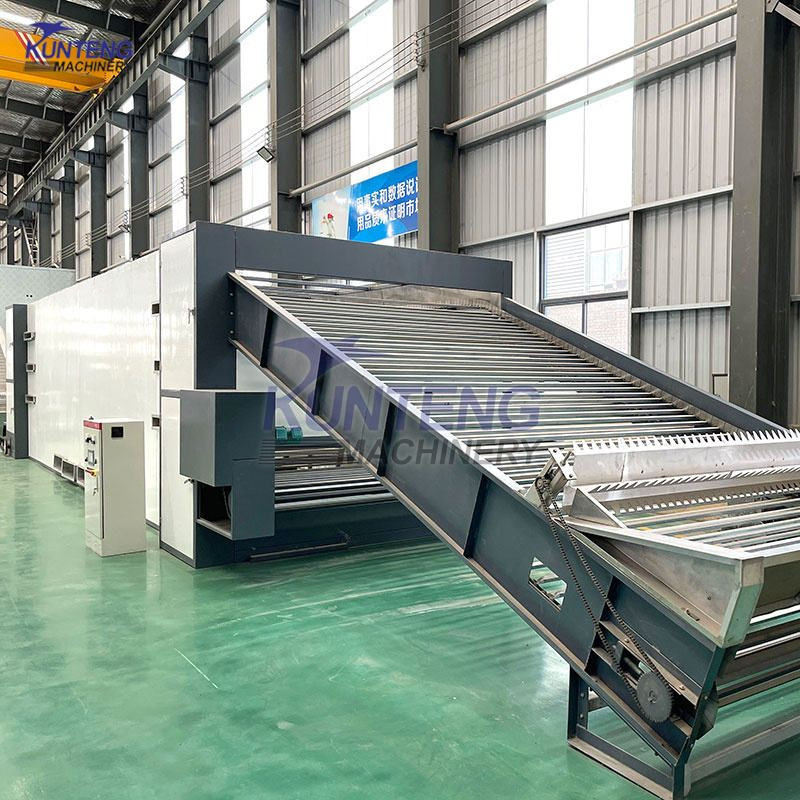

Fruit and Vegetable Drying Machine Chilli Potato Chips Drying Machine Fruit and Vegetable Washing and Drying Machine

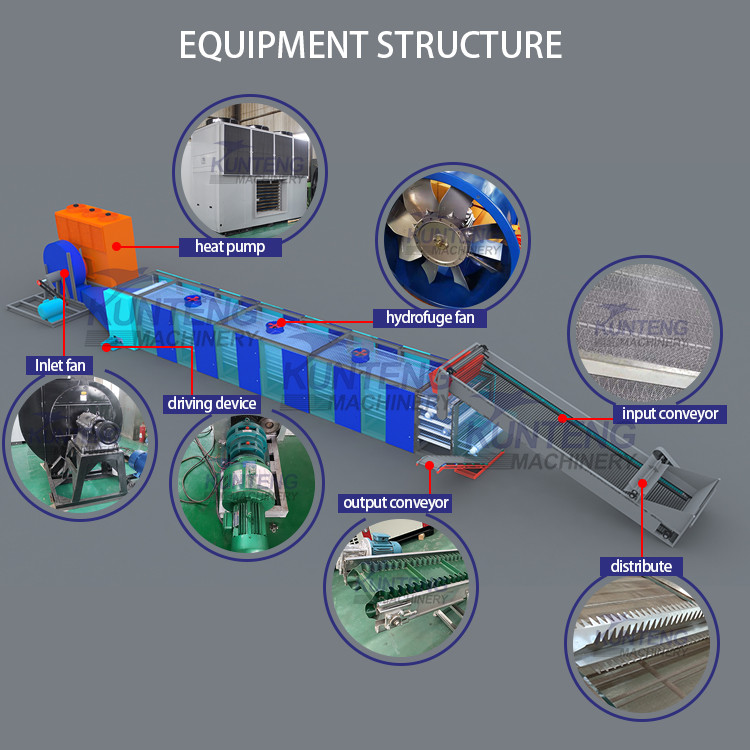

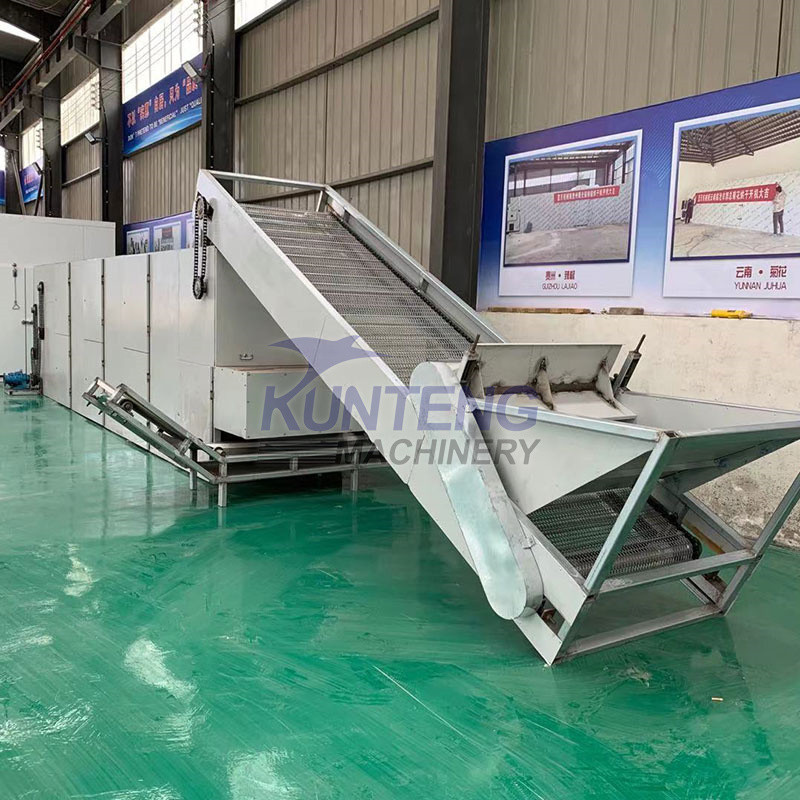

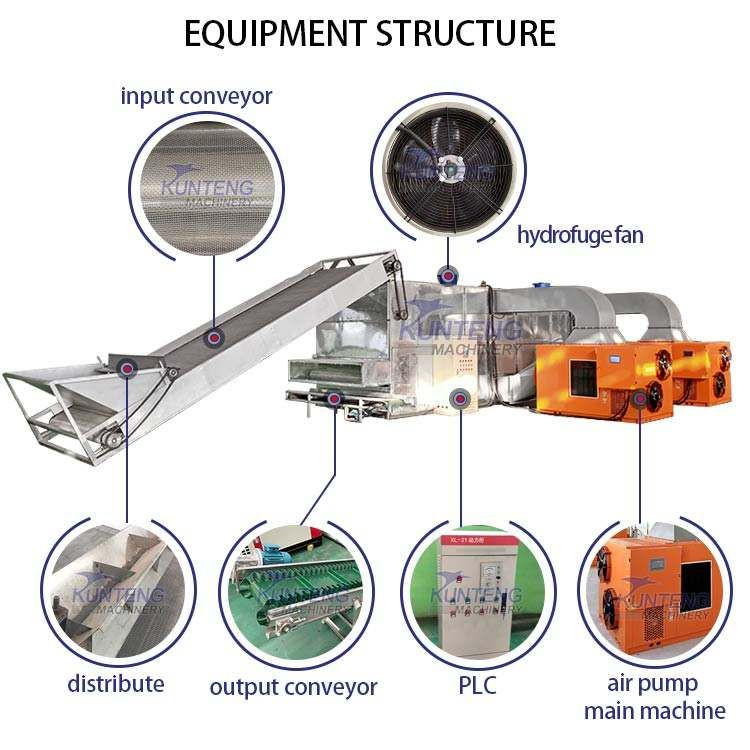

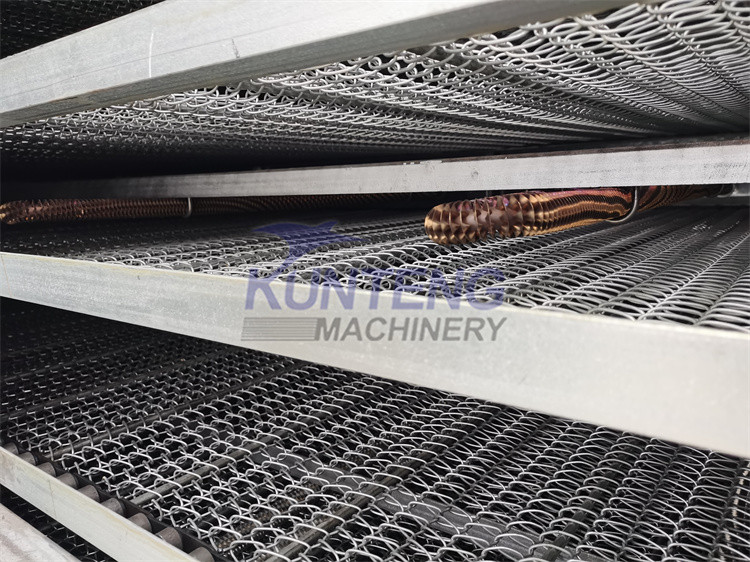

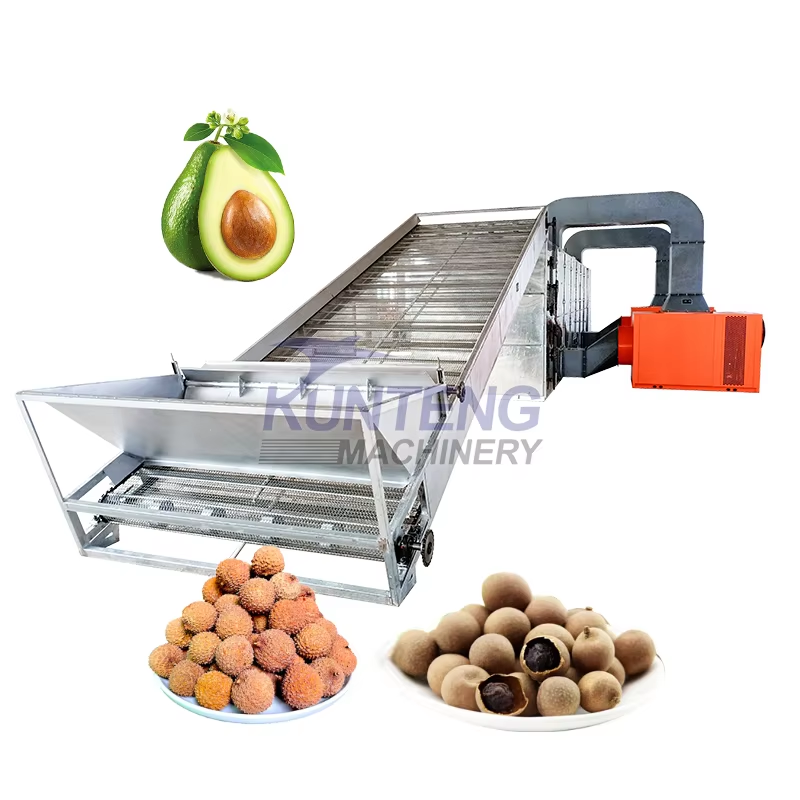

Continuous Mesh Belt Conveyor Dryer using hot air as drying medium, material is transported by multi-layers stainless steel mesh belt. The hot air across the mesh belt from the bottom layer to top layer, finally, the humidity come out from top of the dryer and the dried fruit come out by discharge conveyor.

Advantages of Continuous Mesh Belt Conveyor Dryer
1. Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2. Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3. The air blow to the material is pure, will not pollute the materials.

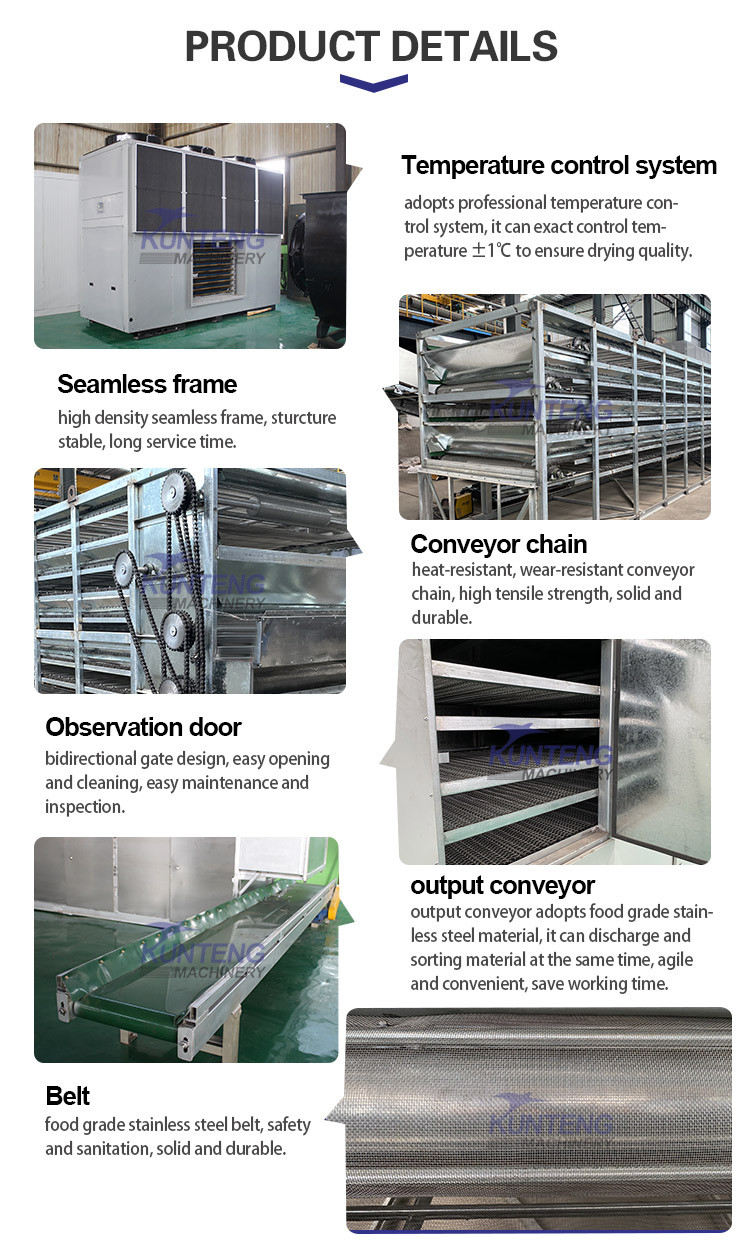

4. Bidirectional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.

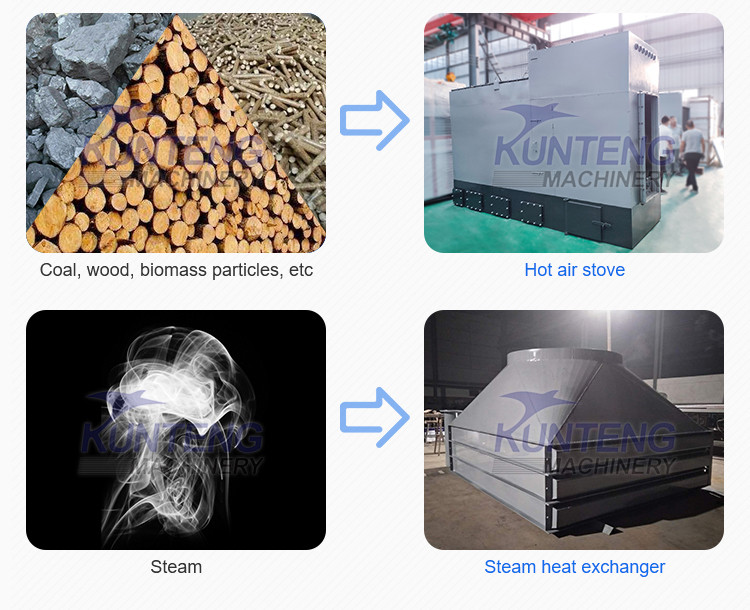

Heat source

Continuous Mesh Belt Conveyor Dryers heat source can be electricity, gas, diesel, wood, biomass, boiler.etc.

Fruit and Vegetable Drying Machine Chilli Potato Chips Drying Machine Fruit and Vegetable Washing and Drying Machine

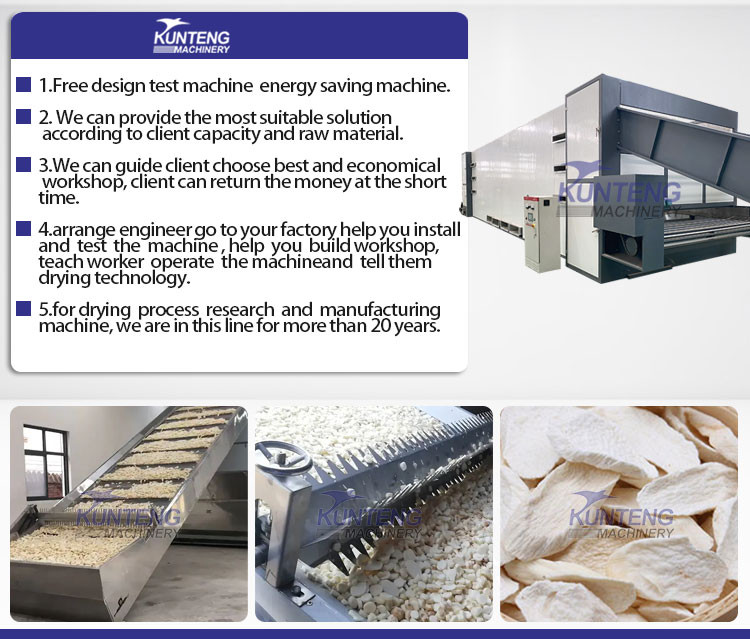

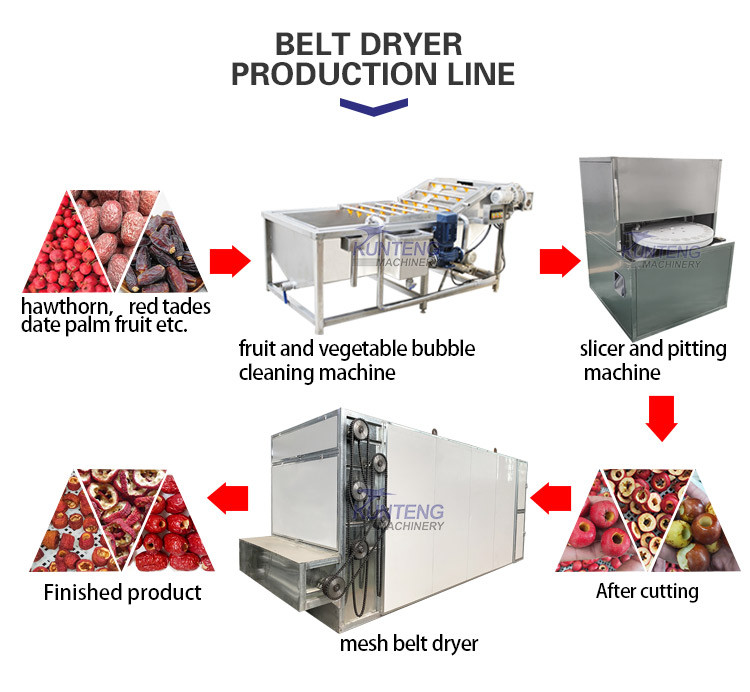

We are engaged in producing fruit vegetable dryer machine for many years. Has rich experience in hundreds of agricultural products drying process database. can customize dehydration fruit drying production line.

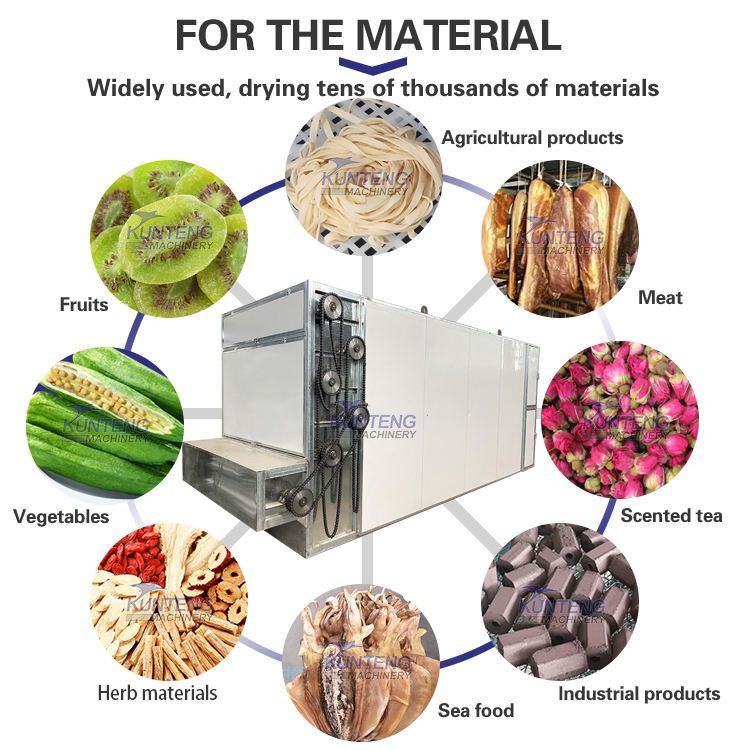

Wide application range

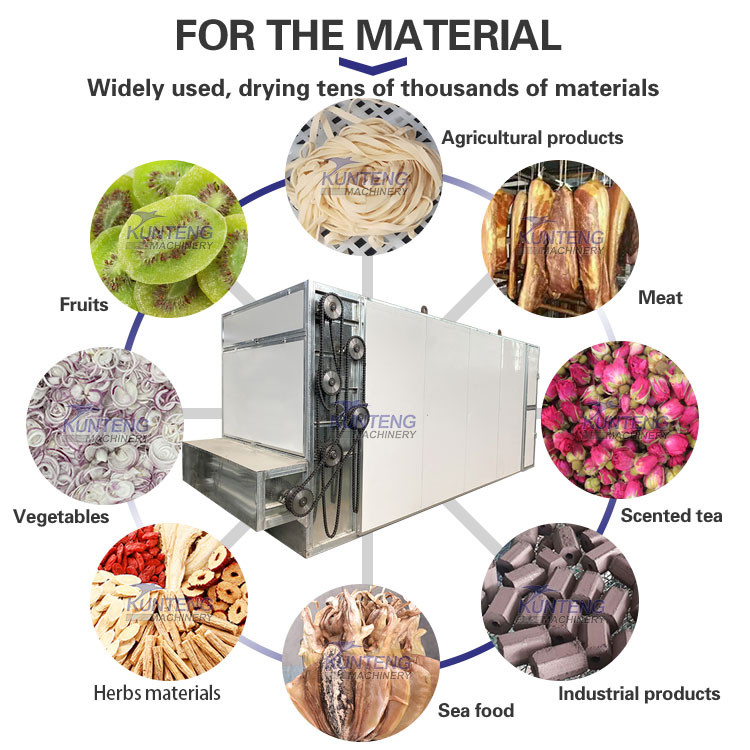

Continuous Mesh Belt Conveyor Dryer adopts air drying technology and food grade stainless steel chain plate that can drying many materials, such as vegetables, fruits, herb, flower, grass, insect, shrimp, sea cucumber, grain, maize, rice, cassava, onion, red chilli, coconut copra, garlic, hemp, black soldier fly, alfalfa, mushroom, etc.

Product Parameters

Fruit and Vegetable Drying Machine Chilli Potato Chips Drying Machine Fruit and Vegetable Washing and Drying Machine
Model(Width*Length)	GX1.5-6-4	GX2-8-4	GX2-9-4	GX2-10-4	GX2-12-4
Layers	4
Drying area(㎡)	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature(℃)	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53

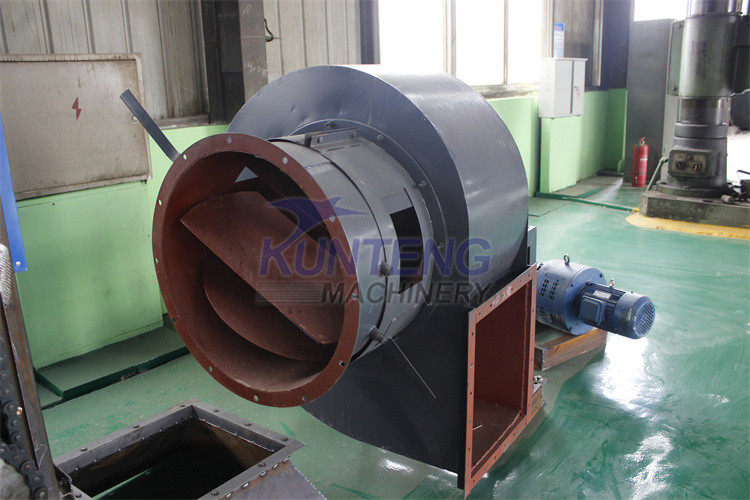

Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m³/H	25m³/H	28m³/H	30m³/H	36m³/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

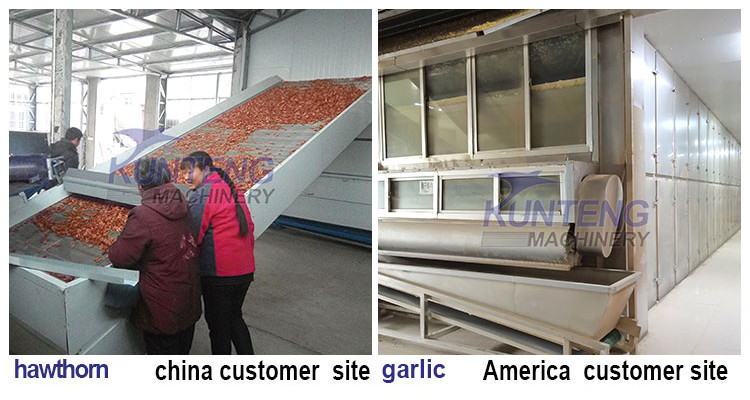

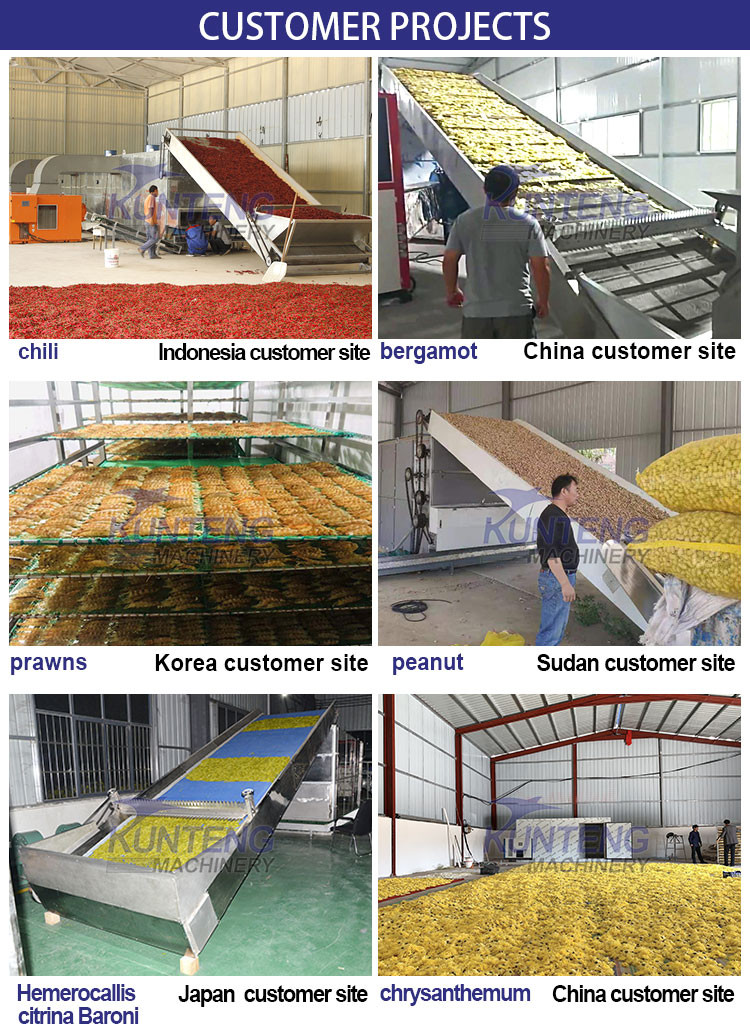

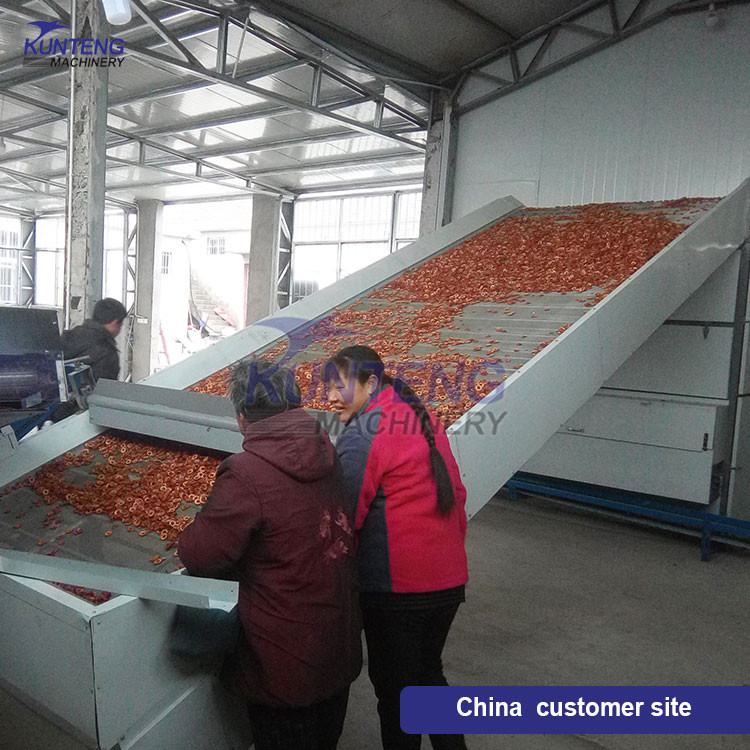

Customer Case

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.

FAQ

1. who are we?

We are a professional manufacturer in China, passed Alibaba field certification.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
