Construction Waste Landfill Site Treatment Municipal Solid Waste Sorting Machine Decoration Waste Sorting Machine

Construction Waste Landfill Site Treatment Municipal Solid Waste Sorting Machine Decoration Waste Sorting Machine

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

KUNTENG manufacturer focus on the waste sorting machines for many years.We design the most reasonable waste sorting solutions for customer, can disposal municipal waste,household waste,landfill stale waste,construction demolition waste.etc. The main purpose of waste sorting machines are reduction processing and turning waste into treasure.improve the added value of waste.

Production Description

KUNTENG waste sorting recycling plant equipments:
Waste Shredder / Bag-breaking Machine / Trommel Screen / Magnetic Separator / Eddy-Current Separator /Air Separator / Optical Sorting Systems / Conveying System / RDF&SRF Making Systems / Composting System / Pyrolysis System.
According to the customers garbage type, design a special waste sorting plant for you.

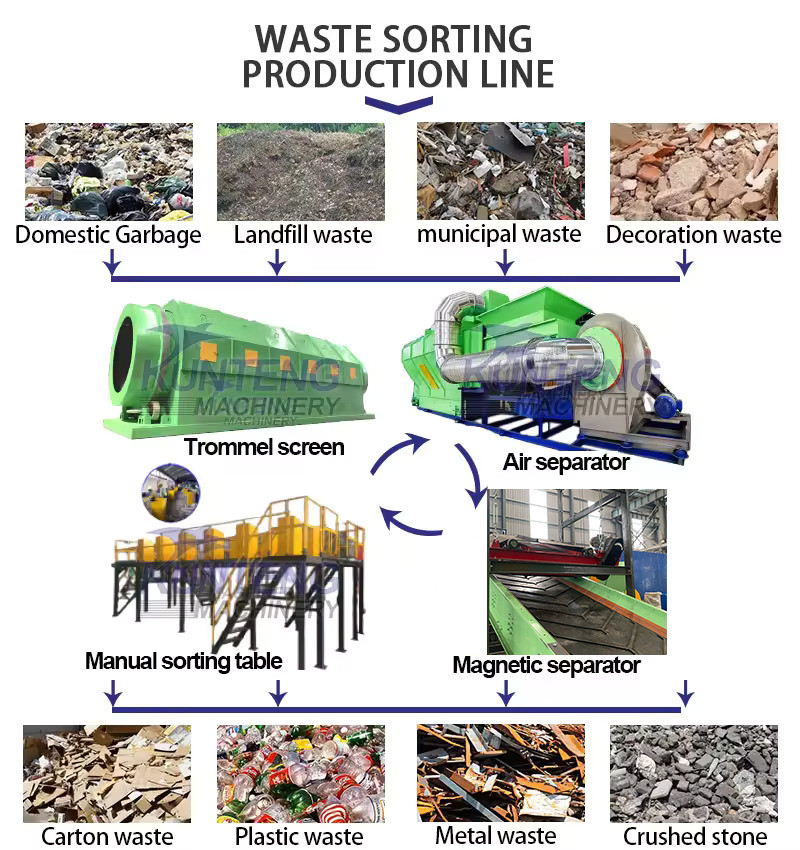

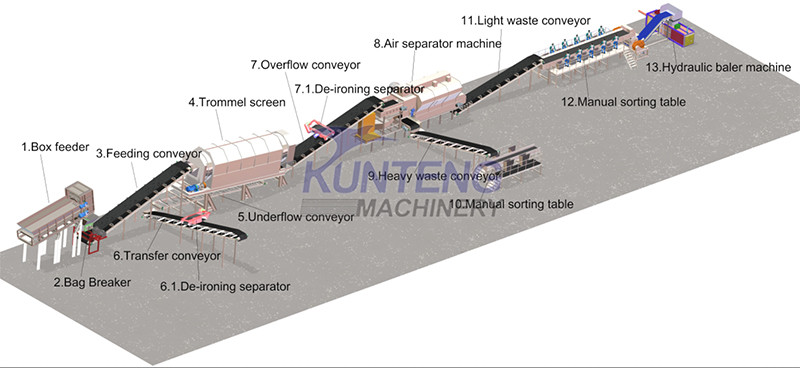

Working flow of Waste Sorting Machine Garbage recycling line:

Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separator machine(Screening waste by material’s weight). Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the baller machine.

Specifications of Waste Sorting Line

Model	JTS1500	JTS1800	JTS2000	JTS2200	JTS2500
Rated output	50t/day	100t/day	200t/day	300t/day	500t/day
Box feeder	B800×4000	B1000×4000	B1200×4000	B1400×4000	B1400×7000
Trommel screen	T1500*6000	T1800*6000	T2000*6000	T2200*8000	T2500*8000
Magnetic separator	RCYD-6	RCYD-8	RCYD-10	RCYD-10	RCYD-12
Air separator	GX-A60	GX-A80	GX-A100	GX-A120	GX-A160
Baller	B30T	GX-B80	GX-B100	GX-B120	GX-B160
Number of conveyors	B650*6	B800*6	B1000*6	B1200*6	B1200*6
Floor area	18m*58m	19m*60m	20m*62m	22m*65m	24m*77m
Total Power	84kw	102kw	135kw	165kw	222kw

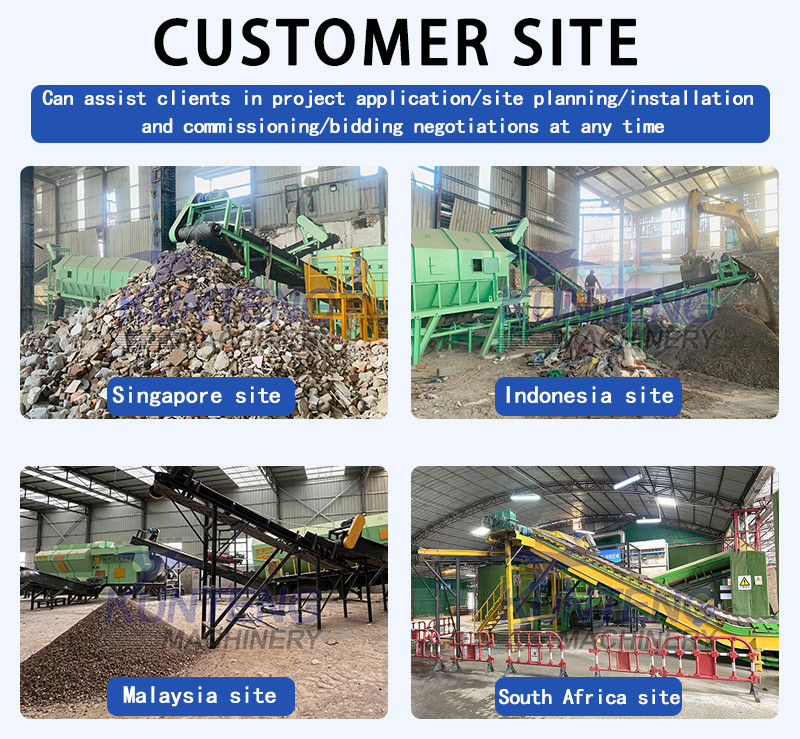

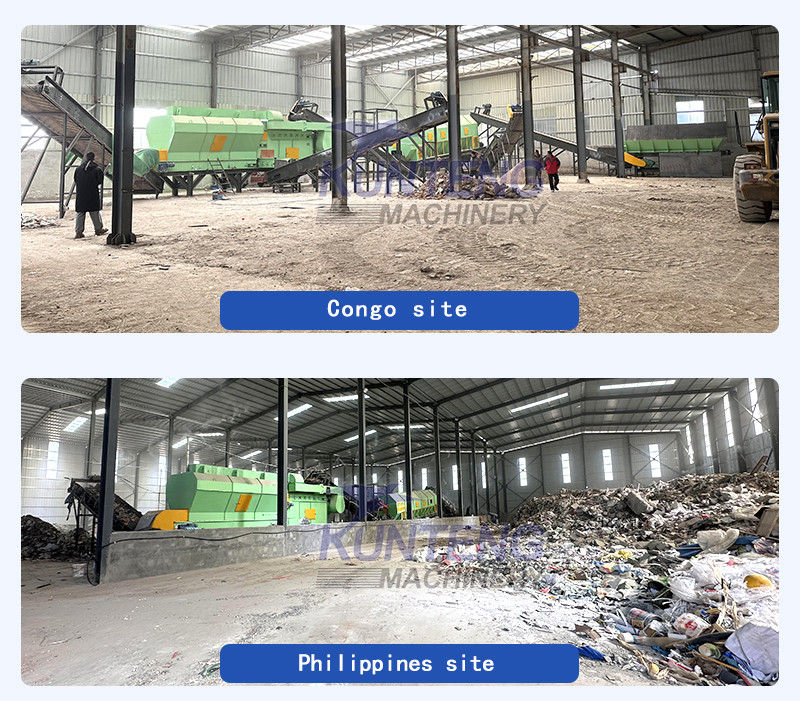

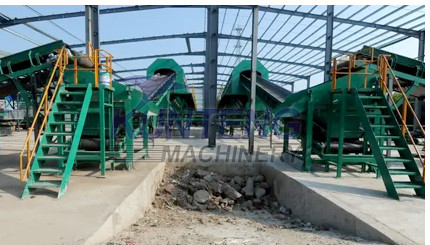

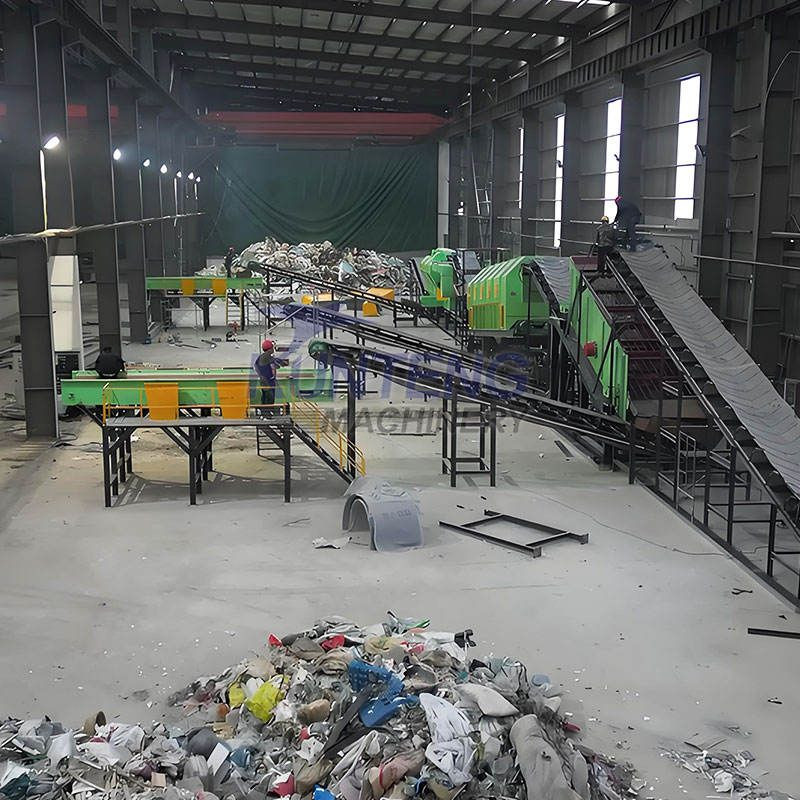

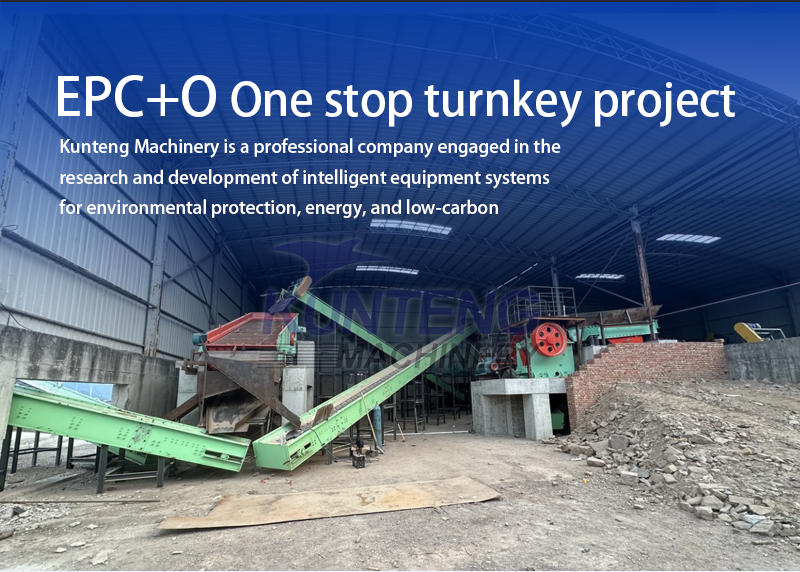

Customer Site

Waste sorting recycling plant disposal these waste materials:

Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc

Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.All of these sorted waste can be recycled after reprocessing.

Stale waste:Combustible waste is sent to power plants as RDF, and organic soil can be recycled.

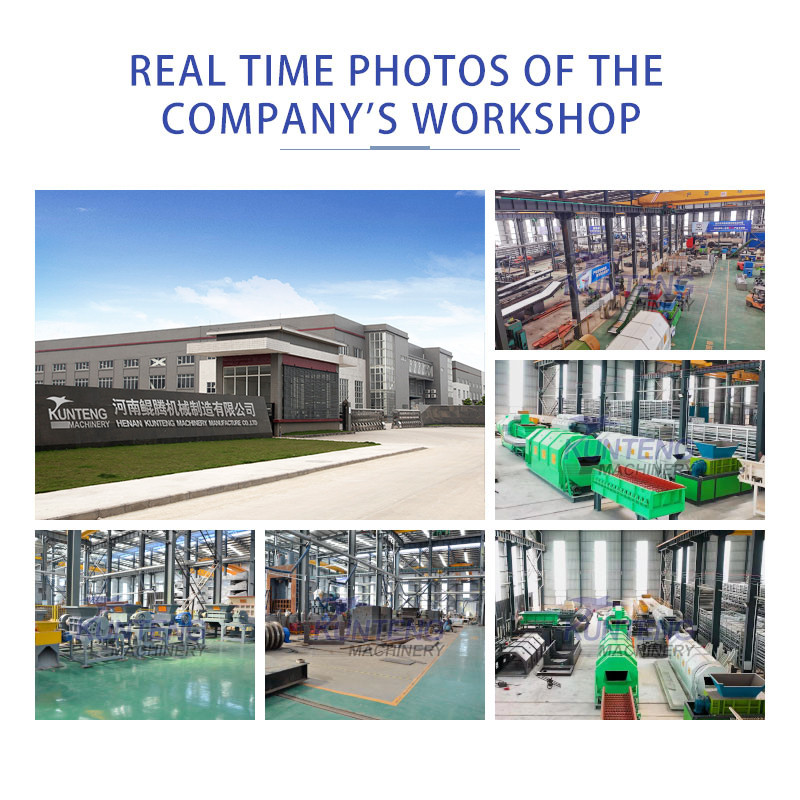

Company Profile

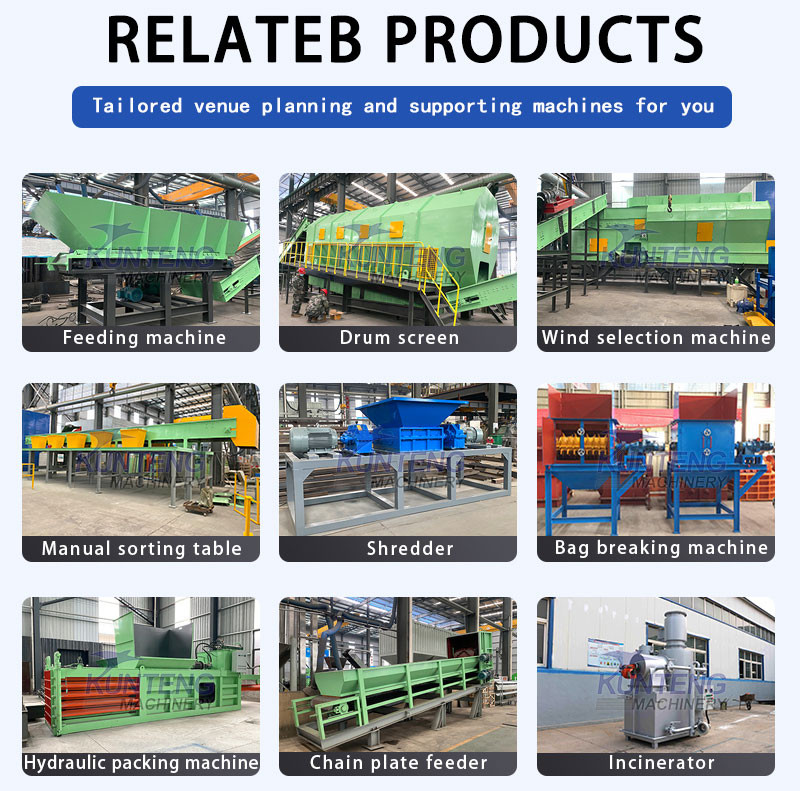

Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting machines. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.

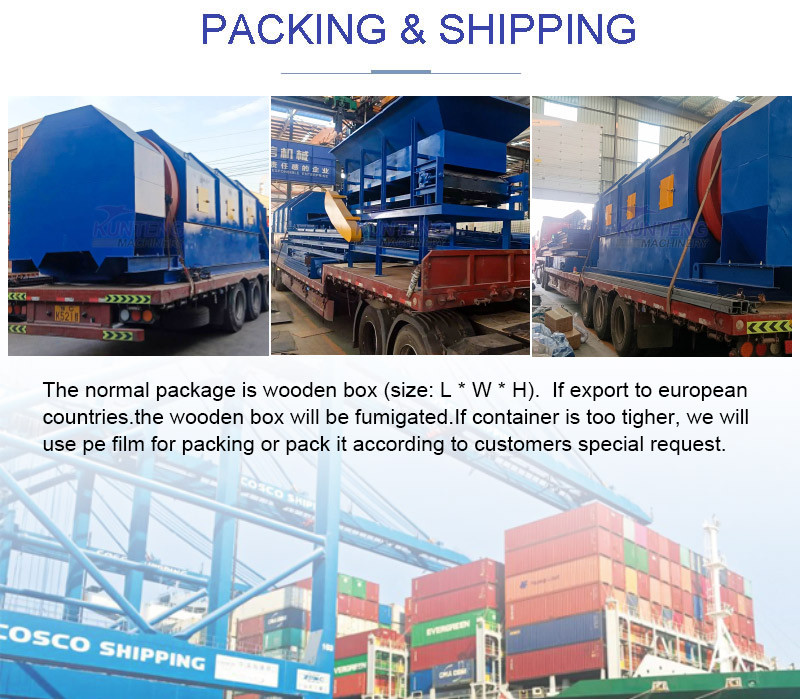

PACKING & SHIPPING

FAQ

Q1: Are you a factory or a trading company?

A1: We are a professional manufacturer in China, passed Alibaba field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.

We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
