    Description:

    Product Description

















    Automatic Eco-Friendly Vertical Hosting Carbonization Furnace Horizontal Sawdust Carbonizer Furnace

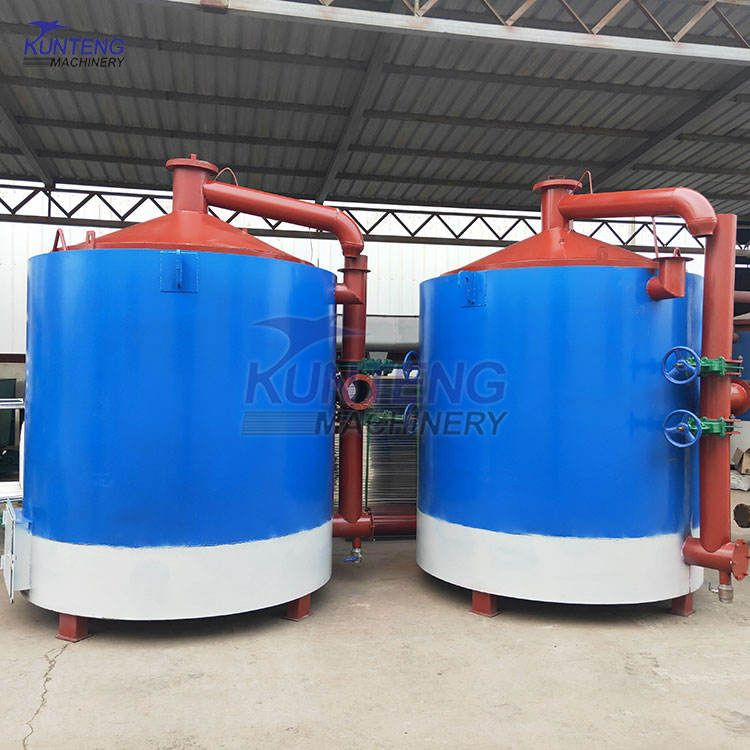

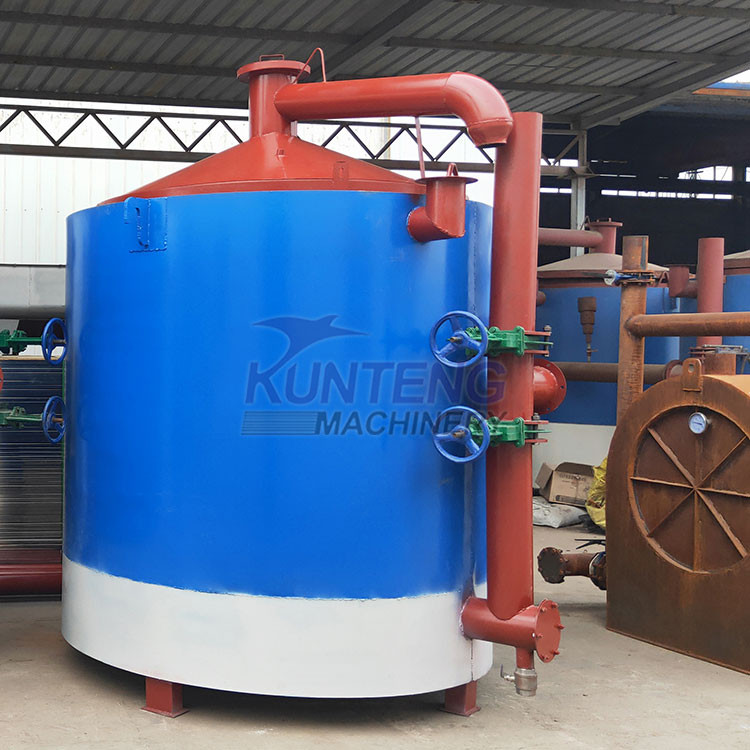

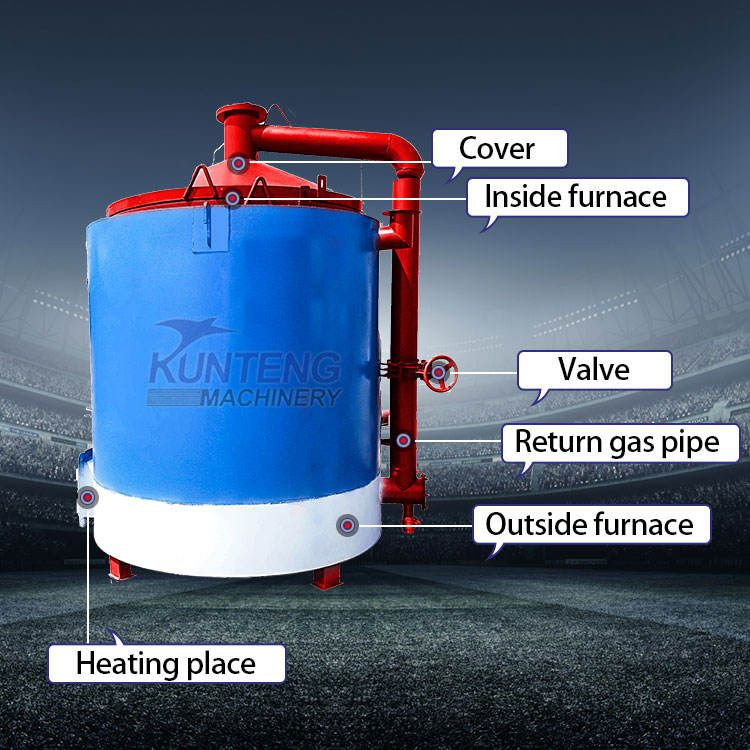

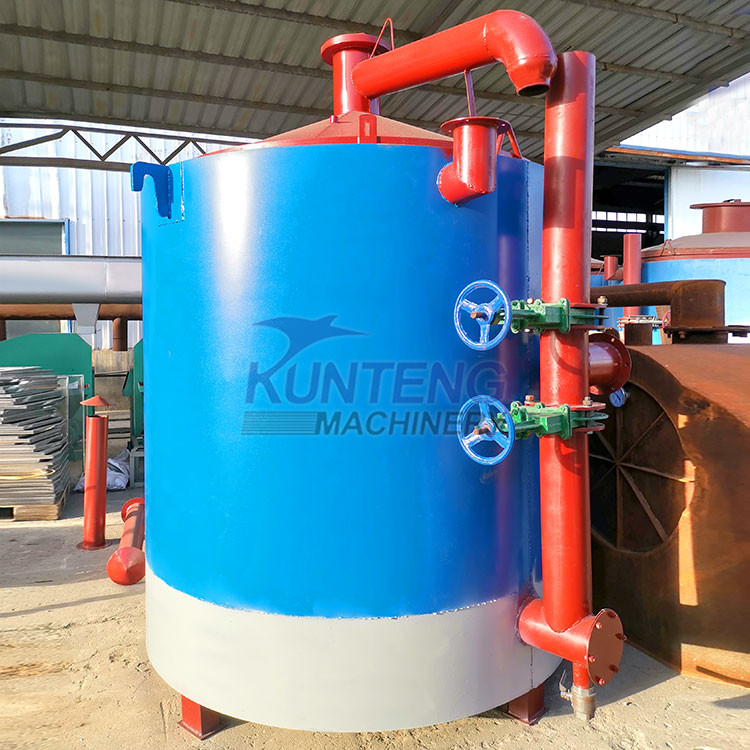

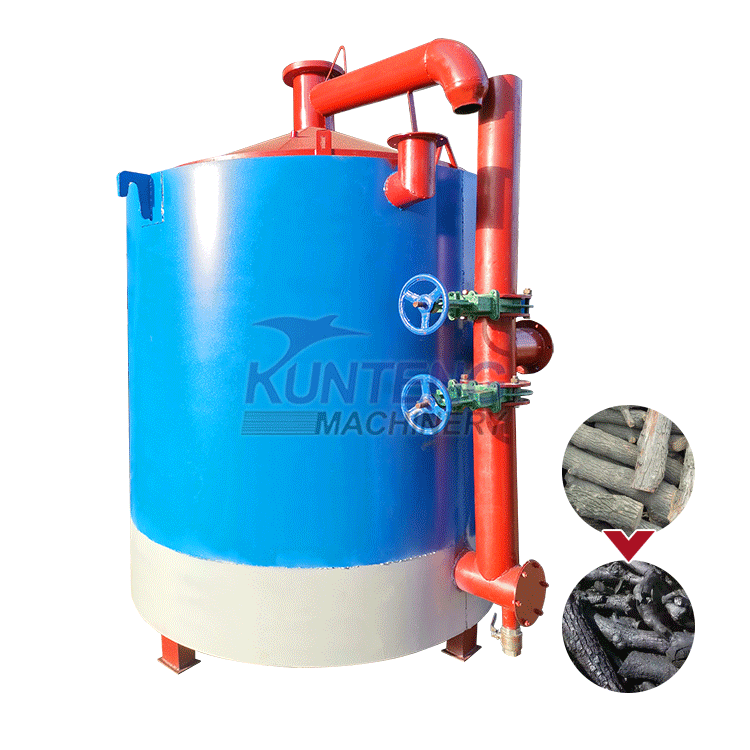

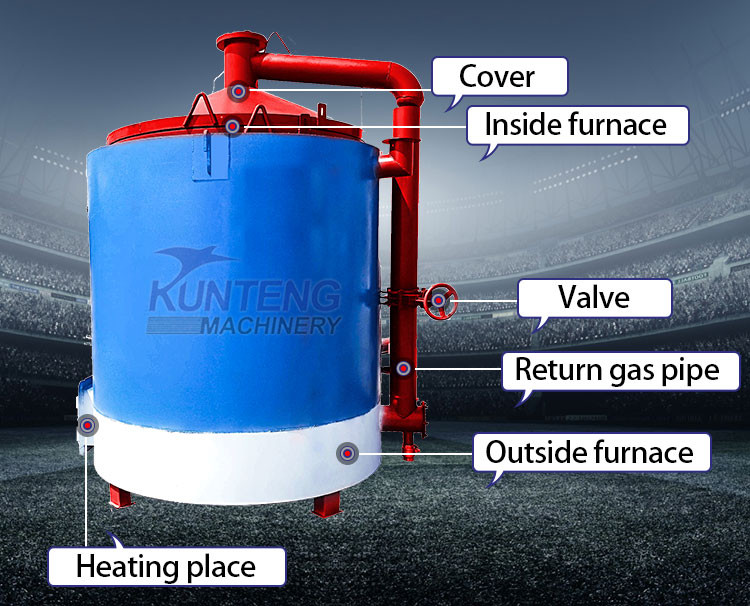

    The composition of lifting carbonization furnace: Including furnace body, furnace cover, heating chamber, exhaust pipe, the furnace body is equipped with a carbonized inner tank, and the carbonized inner tank is installed with a sealing cap, the upper edge of the carbonized inner tank is fixed with a downward folding ring flange, the downward folding ring flange and the upper part of the furnace fixed ring sealing ring matching buckle installation. A lifting ear is fixed on the side wall of the carbonized inner liner, on the upper cover of the carbonized inner liner and on the furnace cover respectively.

    The inner tank and combustion chamber of the lifting carbonization furnace are separated, because the movable installation of the carbonization inner tank can achieve continuous work, one furnace body can be equipped with three carbonization inner tank, no preheating treatment is required when replacing the carbonization inner tank, and the cooling of the carbonization inner tank is completely removed from the furnace body, which greatly improves the efficiency of carbonization work, shortens the carbonization time, and saves labor expenses. The sealing effect is good, the overall structure is simple and novel, the operation is simple and safe.

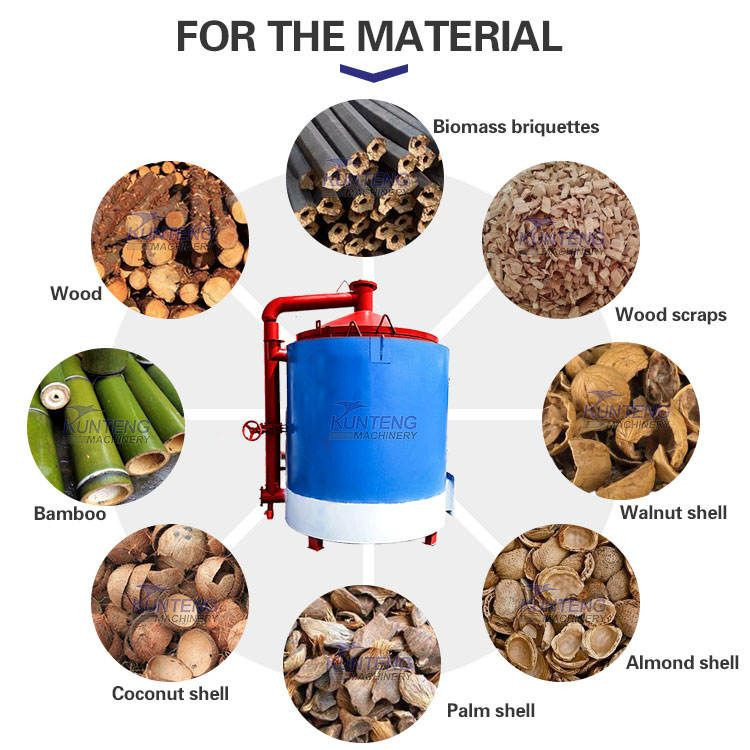

    Applicable Material

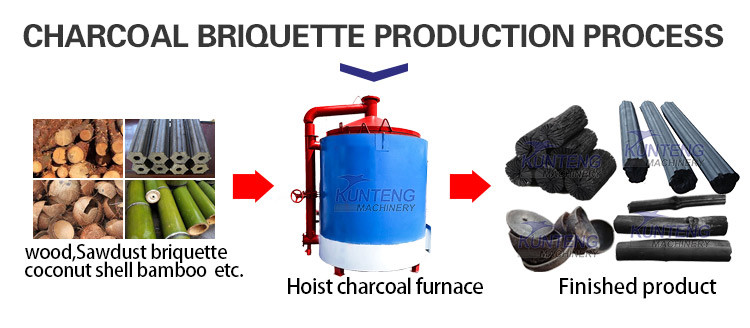

    Carbonization Process of Automatic Eco-Friendly Vertical Hosting Carbonization Furnace Horizontal Sawdust Carbonizer Furnace

    1, the drying stage: from the beginning of the ignition combustion furnace temperature up to 160 ° C, this stage is also a wet stage, mainly rely on the heat generated by the bottom of the fuel to heat the wet, this stage logs, rods or other raw material chemical composition almost no change. 2, the initial stage of carbonization: this stage mainly depends on the external heat value, the furnace temperature rises to between 160 and 280°C. In this case, the wood thermal decomposition reaction, the composition begins to change. Among the unstable substances are hemicellulose decomposition of carbon dioxide and a small amount of acetic acid and other substances. 3. Dongguan carbonization stage: temperature 300 ~ 650℃. At this stage, the raw materials are rapidly decomposed and a large number of combustible gases containing tar and other impurities are generated. The combustible gas is transported to the bottom of the furnace through the gas pipeline for circulation combustion, and the raw materials in the furnace are rapidly carbonized to generate carbon rods under high temperature conditions.

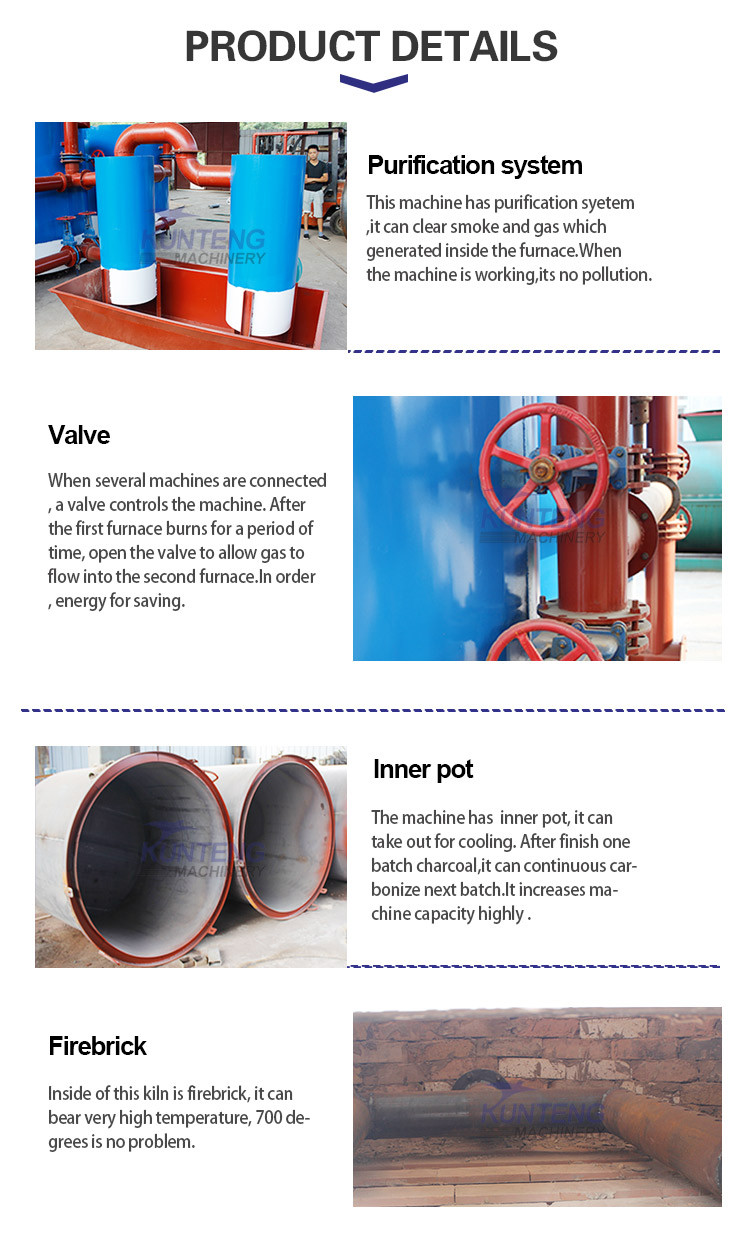

    Machine Characteristic
    Machine characteristics of Lifting Carbonization Furnace

    1, carbonization rate of up to 80%, no smoke emission, no pollution, high efficiency
    2. The raw materials are carbonized into carbon rods after 6-8 hours. Three internal Dan alternately carbonized continuous work, 24 hours a day can produce carbon 3 times
    3. the gas recovery and recycling, their own heating, the recovery rate of up to 90%, saving 75% of energy
    4. The lifting carbonization furnace is equipped with a flue gas recovery device, and the recovered flue gas can be ignited like liquefied gas, as a heat source for its own carbonization, and the production environment is smokeless and tasteless.
    5. Continuity of production
    6. Shut off coke
    7.Controllable and adjustable carbonization temperature
    8. High heat transfer, high wear resistance of the composite material to form a high-efficiency carbonization chamber
    Automatic Eco-Friendly Vertical Hosting Carbonization Furnace Horizontal Sawdust Carbonizer Furnace
    Model
    Output Capacity (t/d)
                  Size                (m)
    Gross Weight(kg)
    Pre Heating Method
    1600
    1
    1.6*1.6*2
    2000
    Gas,LPG,Burn wood,coal all OK
    2200
    2
    2*2*2.2
    3500

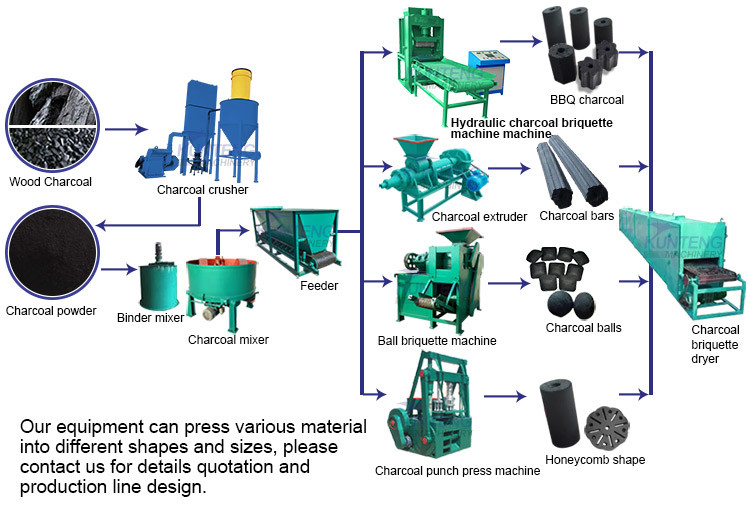

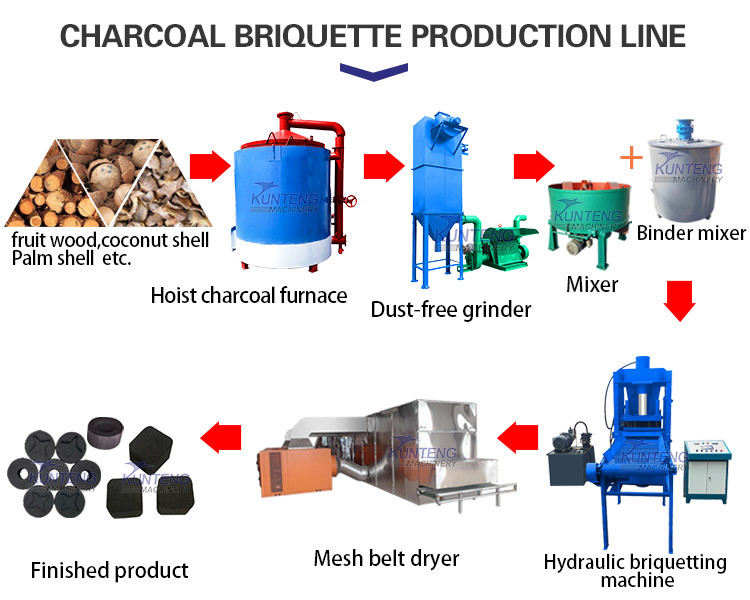

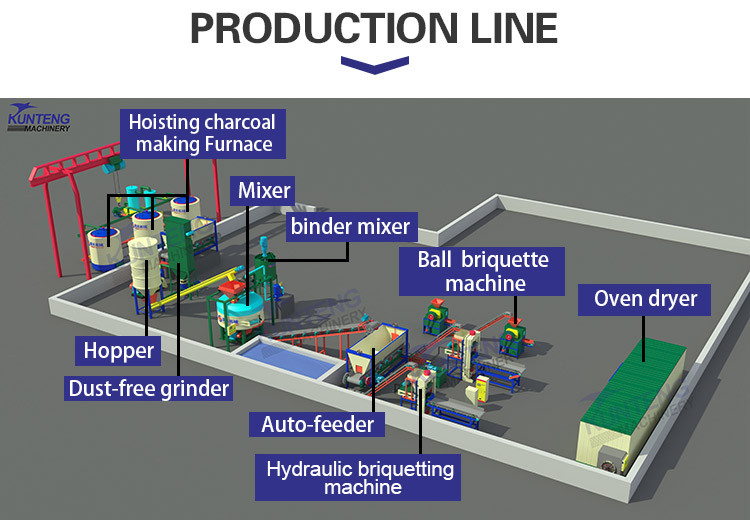

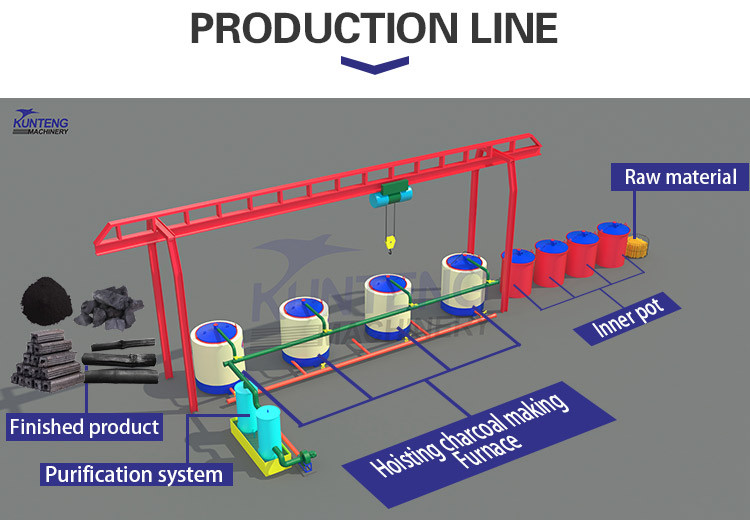

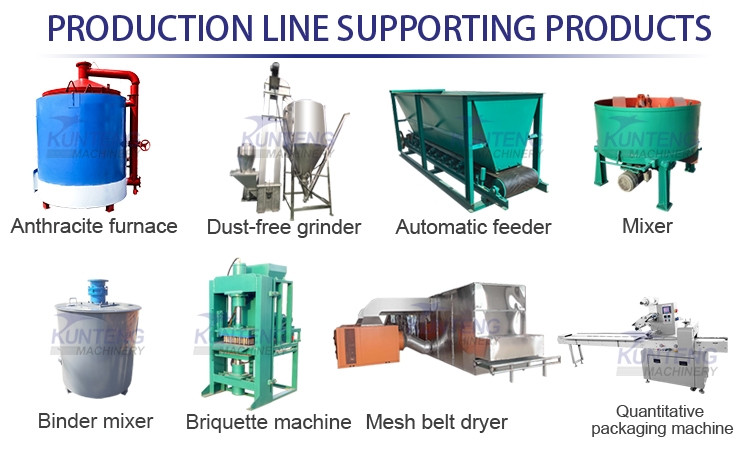

    Production Line
    We have a whole production line of barbecue carbon, whether your raw material is wood, bamboo, branches, wood sticks, coconut husk, sawdust, rice husk, peanut husk, corn cob, etc. Our production line can process and finally make barbecue carbon.we also accept customized production line, everything is based on customer needs.
    Related Products

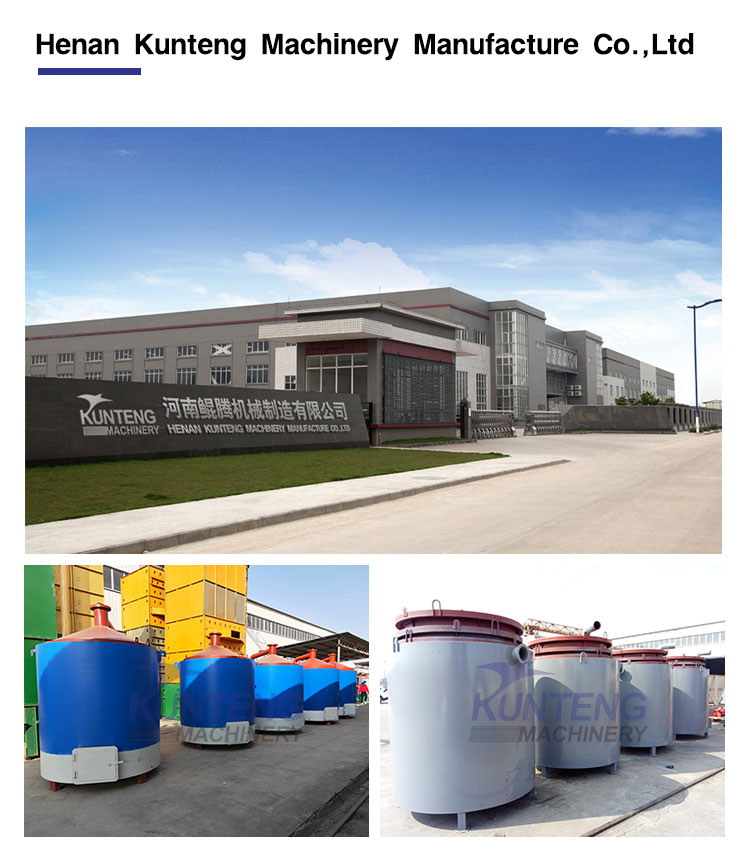

    Company Profile
    KUNTENG Machinery Co., Ltd serves the Carbonizing Equipment,Briquetting Machines And Dryers industry and has mature experience in research & development, design, manufacturing and installation. Machinery has cooperated with many manufacturers in China and other countries to provide Carbonizing Equipment,Briquetting Machines And Dryers equipment for the production lines of many manufacturers. Machinery pays attention to customer applicability and product research and development, and the level of production skills is perfect. We undertake the design and manufacturing of various types of Continuous carbonization furnace, horizontal carbonization furnace , lifting carbonization furnace, briquetting machine and dryer,etc.

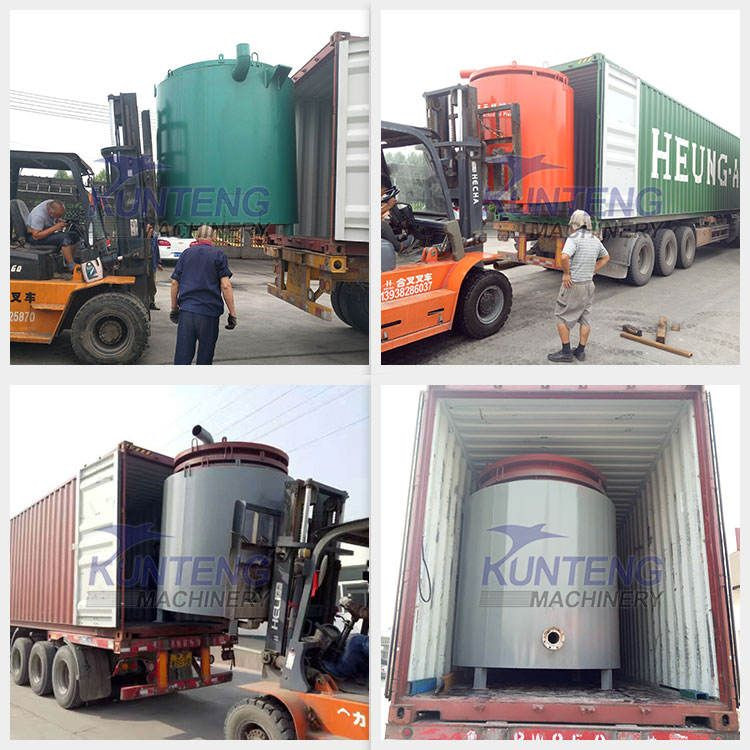

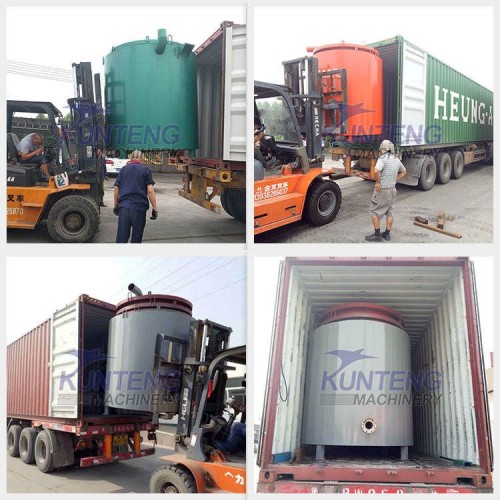

    Packing & Delivery
