Agricultural sideline product dryer seafood continuous drying equipment tea mesh belt dryer

Agricultural Sideline Product Dryer Seafood Continuous Drying Equipment Tea Mesh Belt Dryer

Product Review | Top Rated

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

PRODUCTION DESCRIPTION

We specialize in producing Mesh belt conveyor band dryer, sea food fish dryer, seaweed drying machine. We have completed many design cases for our clients around the world. If you want more information, you can contact us 24 hours a day and a professional engineer will answer your questions. KUNTENG Drying machine has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers needs for different materials.

Working principle:

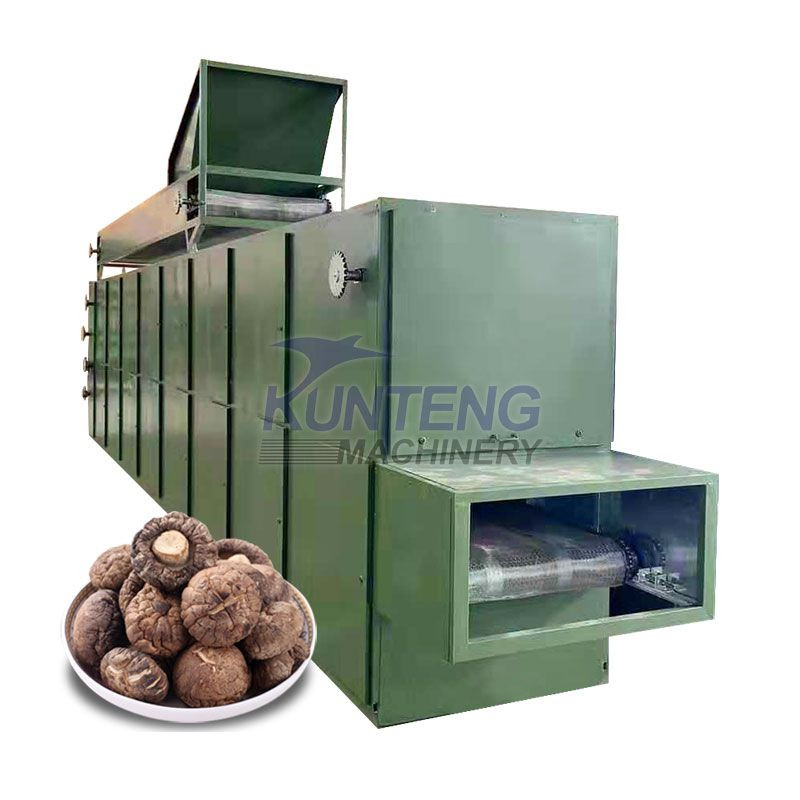

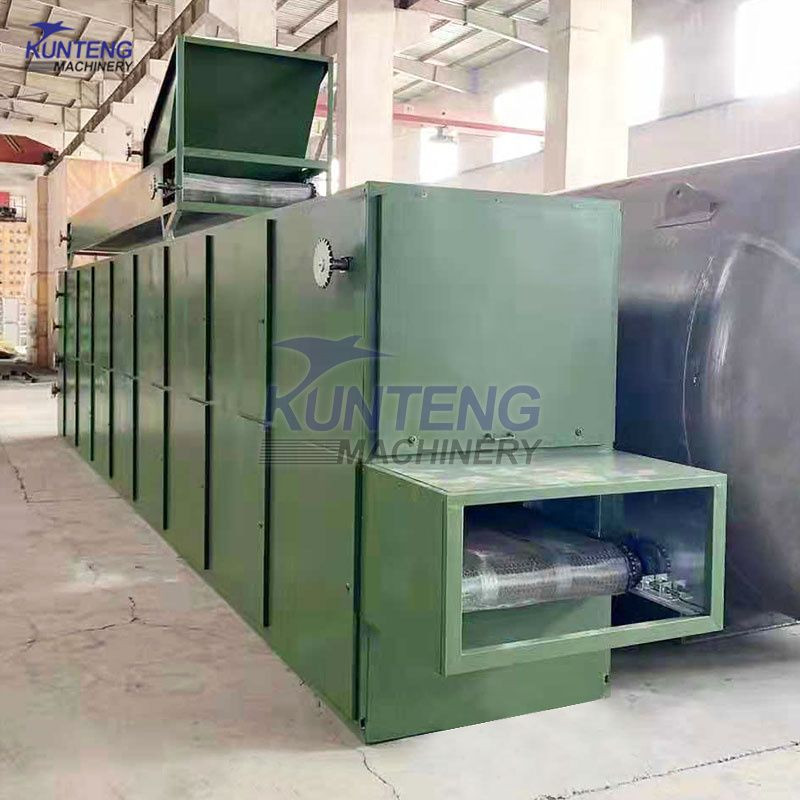

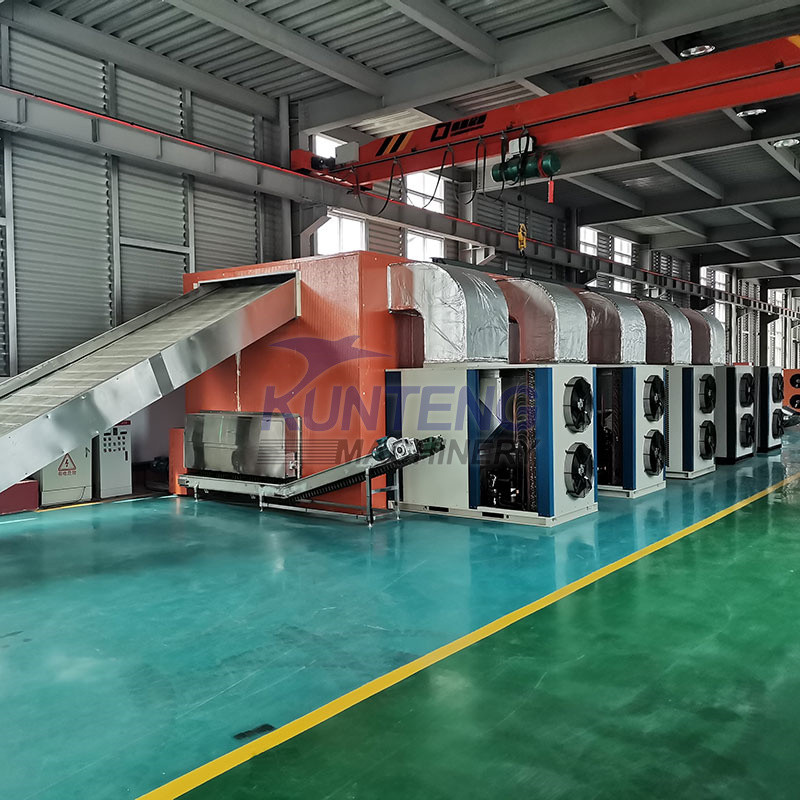

Our Mesh belt conveyor band dryer, sea food fish dryer, seaweed drying machine adopts continuous components and has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, wet materials are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried materials are conveyed by a discharge conveyor.

Our Mesh belt conveyor band dryer, sea food fish dryer, seaweed drying machine adopts air drying technology, all kinds of materials can be dried without damaging the nutritional value, such as vegetables,fruits,grain,maize,rice,fish,biltong,cassava,paddy,mango,corn,cocoa,tomato,onion,pasta,chips,red chilli,meat,sesame seed,coffee beans,coconut copra,pasta,garlic,hemp,tea leaf,black soldier fly,herbs,alfalfa,charcoal briquette,mushroom,flower,pineapple,static,grapes.etc.

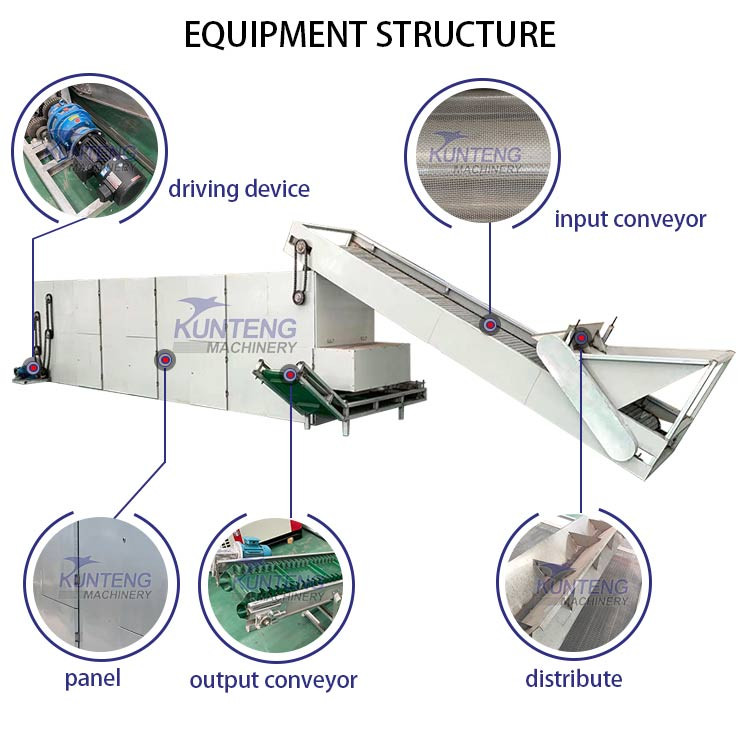

Main components of mesh belt dryer

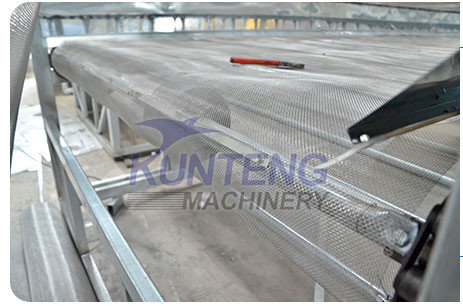

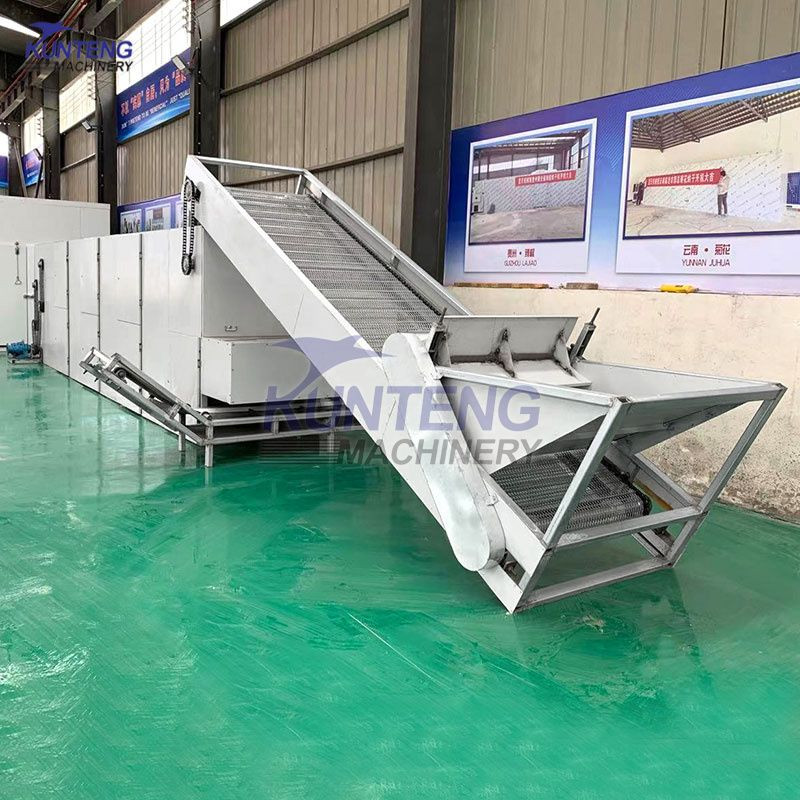

Conveyor chain

The feeding conveyor and discharge conveyor both equipped with conveyor chain.

1.Using food grade 304 stainless steel mesh,

2.Wear - resistant and corrosion-resistant,

3.Health and Safety,

4.High tensile strength,solid and durable

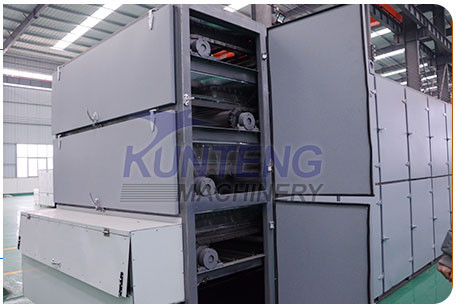

Observation door

The Drying box equipped with two observation door.

1.It is easy to opening and cleaning, 2.Convenient to observe and check material inside. 3.Easy maintenance and inspection

Temperature control system

Temperature control system adopts professional temperature control system, it can exact control temperature ±1℃ to ensure drying quality.

1. Fully automatic 2. Stable performance 3. Easy to operate

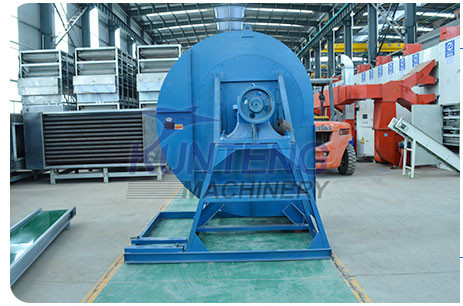

Fan of mesh belt drying machine

Mesh belt dryer equipped with high quality fan to smoothly transport the hot air into the drying box.

1.high efficiency, 2.low noise, 3.large air volume.

Product parameters

Model (Width*Length)	KT1.5-6-4	KT2-8-4	KT2-9-4	KT2-10-4	KT2-12-4
Layers	4
Drying area(㎡)	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature(℃)	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m³/H	25m³/H	28m³/H	30m³/H	36m³/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

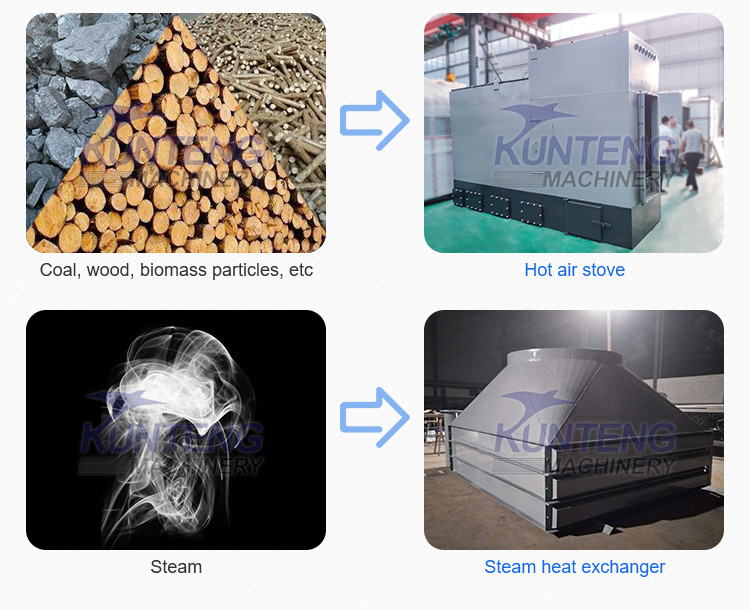

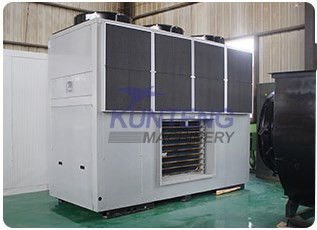

Mesh Belt Dryer Heat Source

The heat source:

The heat source of the Mesh belt conveyor band dryer, sea food fish dryer, seaweed drying machine can be electric, coal, natural gas, diesel oil,wood, biomass particles, etc.

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.

FAQ

1. who are we?

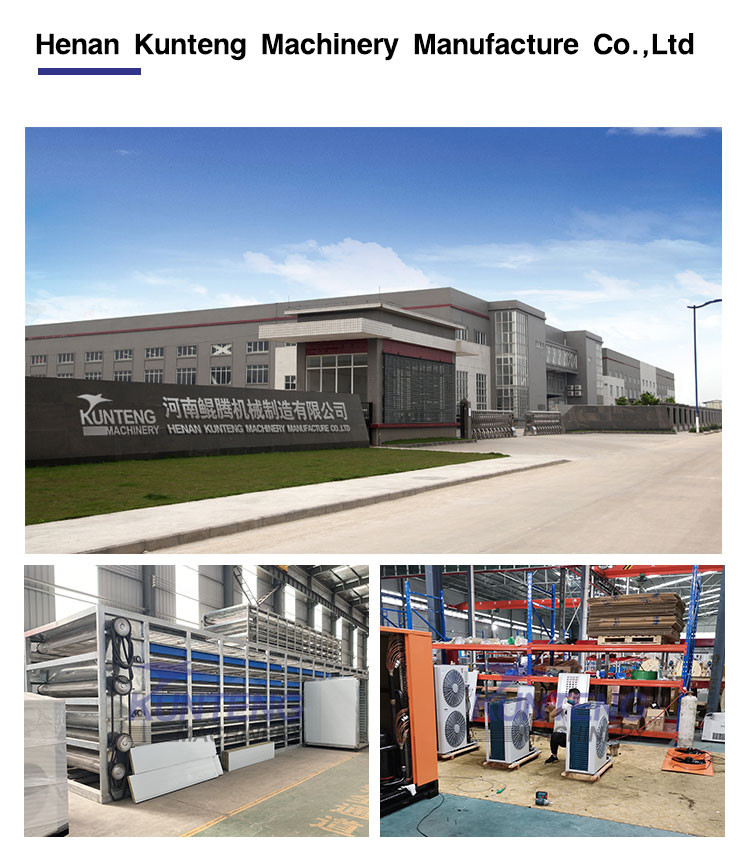

We are a professional manufacturer in China, passed Alibaba field certification.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time??

We will arrange for shipping in factory within 15 working days after receiving the advance payment.
